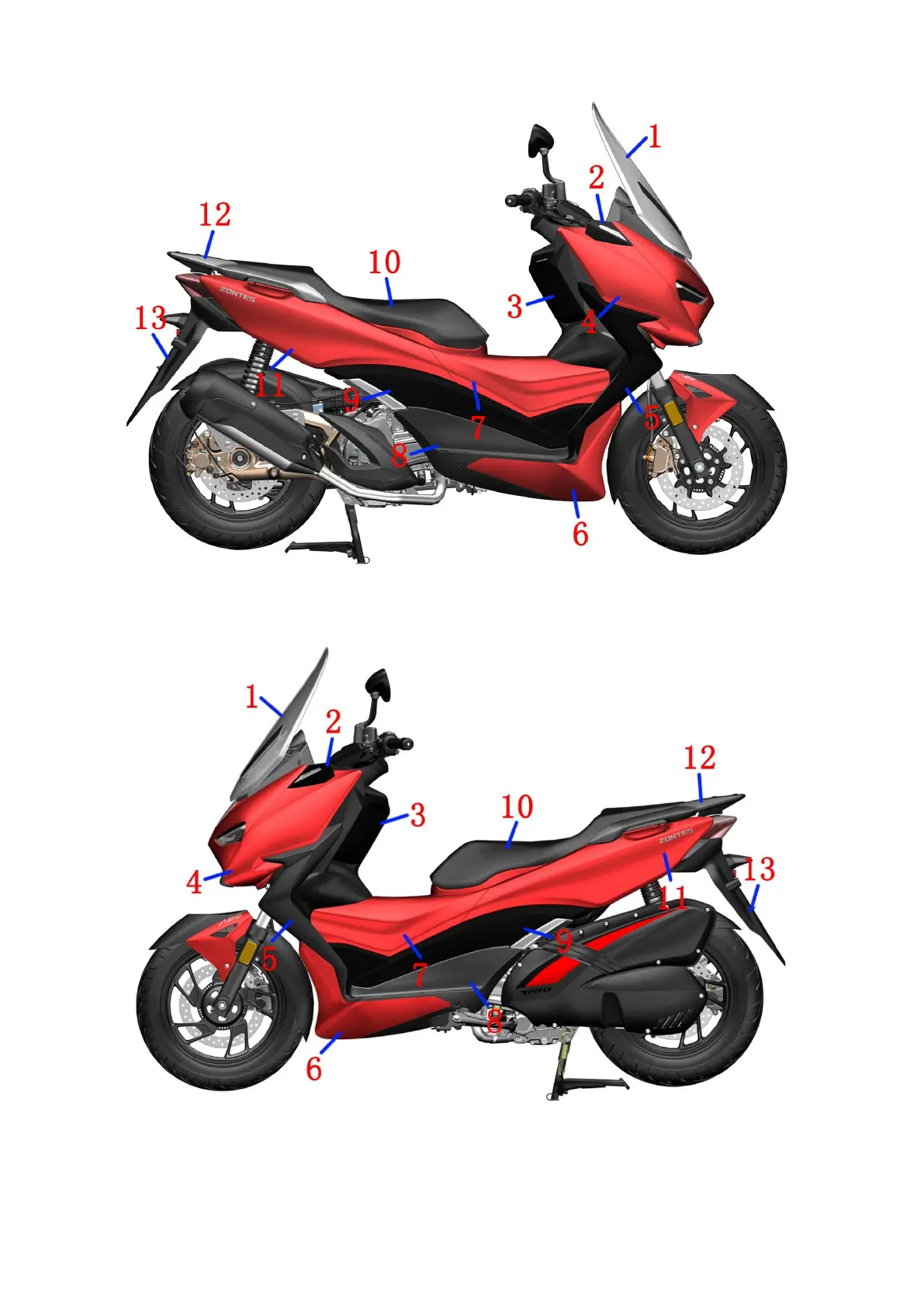

12. Disassembly and assembly of vehicle covering parts

1. Windshield 2.Right front turn light 3. Right cover front storage box 4. Front right panel 5. Front storage box panel

right decorative cover 6. Right pedal decorative cover 7.Right fuel tank cover plate 8. Right pedal 9. Right side cover

10. Cushion 11. Tail skirt right part 12. Rear rack 13. Rear mudguard

1. Windshield 2.Left front turn light 3. Left cover front storage box 4. Front left panel 5. Front storage box panel left

decorative cover 6. Left pedal decorative cover 7.Left fuel tank cover plate 8. Left pedal 9. Left side cover 10. Cushion

11. Tail skirt left part 12. Rear rack 13. Rear mudguard
