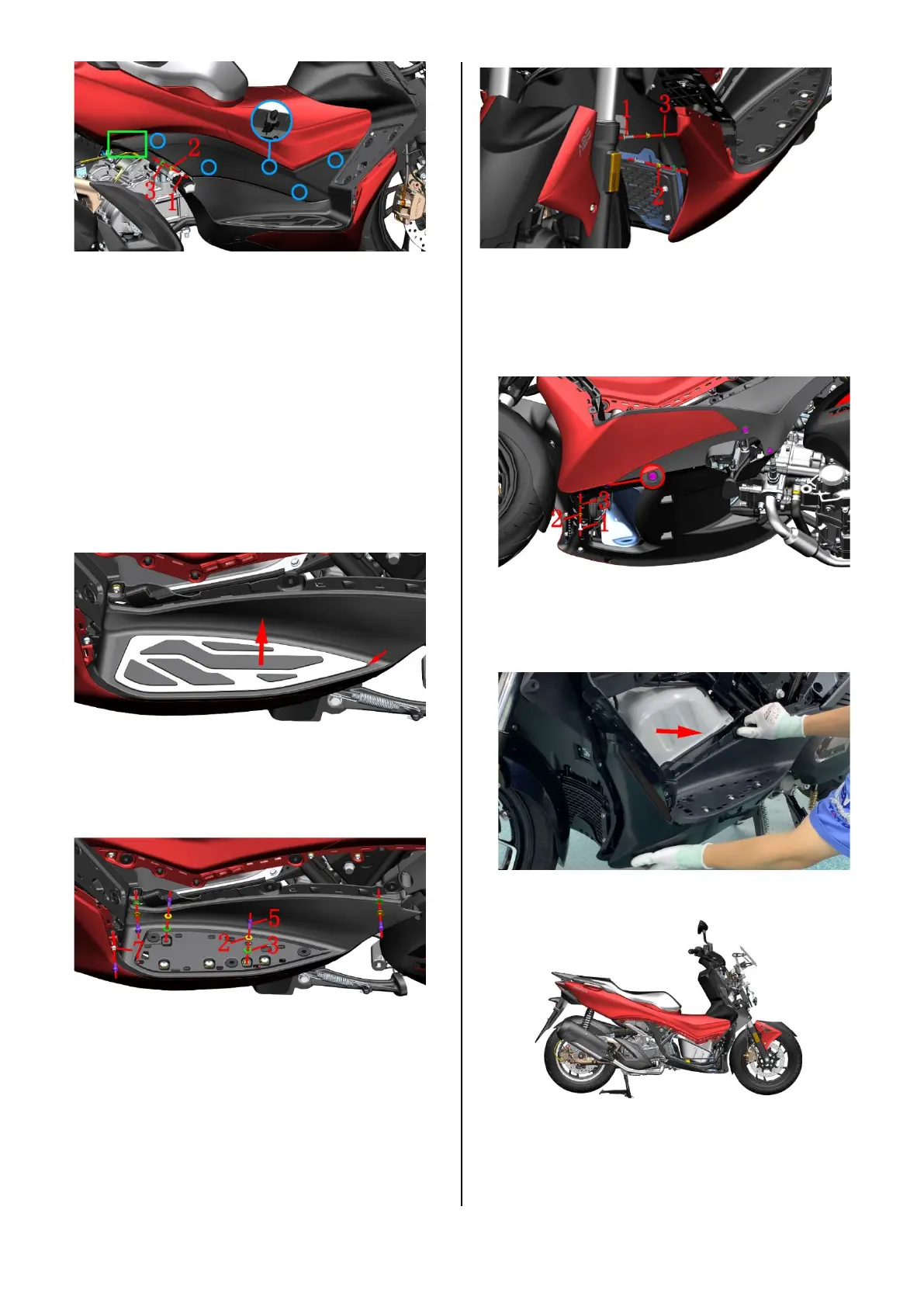

Disassembly of the foot pedals and
trim cover
a. Protrude the rear pedal rubber pad and rear pedal
rubber pad pressure plate from the position indicated by
the small arrow with the Slot-type Screwdrivers. Pull the
rear pedal rubber pad and rear pedal rubber pad
pressure plate upward in the direction of the big arrow
until the rear pedal rubber pad and rear pedal rubber
pad pressure plate are removed. Caution: Use a tool
such as non-woven cloth to wrap the Slot-type
Screwdrivers when using it to prevent scratches on the
paint surface.
b. Remove 5 non-standard M6x16 bolts⑸ on the left
pedal with 5# inner hexagon, and remove bushing⑵and
buffer glue⑶.Caution: one of them is only with bushing,
without buffer glue.
c. Remove the two M6x16 boltsâ‘´ of the left pedal
decorative cover with 4# inner hexagon and take out the
bushing ⑵and buffer glue⑶.
d. Remove an M6x16 boltâ‘´ from the bottom plate
and the decorative cover of the left pedal with a 4# inner
hexagon, and remove the bushing⑵and buffer glue⑶;
then remove the 1 nail of the left pedal decorative cover
and 2 nails of the bottom plate
e. Hold the left pedal decorative cover and the left
pedal with two hands and take out the left pedal
decorative cover and the left pedal in the direction of the
arrow.
f. Remove the right pedal trim cover and the right
pedal in the same way.
Removal of the surrounding middle
part
Use 4# inner hexagon to remove the two M6×12 bolts
â‘· connecting surround middle part and the front
