23 / 184

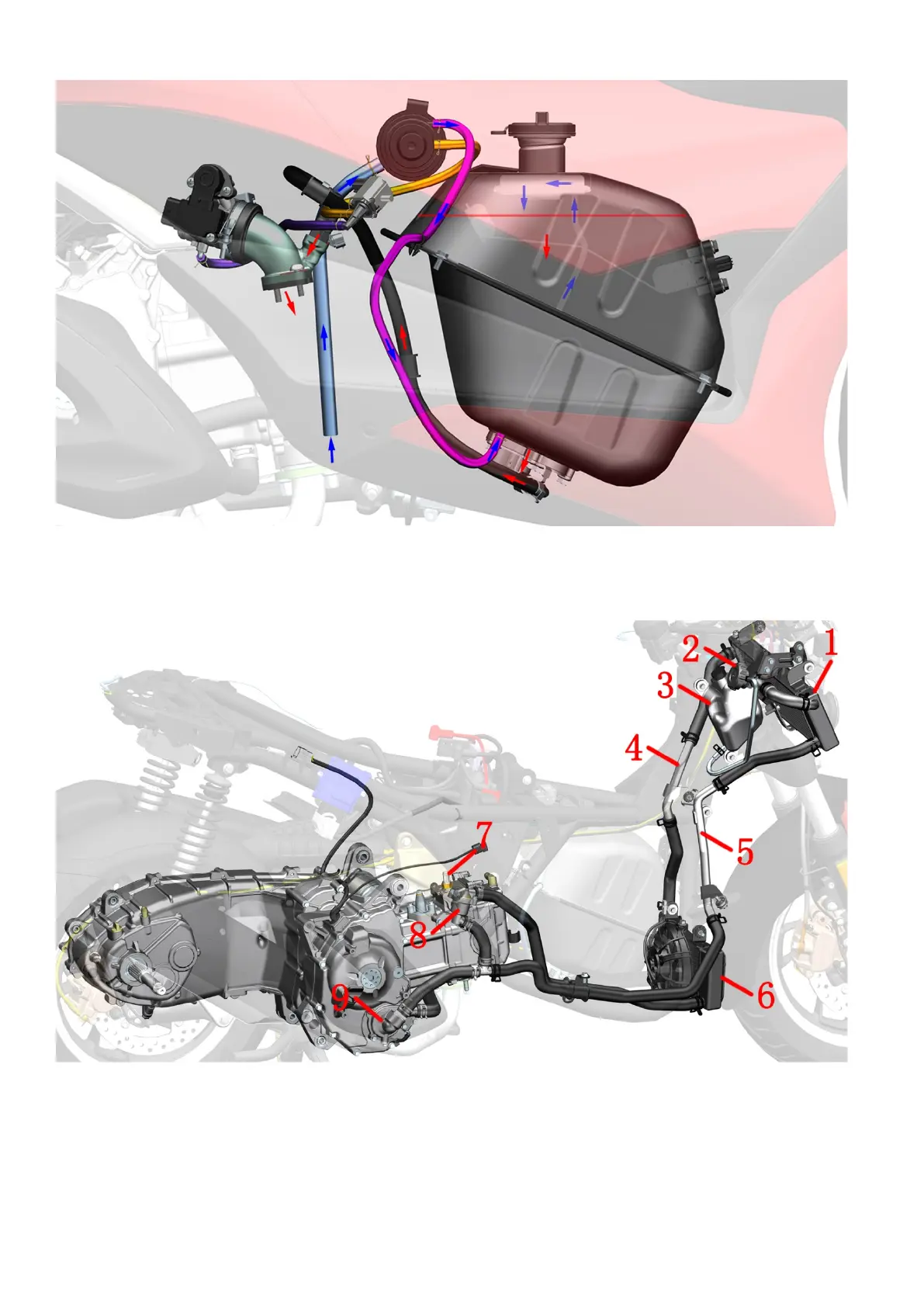

6.2 Fuel supply
Fuel supply system:
Air→Carbon canister→Adsorption/vent pipe→Oil separator (inside the oil tank)
Fuel → Fuel pump filter screen → Fuel pump → High pressure fuel pipe → Fuel injector → Cylinder
7. Distribution map of cooling system accessories
1- Main water tank 2- Water tank filling port 3- Secondary water tank 4- Aluminum water inlet pipe 5- Aluminum water
outlet pipe 6- Small water tank 7- Water and oil shared sensor 8- Thermostat 9- Water pump cover assembly
