Zontes ZT310T-M User Manual

143 / 184

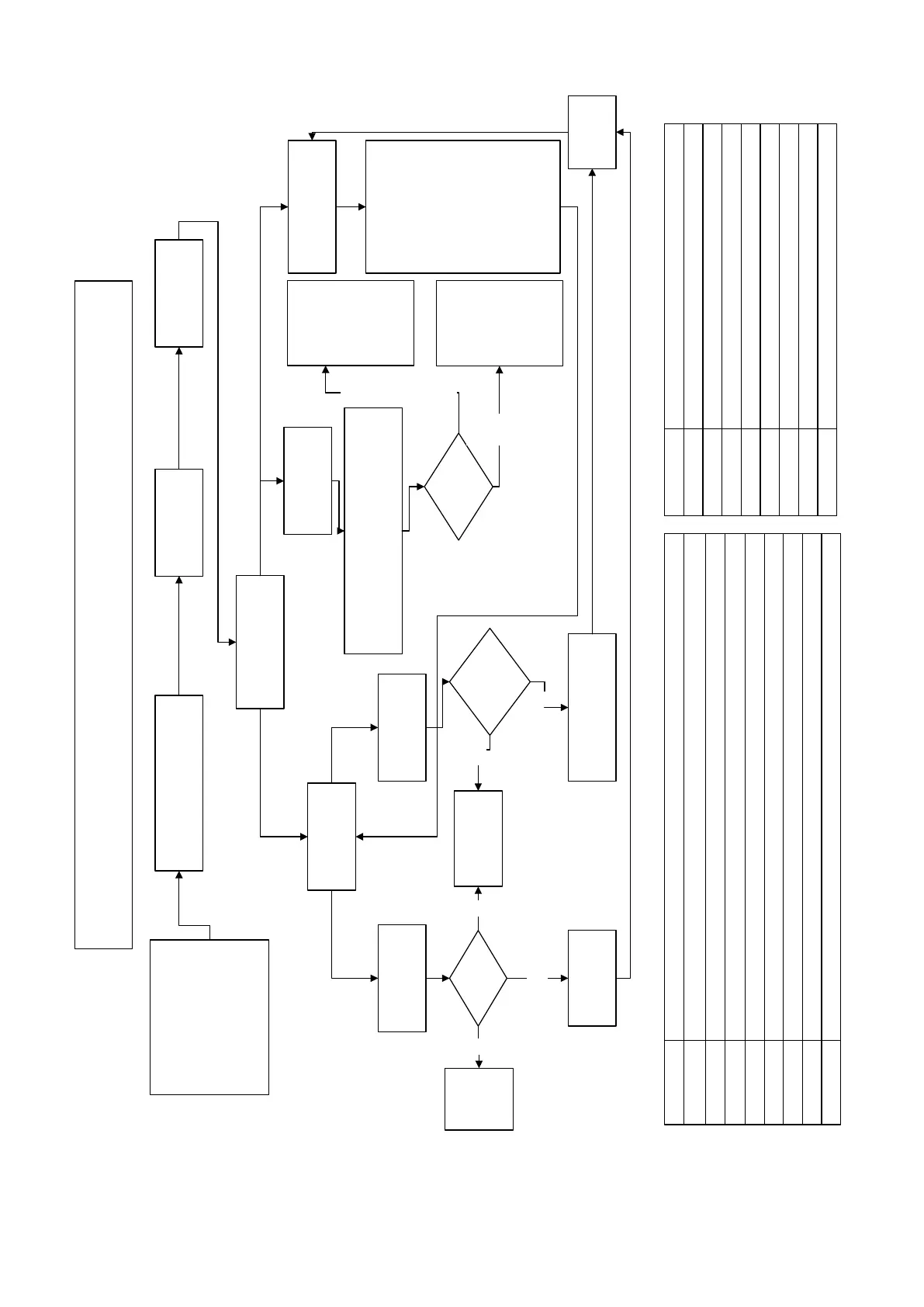

Troubleshooting process with portable ABS diagnostic scanner
No
The vehicle is electrified and
enters diagrnostic mode
Select "Diagnosis"
Read
his torical
error
codes
Trouble shooting process with portable ABS diagnostic scanner
Read current error
code
Open the right storage box
cover and remove the right
storage box cover. Connect
the diagnostic instrument
through OBDⅡ interface
No
Error Code
Is there an
error code?
Press ENTER to
enter, view the
error code
There exists
error code
Press “ENTER” to
enter, view the error code
Yes
Yes
ABS control
system is
normal
Choose "TAYO
Motorcycle"
Select "BOSCH ABS"
Select "Read
Trouble Code"
Read historical
error codes
No
Select "Clear Trouble
Code"
Select "Data
Analysis"
Push the motorcycle, check the wheel speed
of the front and rear wheels with a
diagnostic instrument
wheel speed
dis play
No front wheel speed
Check
whether the
front wheel
sensor is
damaged or
the connector
is loose
No rear
wheel speed
Check
whether the
rear wheel
sensor is
damaged or
the connector
is loose
Unplug the diagnostic
device, res tart the
power supply of the
vehicle, ride normally
and use the brakes (the
maximum speed
should preferably
exceed 100km/h
(62mph), no need to
brake at the maximum
speed)
5043H 5042H 5045H
5044H 5025H 5052H 5053H
5223
Explanation
Front wheel speed sensor disconnected/ground short circuit/power supply short circuit Front wheel speed sensor failure---unstable signal Rear wheel speed sensor disconnected/ground short circuit/power supply short circuit The rear wheel speed sensor is faulty---the signal is unstable There is a deviation in front and rear wheel speeds Power supply failure (low voltage) Power supply failure EEPROM is out of range
Error Code
5017H 5018H 5013H 5014H 5035H 5019H 5055H 5122H
Explanation
Front wheel inlet valve (EV valve) failure Front wheel drain valve (AV valve) failure Rear wheel inlet valve (EV valve) failure Rear wheel drain valve (AV valve) failure Motor failure Valve relay failure (relay that guarantees fail-safety) ECU failure EEPROM read failure
Record
error code
