Cable/cable/pipe/electrical device distribution map

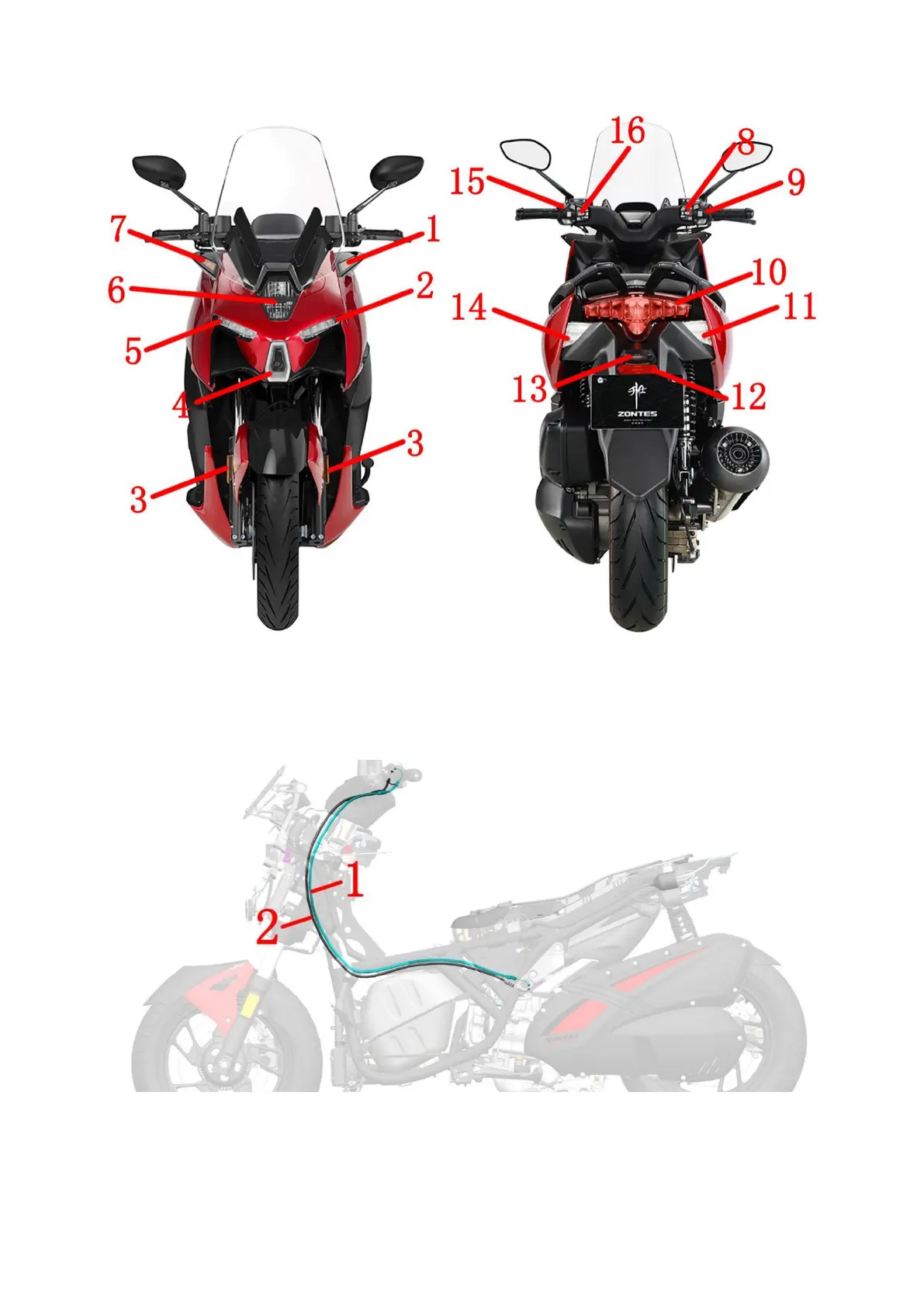

1. Distribution map of lamps and lanterns
1-Left front turn signal 2-Left daytime running light 3-Side reflector 4-Position light 5-Right daytime running light 6-
Headlight 7-Right front turn signal 8-Right-hand handle auxiliary switch 9-Right-hand handle switch 10-Rear tail
light/system Moving lamp 11-Rear right turn signal 12-Rear reflector 13-License plate lamp 14-Left rear turn signal 15-
Left handle switch 16-Left handle assistant switch
2. Throttle cable
1-
Oil return line 2- Fuel line
