61 / 184
Braking System
Caution:
●For the layout of the brake hose on the vehicle, please refer to the brake system accessories distribution diagram in
the "Vehicle Information" chapter of this manual.

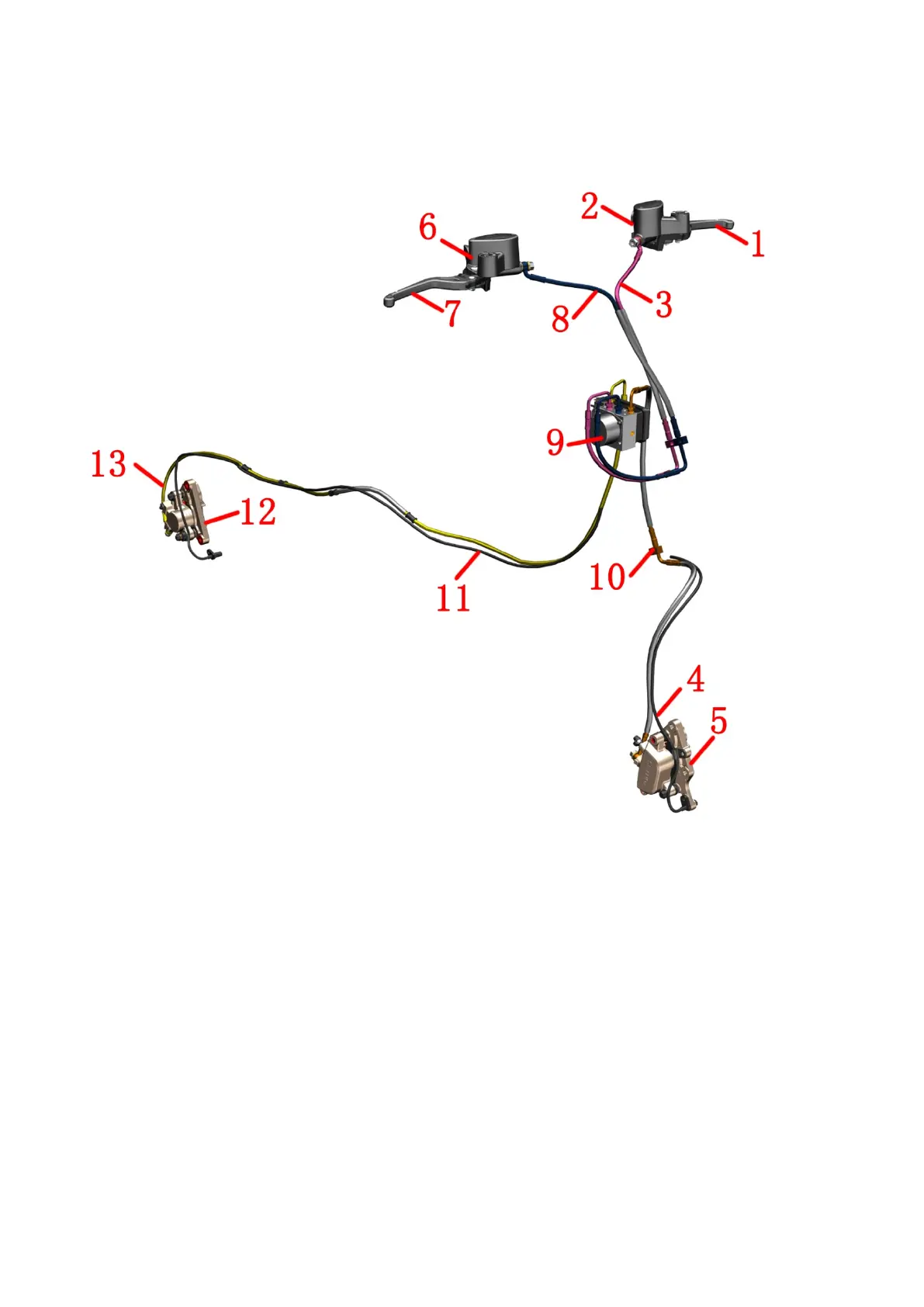

Braking system component diagram:
1- rear brake handle 2- rear disc brake main pump 3- RMC-HU brake hose 4- wheel speed sensor (front wheel) 5- front
disc brake caliper 6 front disc brake main pump 7- front brake handle
8-FMC-HU brake hose 9-ABS hydraulic control unit 10-FC-HU brake hose 11-wheel speed sensor (rear wheel) 12-rear
disc brake caliper 13-RC-HU brake hose
Caution:
In order to facilitate after-sales tracking, those who need to purchase brake hoses, disc brake calipers, disc brake
main pumps, and hydraulic control units must be reviewed by our company before they can be purchased. Domestic
customers can fill in the frame code and engine on the official website before purchasing. Foreign customers need to
contact the corresponding salesperson and fill in the corresponding form before purchasing. The specific process can
be found by the salesperson.
