85 / 184
3.Fuse box
Caution:
●If the fuse is blown, you must replace the fuse of the same specification. It is forbidden to use wires such as copper
or iron wire for direct connection.
●If it is blown after replacement, you need to troubleshoot the entire vehicle cable before replacing it.
●This vehicle uses a small fuse. The width is about 11mm (0.43in), the length is about 17mm (0.67in), and the
thickness is about 4mm(0.16in).
●Use the buzzer file of the multimeter to connect the exposed metal part of the fuse to judge whether it has been
blown, or use a tool to unplug and observe.

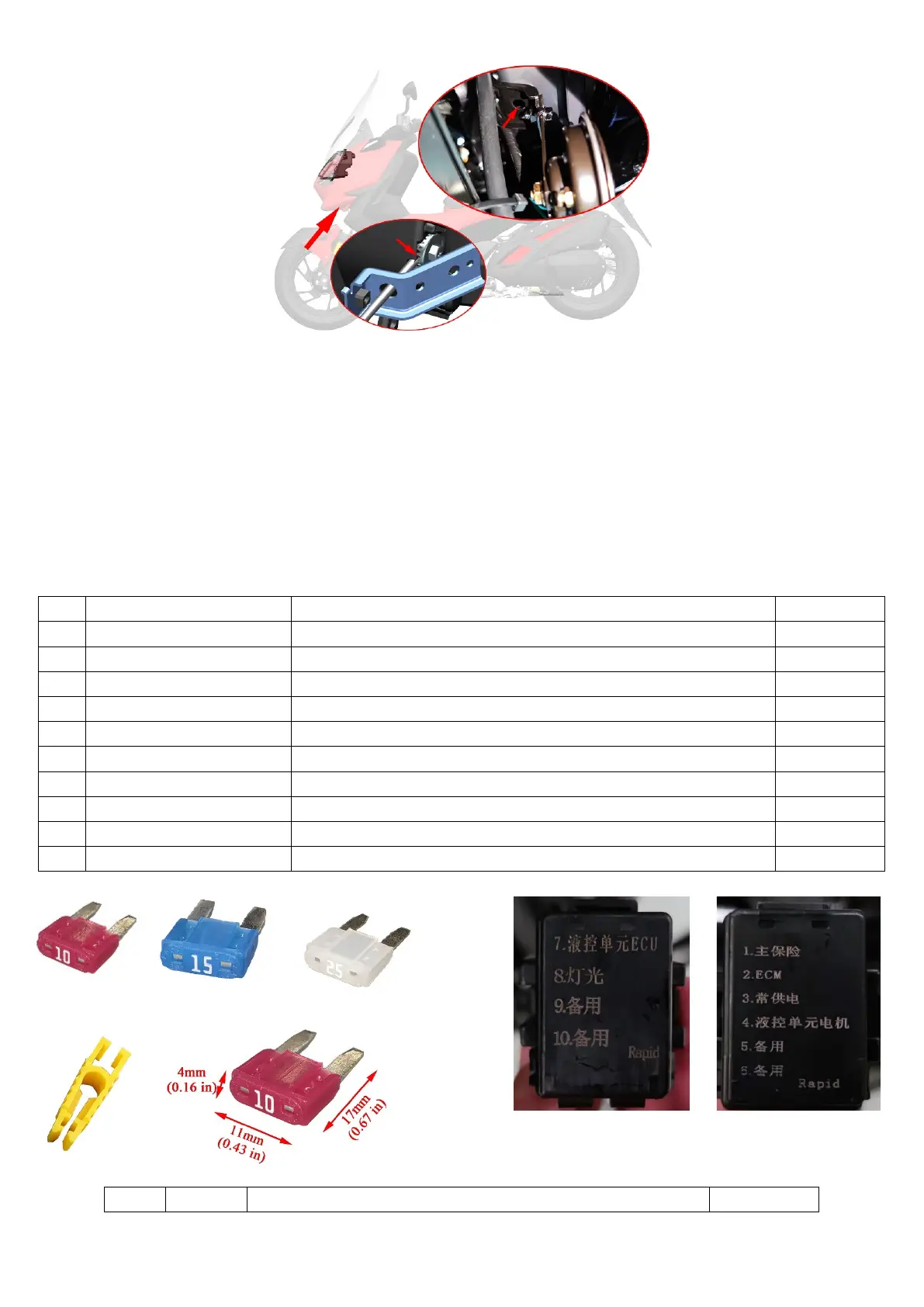

Refer to the previous steps to remove the battery cover and then pull up the fuse box. After opening the fuse box
cover, check whether the fuse is normal.
No. Name Function Specification
① Main insurance Protect all circuits 25A
② ECM Protect ECM, ECM relay, oil pump relay and other electrical devices 15A
③ Regular power supply Protect fans, meters, and anti-theft device connectors 15A
④ Hydraulic control unit motor Protect ABS hydraulic control unit motor 25A
⑤ reserve - 25A
⑥ reserve - 15A
⑦ Hydraulic control unit ECU Protect the hydraulic control unit 10A
⑧ light Protect the headlight 10A
⑨ reserve - 15A
⑩ reserve - 10A
No. Name function Specification
