153 / 184
Change the direction of the handle
Caution:
●When removing the disc brake oil cup, it must be
vertically upward to prevent air from entering the brake
pipeline.
●When disassembling and assembling the handle
switch, pay attention to adjusting the internal wiring
harness of the switch to avoid damage to the wire skin
caused by the shell or bolt column.

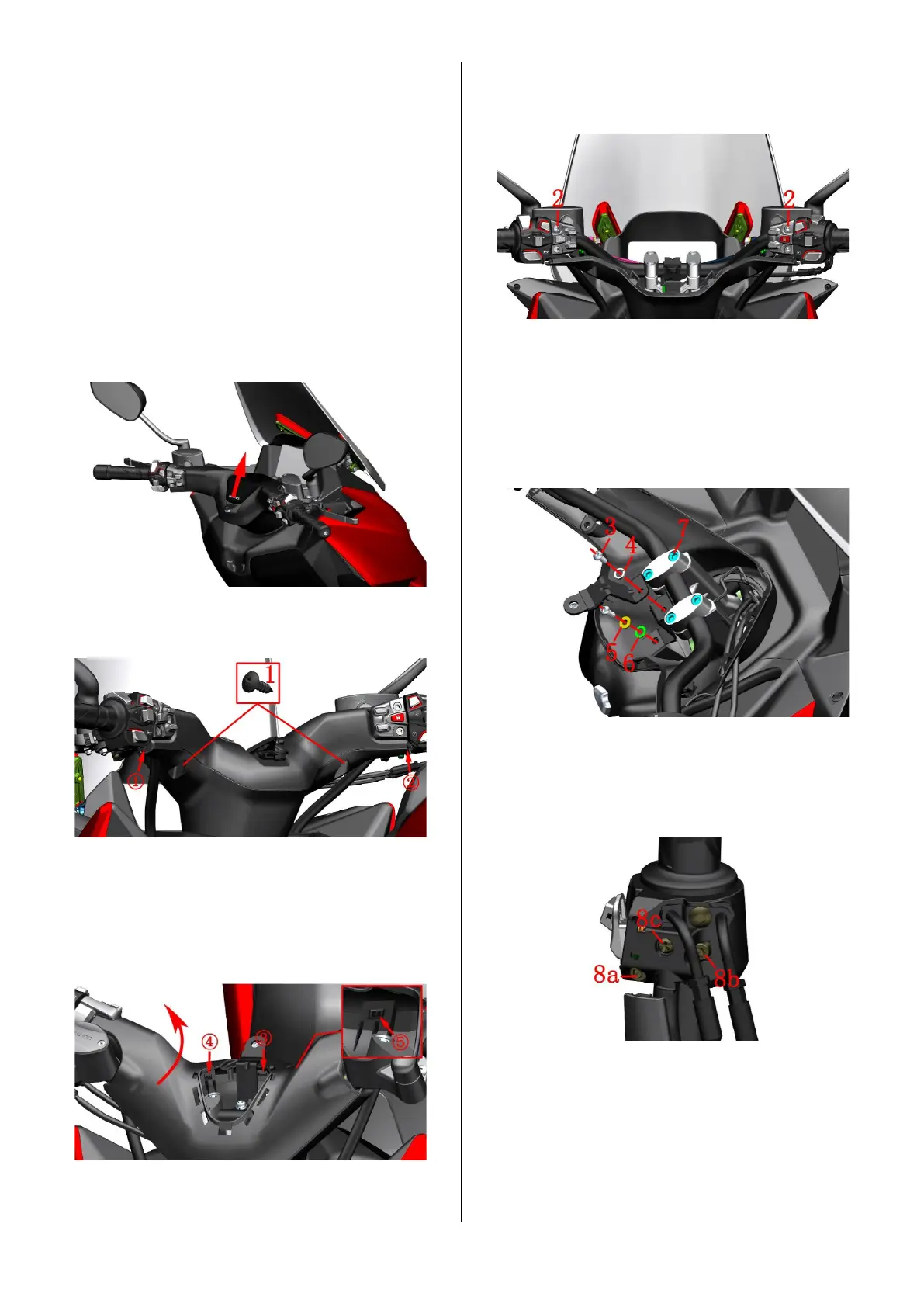

1. Remove the direction of the handle
a. Hold the middle cover in the direction with your
hands, and pull out the middle cover in the direction of
the arrow.
b. Use a cross screw to remove the two self-tapping
screws ⑴ at the lower cover, and use a straight screw
to pry off the buckles at ① and ②.
c. Use a single word batch to pick up the 3 buckles
③, ④, ⑤ of the upper cover from the hole of the
middle cover in the direction, grasp the direction near
the side of the seat cushion, and remove the upper
cover ⑶ in the direction of the arrow. The direction of
the upper cover ⑶.
2. Remove the components
a. Use 5# inner hexagon to remove 4 M6×30 bolts ⑵,
and remove the left auxiliary handle switch, the rear disc
brake main pump, the right auxiliary handle switch, and
the front disc brake main pump.
b. Use 5# inner hexagon to remove 1 non-standard
M6×16 bolt ⑶, remove spring washer ⑷, take out the
mobile phone bracket mounting bracket; then use 5#
inner hexagon to remove 1 non-standard M6×16 bolt ⑶,
Take out the bushing ⑸, cushion rubber ⑹; finally use
6# inner hexagon to remove 4 M8×35 bolts ⑺, remove
2 pressure blocks, and take out the direction handle.
c. Use 5# inner hexagon to remove the bolts (8a) and
(8b) that come with the right-hand handle under the
switch, and then use the cross-batch to remove the bolts
(8c), and separate the upper and lower parts of the right-
hand handle.
d. Remove the bolts (9a) and (9b) under the left-hand
handle switch with a 5# inner hexagon, and then remove
the bolts (9c) with a cross-batch, and separate the upper
and lower parts of the left-hand switch.
To Next Page
