Disassembly and assembly of vehicle panel
Caution:
●During disassembly, please pay attention to the force to prevent breaking the buckle.
●When removing the panels, please remove them in strict order. Do not forcibly remove the panels to prevent
irreparable damage to the corresponding panels.
●When unplugging the plug, please control the force and disassembly method. Do not forcibly unplug the plug to
prevent damage to the plug, resulting in poor contact of harness connector and affecting the function of various parts.
●When installing the harness plug, please check whether the harness thimble in the harness male connector is
deformed or misaligned, so as to prevent the harness thimble in the harness male connector from being damaged
during the installation of the harness plug, thereby affecting the function of each part.

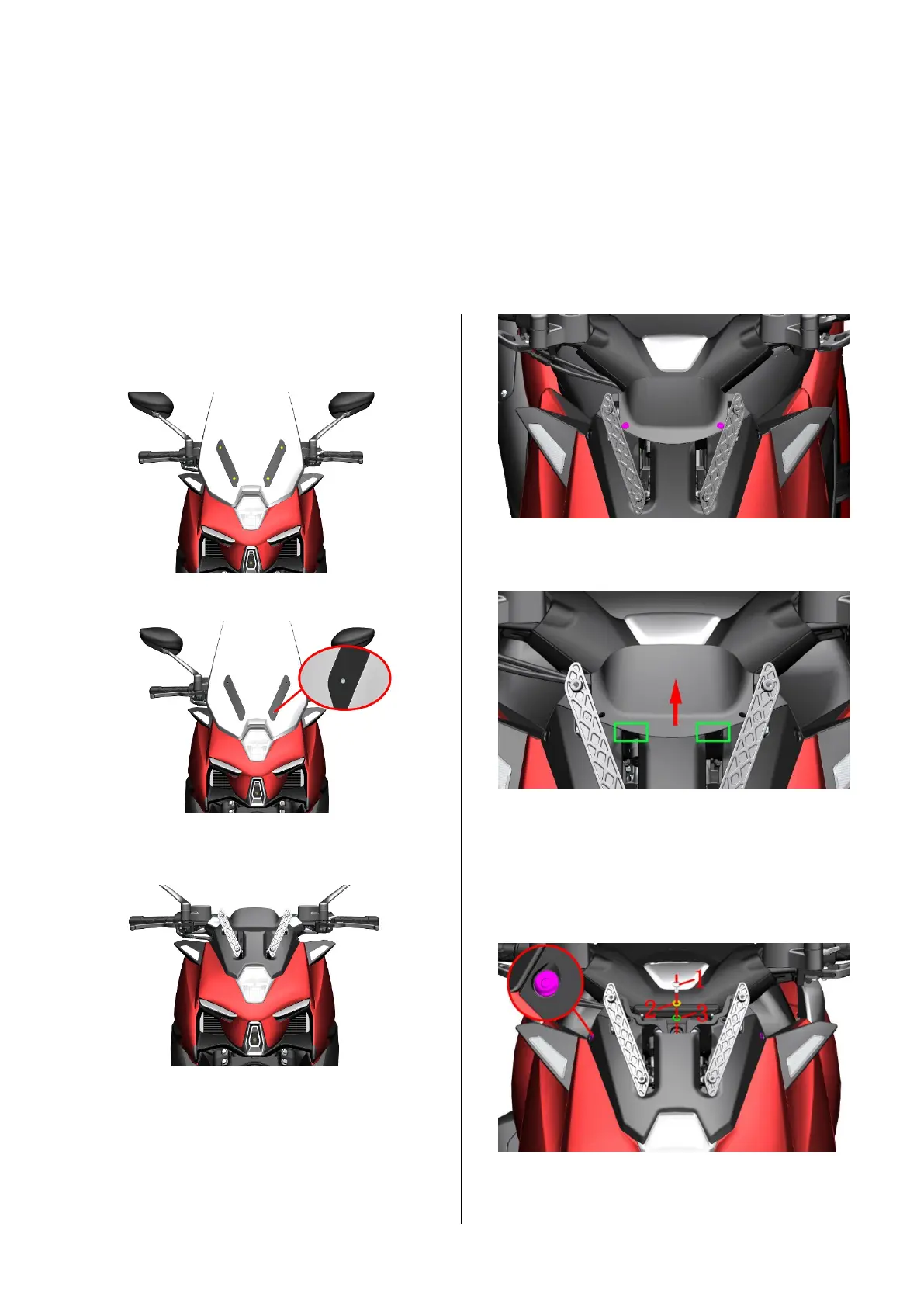

Windshield removal
a. Remove the 4 decorative buckles on the
windshield.
b. Use 4# inner hexagon to loosen the 4 M6×16 bolts
on the left and right decorative covers of the windshield.
c. Take out the left and right decorative covers of the
windshield, the windshield, and the rubber pads of the
windshield bracket in turn.
Removal of the front sun visor
a. Use 4# inner hexagon to remove the 2 expansion
nails on the front sun visor.
b. Hold the mark on the front sun visor (green
rectangle) with your hand, pull it up in the direction of
the arrow, and take out the front sun visor.
Removal of the front cover
a. Use 4# inner hexagon to remove one M6×16 bolt
⑴ on the front cover, and take out the bush ⑵ and the
cushion rubber ⑶. Then use 4# inner hexagon to
remove the 2 expansion nails on both sides of the front
cover.
b. Raise the windshield rocker arm to the highest
position, then grab the mark on the front cover (green
rectangle) with your hand, and pull it up in the direction
