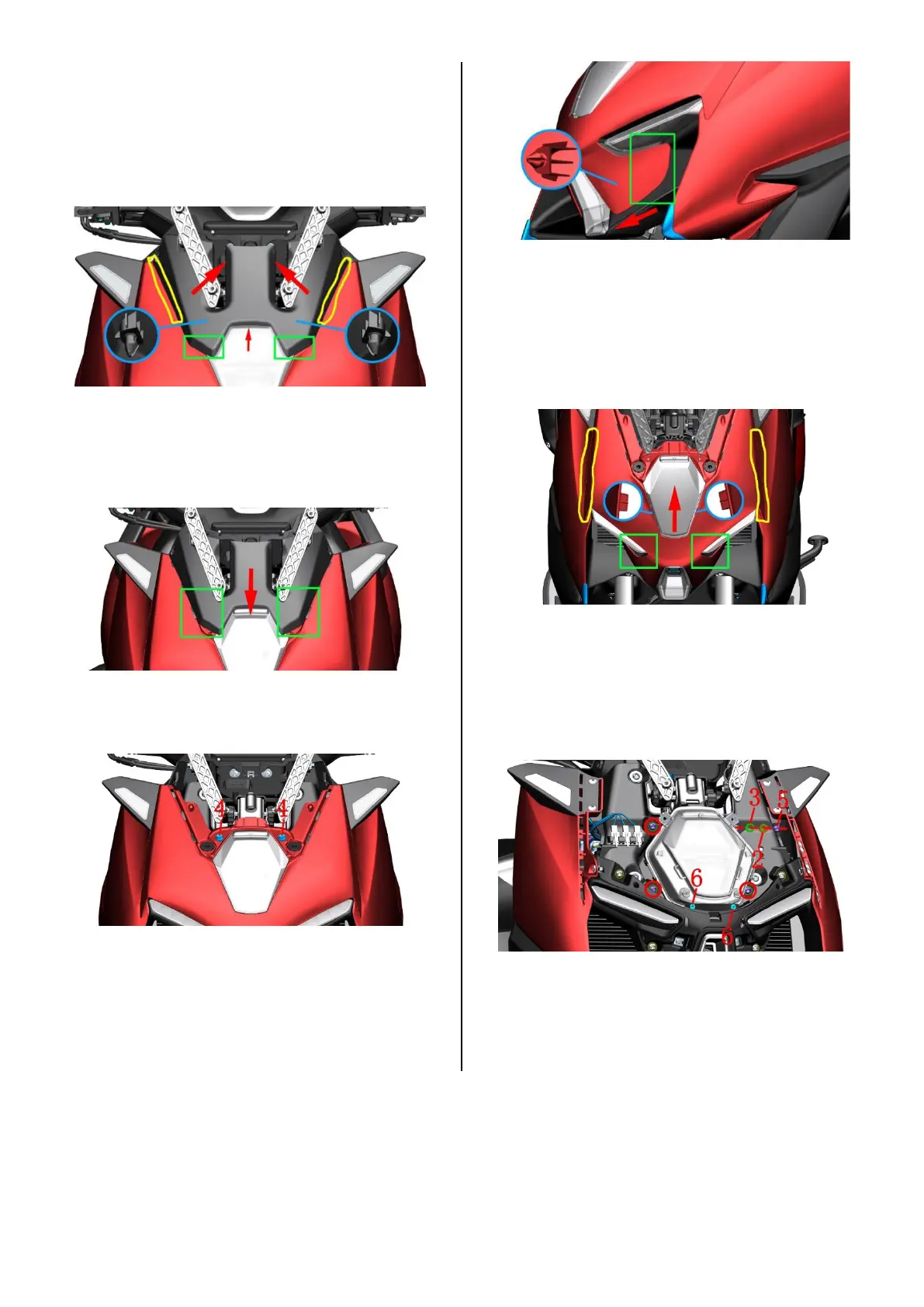

of the small arrow; pull out the two mushroom buttons
(blue circles) on the front cover After exiting; continue to
grasp the mark on the front cover (green rectangle) and
pull it diagonally upward according to the big arrow until
the 6 buckles on both sides of the front cover (yellow
area, 3 on the left and right) are all pulled out.
c. After pulling out all the buckles, grasp the mark on
the front cover (green rectangle) with your hand, and
pull it down in the direction of the arrow until the front
cover is removed.
Removal of the front panel
a. Use 4# inner hexagon to remove the two M6×12
bolts â‘· on the front panel.
b. Grasp the mark on the front front cover (green box)
with your hands, and pull out according to the arrow
until the mushroom head (blue circle) on the right side of
the front front cover is pulled out; use the same method
to remove it The mushroom head on the left side of the
front front cover.
c. Grasp the mark on the front cover (green rectangle)
with your hands, and pull it up in the direction of the
arrow until the two positioning buckles (blue circles) of
the front front cover and both sides of the front front
cover are fixed. (Yellow area, 6 locations on the left and
right), pull out the 12 buckles, and remove the front
cover.
Disassembly of headlights
a. Use the 5# inner hexagon to remove the 4 non-
standard M6×16 bolts ⑸ around the headlight (red
circle), remove the bushing ⑵ and the cushion rubber
⑶; use a cross to remove the 2 fixed headlight self-
tapping Nail ⑹.
b. Hold the headlight with one hand and take it out for
a certain distance, pull out the 3P plug (green and white
wire) behind the headlight with the other hand, and take
out the headlight completely.
