6. Oil supply system
6.1 Fuel evaporation

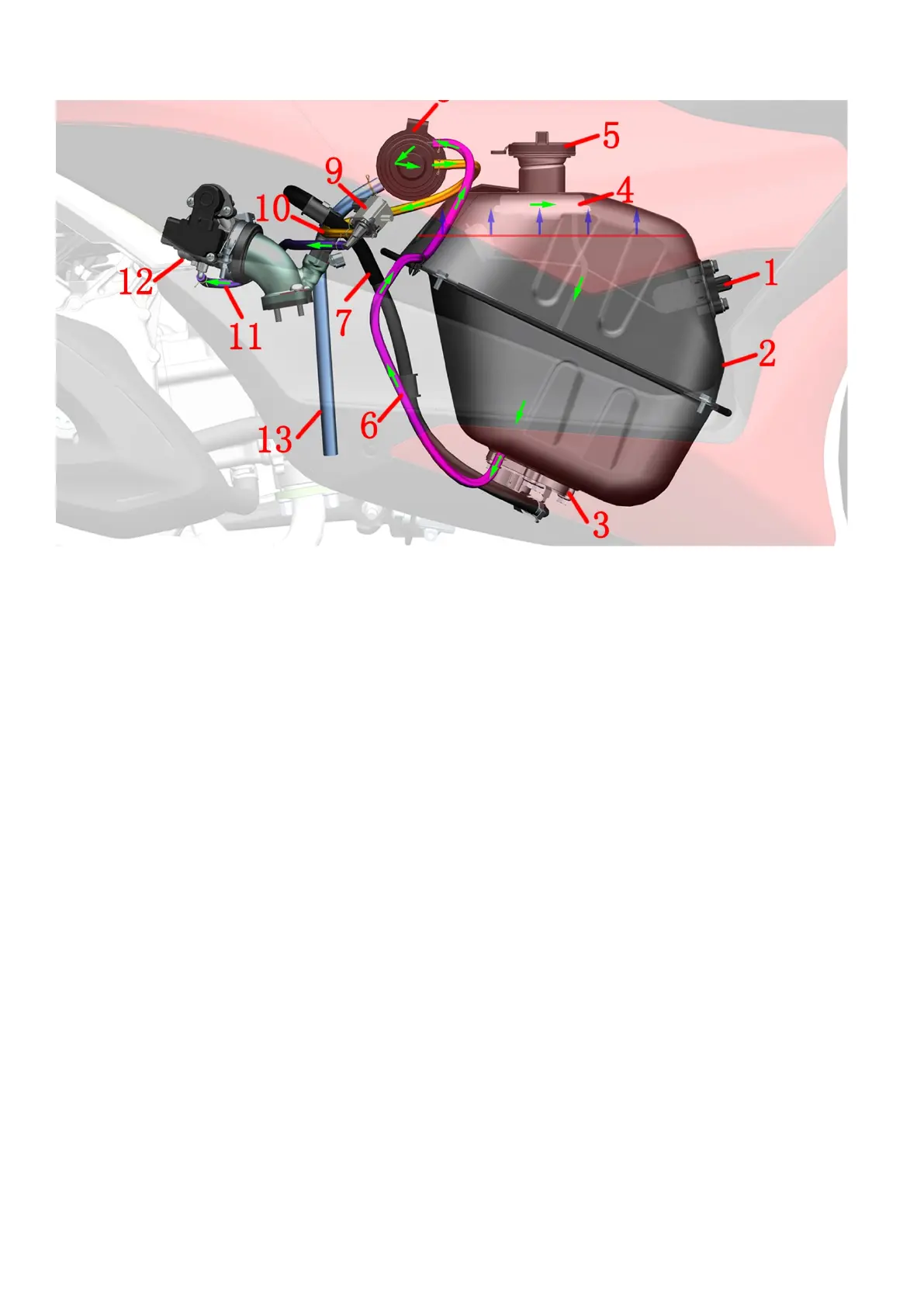

1- Fuel level sensor 2- Fuel tank 3- Fuel pump 4- Oil-air separator (welded inside the fuel tank) 5- Fuel tank cap 6-
Adsorption/vent pipe 7-High pressure fuel pipe 8-Carbon tank 9-Carbon tank solenoid valve 10- Solenoid valve intake
pipe 11-solenoid valve outlet pipe 12-throttle valve body assembly 13-intake pipe
Caution:
The carbon canister assembly includes a carbon canister 8, an adsorption/vent pipe 6, a solenoid valve intake pipe
10, a solenoid valve outlet pipe 11 and a vent/leakage pipe 13. The carbon canister components are sold as a
complete set and are sold separately without being disassembled. If the vent tube is damaged, you can purchase a
reliable and weather-resistant hose with the same or similar inner and outer diameters. A small amount of gasoline
that enters the canister after reversing may leak from the pipe 13.
Fuel evaporation:
Oil and gas → oil and gas separator (inside the oil tank) → adsorption/vent pipe → solenoid valve intake pipe →
solenoid valve outlet pipe → throttle valve body assembly → intake manifold → cylinder
