ABB ACS355 series User Manual

Actual signals and parameters 223
2006 UNDERVOLT
CTRL
Activates or deactivates the undervoltage control of the
intermediate DC link.
If the DC voltage drops due to input power cut off, the
undervoltage controller will automatically decrease the
motor speed in order to keep the voltage above the lower
limit. By decreasing the motor speed, the inertia of the load
will cause regeneration back into the drive, keeping the DC
link charged and preventing an undervoltage trip until the
motor coasts to stop. This will act as a power-loss ride-
through functionality in systems with a high inertia, such as
a centrifuge or a fan. See section Motor identification on
page 137.
ENABLE(
TIME)
DISABLE Undervoltage control deactivated 0
ENABLE(TIME) Undervoltage control activated. After being in undervoltage
control for 500 ms the drive faults and stops using an
emergency ramp.
1
ENABLE Undervoltage control activated. No operation time limit. 2
2007 MINIMUM
FREQ

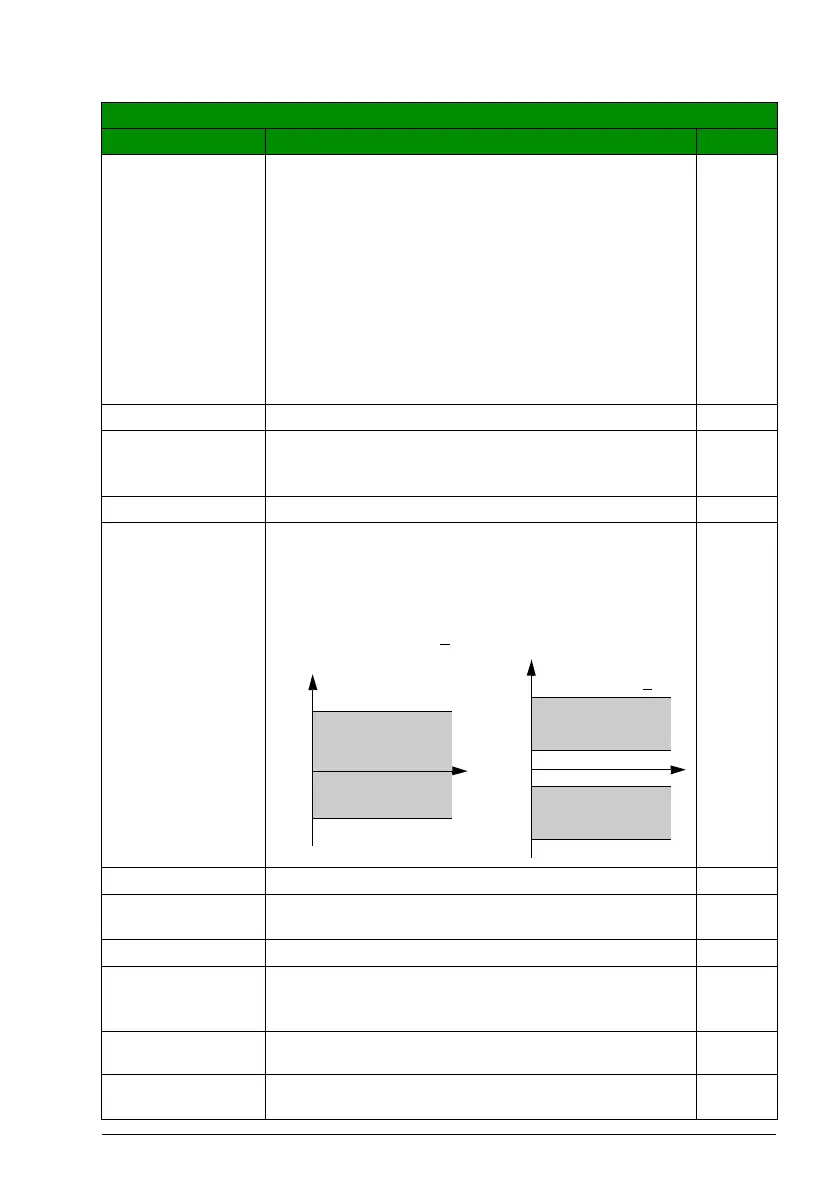

Defines the minimum limit for the drive output frequency.
A positive (or zero) minimum frequency value defines two
ranges, one positive and one negative.
A negative minimum frequency value defines one speed
range.
Note: MINIMUM FREQ <
MAXIMUM FREQ.
0.0 Hz
-599.0…599.0Hz Minimum frequency 1 = 0.1 Hz
2008 MAXIMUM
FREQ
Defines the maximum limit for the drive output frequency. E: 50.0 Hz
U: 60.0 Hz
0.0…599.0 Hz Maximum frequency 1 = 0.1 Hz
2013 MIN TORQUE
SEL
Selects the minimum torque limit for the drive. MIN
TORQUE
1
MIN TORQUE
1
Value defined by parameter 2015 MIN TORQUE 1 0
DI1 Digital input DI1. 0 = parameter 2015 MIN TORQUE 1
value. 1 = parameter 2016 MIN TORQUE 2 value.
1
All parameters
No. Name/Value Description Def/FbEq
2008
2007
0
f
2008
value is < 0
2007 value is > 0
f
2008
2007
0
-(2007)
-(2008)
t
t
Allowed
frequency range
Allowed
frequency range
Allowed
frequency range

ABB ACS355 series Specifications

General

Power Range	0.37 to 22 kW
Protection Class	IP20
Output Frequency	0 to 500 Hz
Braking Chopper	Built-in
Control Method	Scalar control, Vector control
Ambient Temperature	-10 to +50 °C
Communication Protocols	Modbus, CANopen
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Cooling Method	Air-cooled
Number of Phases	3-phase

Summary

Safety

Safety in Installation and Maintenance

Warnings intended for all who work on the drive, motor cable, or motor.

Electrical Safety

Instructions regarding hazards from electricity that can cause physical injury or death.

General Safety

General safety precautions to prevent physical injury or damage to equipment.

Safe Start-up and Operation

Warnings for all who plan, start up, or operate the drive.

Mechanical Installation

Installing the Drive

Provides instructions for installing the drive with screws or on a DIN rail.

Planning the Electrical Installation

Implementing the AC Power Line Connection

Details requirements for connecting the drive to the AC power line.

Selecting the Supply Disconnecting Device

Checking the Compatibility of the Motor and Drive

Guidance on checking motor and drive compatibility based on rating tables.

Selecting the Power Cables

General rules and guidelines for selecting power cables.

Selecting the Control Cables

Protecting the Drive, Input Power Cable, Motor and Motor Cable

Guidelines for protecting components against short-circuit and thermal overload.

Electrical Installation

Checking the Insulation of the Assembly

Connecting the Power Cables

Provides connection diagrams and procedures for power cables.

Connecting the Control Cables

Details on I/O terminals and connection procedures for control cables.

Installation Checklist

Checking the Installation

A checklist for verifying mechanical and electrical installation before start-up.

Start-up, Control with I/O and ID run

Starting up the Drive

Provides instructions for starting up the drive, including safety warnings.

Performing a Manual Start-up

Step-by-step guide for manual start-up using control panels.

Performing a Guided Start-up

Guides the user through essential start-up tasks using the assistant control panel.

Controlling the Drive through the I/O Interface

Instructions on operating the drive using digital and analog inputs.

Performing the ID run

Details on performing the Identification run for motor characteristics.

Control Panels

Basic Control Panel

Assistant Control Panel

Operation

Explains how to operate the control panel using menus and keys.

How to do common tasks

Lists common tasks and the corresponding modes and page numbers for detailed instructions.

Application Macros

ABB standard macro

Details the default I/O connections for the ABB standard macro.

3-wire macro

PID control macro

Program Features

Start-up Assistant

Guides the user through start-up, helping to enter requested data and check validity.

Local control vs. External control

Explains how the drive receives commands from the control panel or I/O.

Programmable analog inputs

Details the two programmable analog inputs, their inversion, filtering, and scaling.

Programmable digital inputs

Motor identification

Programmable protection functions

Covers functions like AI<Min, Panel loss, External fault, and Stall protection.

Speed controller tuning

Instructions on manually adjusting or automatically tuning the speed controller.

Scalar control

Fault Tracing

Alarm and fault indications

Describes how faults and alarms are indicated and how to identify causes.

How to reset

Fault history

Alarm messages generated by the drive

Lists alarm messages, their causes, and recommended actions.

Alarms generated by the basic control panel

Embedded fieldbus faults

Technical Data

Ratings

Presents technical specifications including input/output currents and power ratings by frame size.

Sizing

Derating

Power cable sizes and fuses

Provides tables for cable dimensioning and fuse types for short-circuit protection.

Dimensions, weights and free space requirements

Ambient conditions

Appendix: Resistor Braking

Planning the Braking System

Selecting the Brake Resistor

Explains how to select the brake resistor using tables and equations.

Protecting the System in Brake Circuit Fault Situations

Appendix: Safe Torque Off (STO)

Description

Explains the Safe Torque Off function for safety and supervision circuits.

Connection Principle

Wiring Examples

Operation Principle

Start-up Including Acceptance Test

Details the validation process and acceptance test requirements for the safety function.

Acceptance Test Procedure

Step-by-step validation process for the Safe Torque Off function.

Use

Safety data

Appendix: Permanent Magnet Synchronous Motors (PMSMs)

Setting the Parameters

Speed Controller Tuning

Recommends tuning the speed controller in vector control mode for PMSMs.
