ALLEN & HEATH SQ-6 Reference Guide

 22
Reference Guide V1.5.0
Tie lines allow you to pass audio directly from any available input source to one or
multiple outputs and have many applications including:
• Sending unprocessed (post socket analogue preamp) audio whilst simultaneously
sending processed audio from the direct out (such as when multitrack recording
and using a ME personal monitoring system at the same time).
• Setting up digital splits for front of house and monitor or broadcast setups.
• Sending an ambient microphone (not required in any mix) to USB or option card
for recording without using up an input channel.
 To protect preamp settings for sockets not assigned to input channels on scene
changes, block ‘Tie Line Only Preamps’ in Global or Scene recall filters.

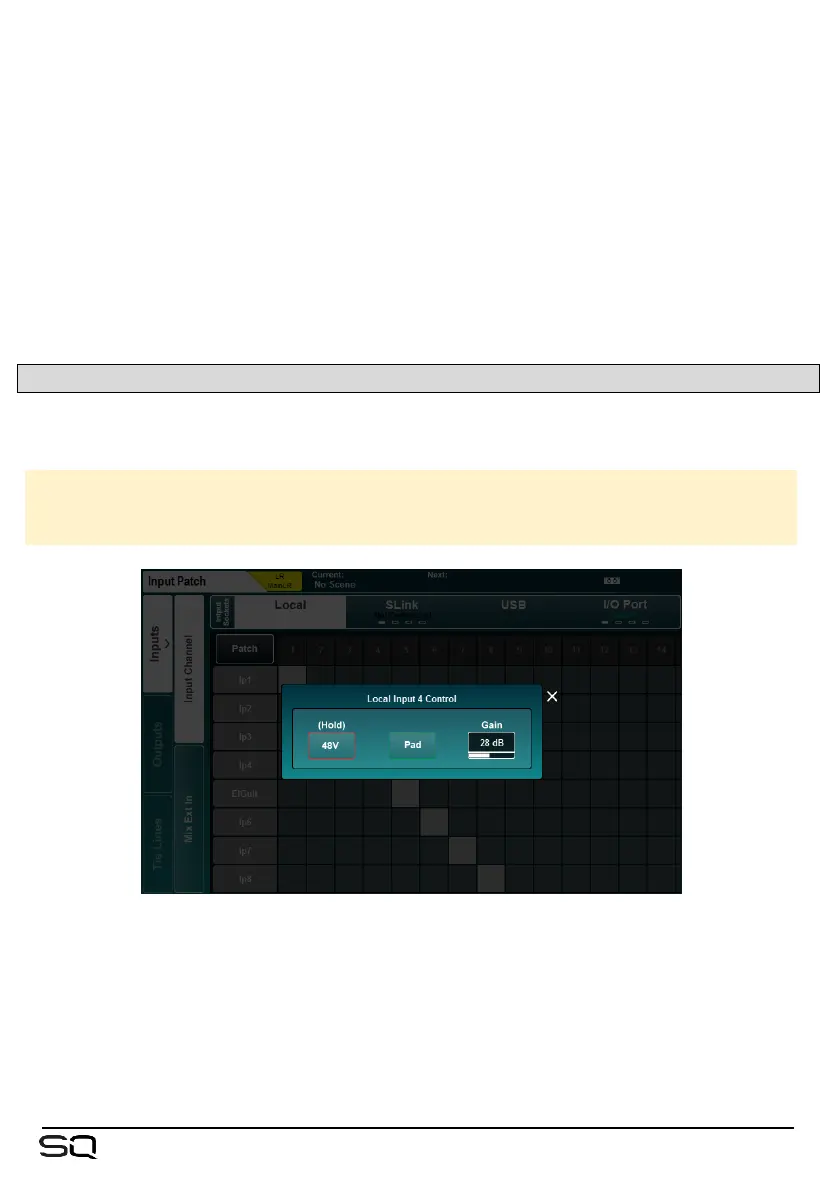

6.8 Socket Control
Touching a socket number at the top of the patching matrix opens the socket control
pop-up with the following options for connected local or expander sockets.
Analogue input = 48V, Pad and Gain
AES input = SRC Bypass option
AES output = Output Sample Rate

ALLEN & HEATH SQ-6 Specifications

General

Channels quantity	48 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
DJ mixer	-
Product color	Black
Output impedance	75 Ω
MIDI out	Yes
RJ-45 ports quantity	1
Power consumption (typical)	- W

Weight and Dimensions

Depth	514.9 mm
Width	638 mm
Height	198 mm
Weight	14500 g
Package depth	680 mm
Package width	820 mm
Package height	360 mm
Package weight	17300 g
