7.3 HPF (Input Channels)
HPF –
A High Pass Filter (HPF) is available on every input channel and features an
adjustable slope and frequency.
• Switch in or out using the on-screen button or using the dedicated HPF ‘In’ key.
• Touch the HPF Frequency value to select it, then adjust using the touchscreen
rotary, or use the dedicated HPF ‘Freq’ rotary to affect the selected input channel.
• Touch the current ‘Slope’ value to select from different filter slopes.
HPF Frequency = 20Hz to 2Khz
Slope = 12dB, 18dB, 24dB (attenuation per octave) Butterworth
 The HPF is also visible on the PEQ processing screen for convenience and can be
stored and recalled with PEQ settings. Though as a separate process at a different point
in the signal path, HPF does not contribute to the PEQ response curve.

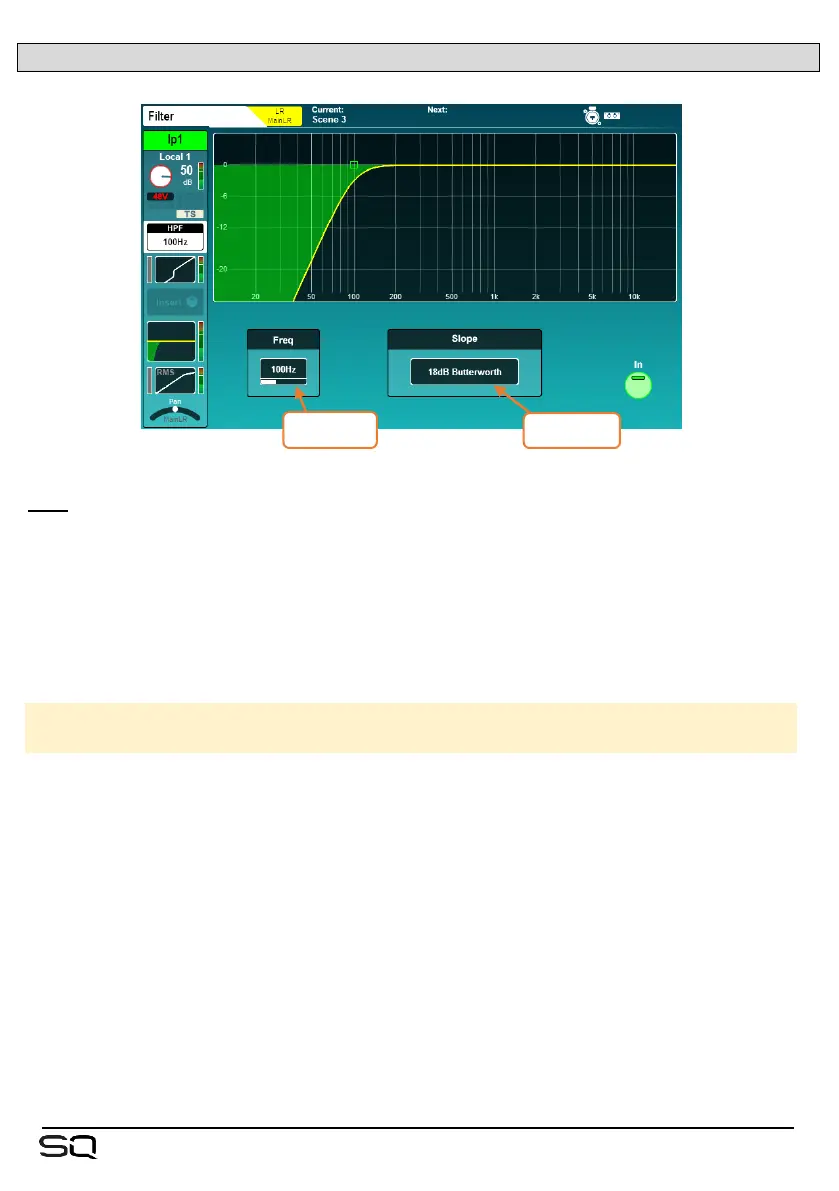

frequency
filter slope

ALLEN & HEATH SQ-6 Specifications

General

Channels quantity	48 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
DJ mixer	-
Product color	Black
Output impedance	75 Ω
MIDI out	Yes
RJ-45 ports quantity	1
Power consumption (typical)	- W

Weight and Dimensions

Depth	514.9 mm
Width	638 mm
Height	198 mm
Weight	14500 g
Package depth	680 mm
Package width	820 mm
Package height	360 mm
Package weight	17300 g
