RTA – PEQ Screen –

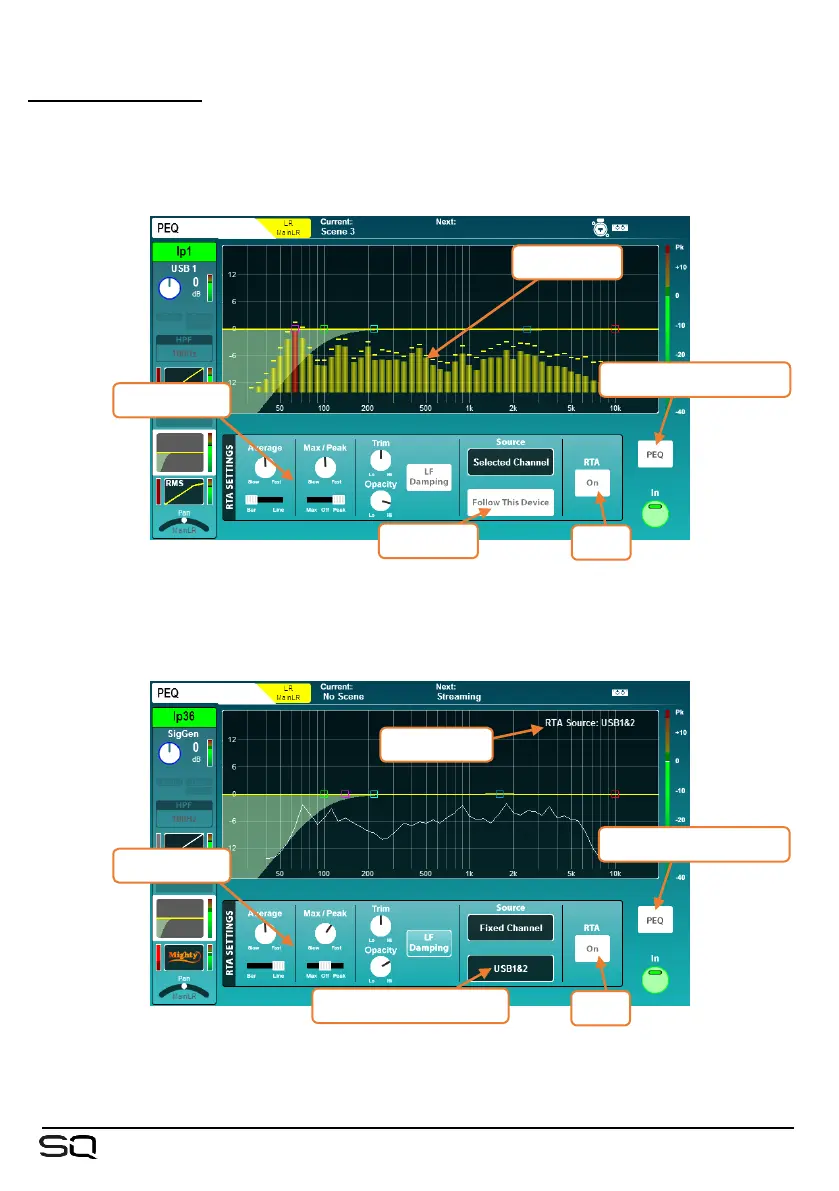

The 61 band PEQ RTA uses automatic gain control (pre-trim) to display useful relative
levels of frequencies on the PEQ graph. By default, it is sourced from the selected
channel and is shown on all input and mix channels.
The average meters for the PEQ RTA can either be displayed as bars, with each
meter’s centre aligned with the frequency it represents, or as a line.
follow ‘Sel’
RTA settings
return to PEQ settings
on/off
RTA meters
fixed channel selection
RTA settings
return to PEQ settings
on/off
RTA Source
