REMOVAL
•

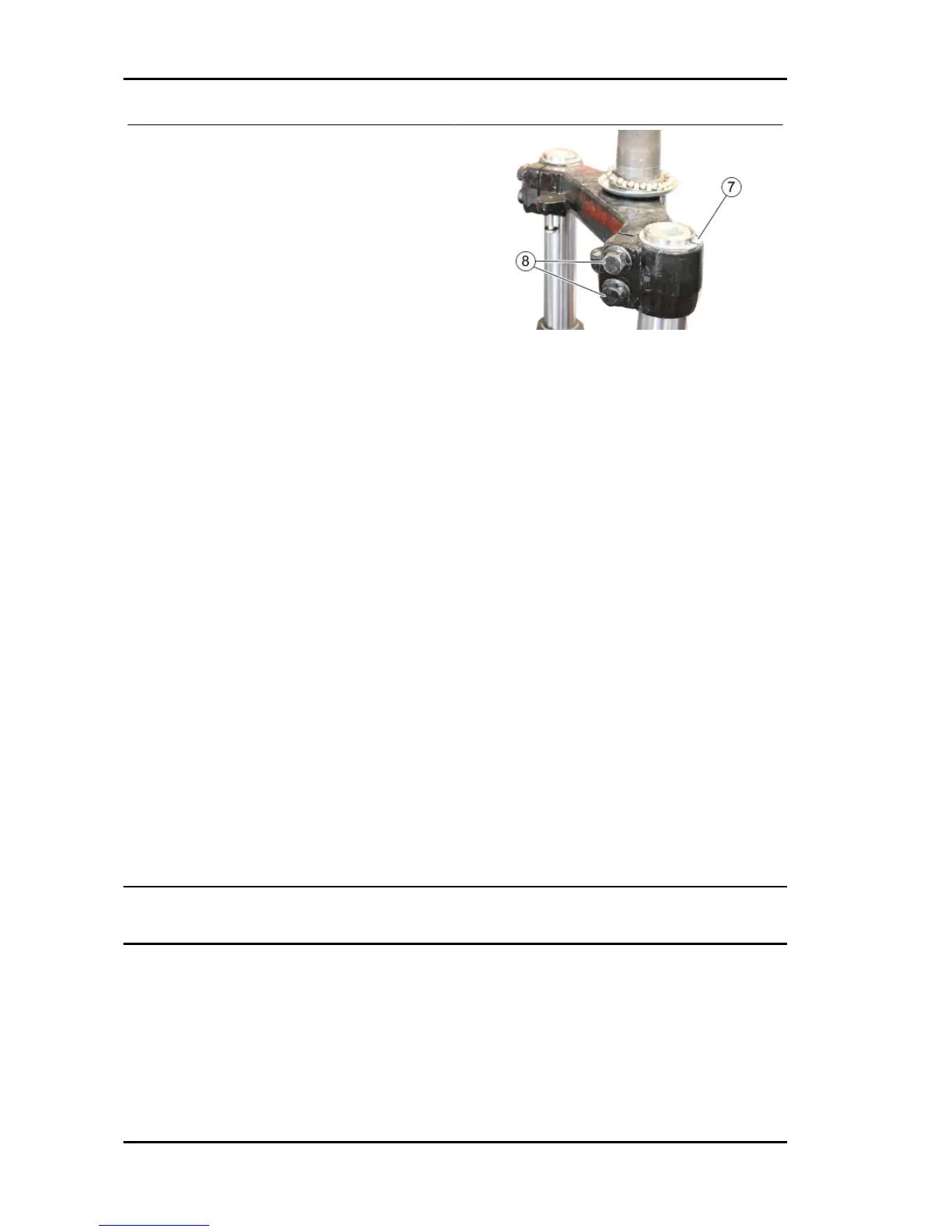

Remove circlip «7», and the two
screws «8» and slide off the stem.
•
Undo screw «6».
•
Remove the components including the
spring.
•
Drain the oil into a collecting container.
•
Undo screw «3», remove the stem and
the pumping member.
SERVICE
Stem
•
Check the sliding surface for scorings and/or scratches.
•
If the scorings are deep, replace the stem.
Sleeve
•
Check that it is not damaged and/or cracked.
•
If there are signs of excessive wear or damage, replace the affected component.
•
Replace oil seal «4» and the dust guard «5» and fit it once you have lubricated its seat.
•
Replace the O-ring on cap «1»
•
Replace sealing washer «2»
FITTING
•
Refit the stem and the pumping member and tighten screw «3» with its washer «2».
•
Pour the recommended quantity of specific oil into the stem unit.
•
Insert the spring and components.
•
Undo screw «6».
Characteristic
Depth of fork oil level from the rim - without spring - fork included
85 mm
Steering column
Suspensions SPORTCITY ONE 125
SUSP - 140
