- Refit the parts in reverse order of the removal

operation.

- Make sure that there are spacers with the two

rear retainers of the housing.

- The long spacers should be in a high position.

CAUTION

TAKE CARE TO CORRECTLY POSITION THE FLYWHEEL

CONNECTOR.

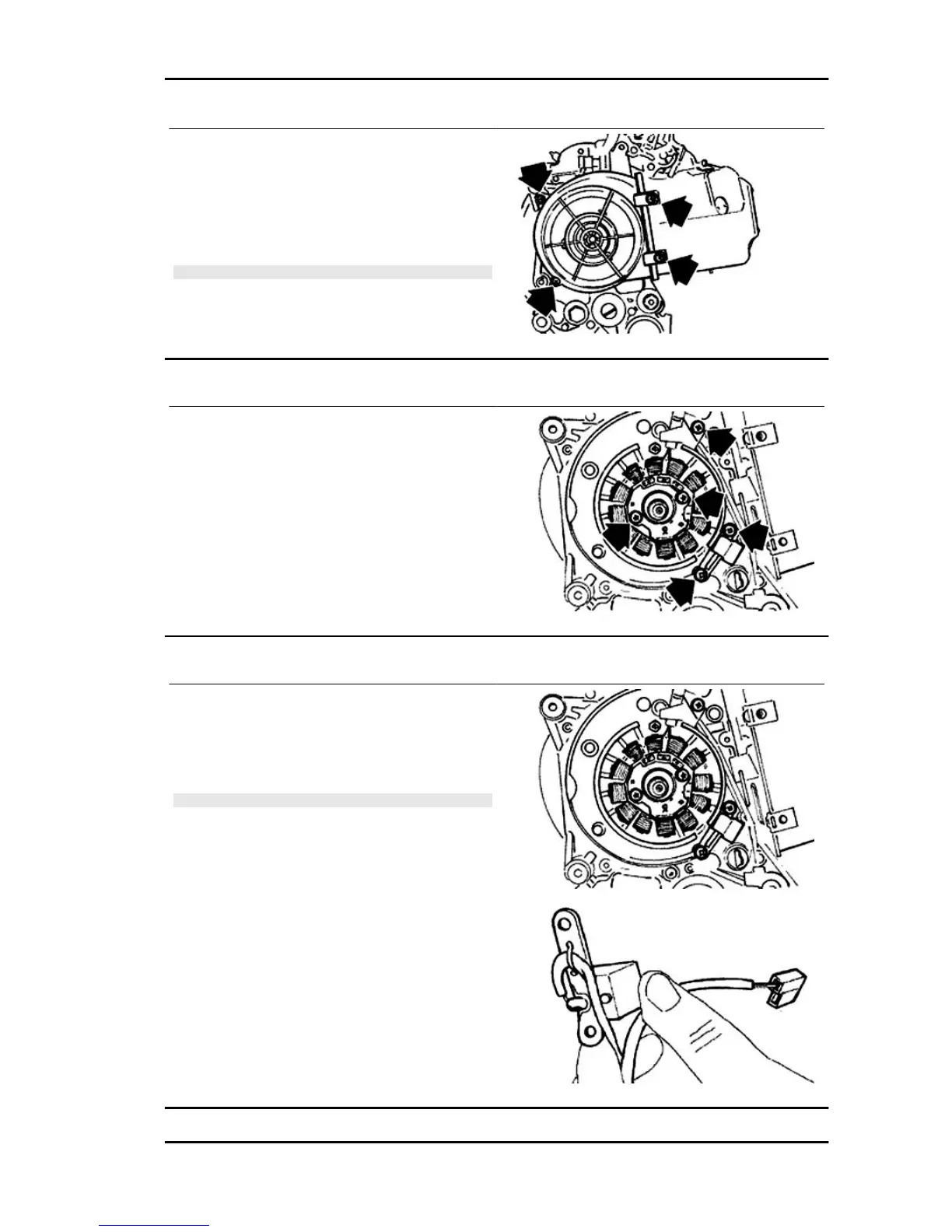

Removing the stator

- Remove the electric terminal of the minimum oil

pressure switch.

- Remove the two Pick-Up screws and the one for

the wiring harness bracket as well as the two stator

fixing screws shown in the figure.

- Remove the stator and its wiring.

Refitting the stator

- Refit the stator and flywheel carrying out the re-

moval procedure in reverse, tightening the retain-

ers to the specified torque.

- Place the cable harness as shown in the figure.

NOTE

THE PICK-UP WIRE SHOULD BE POSITIONED BETWEEN

THE UPPER SCREW AND THE REFERENCE PIN AS

SHOWN IN THE DETAIL DRAWING.

Locking torques (N*m)

Stator screw 3 ÷ 4

SPORTCITY ONE 125 Engine

ENG - 83
