APRILIA SPORTCITY ONE 125 Service Station Manual

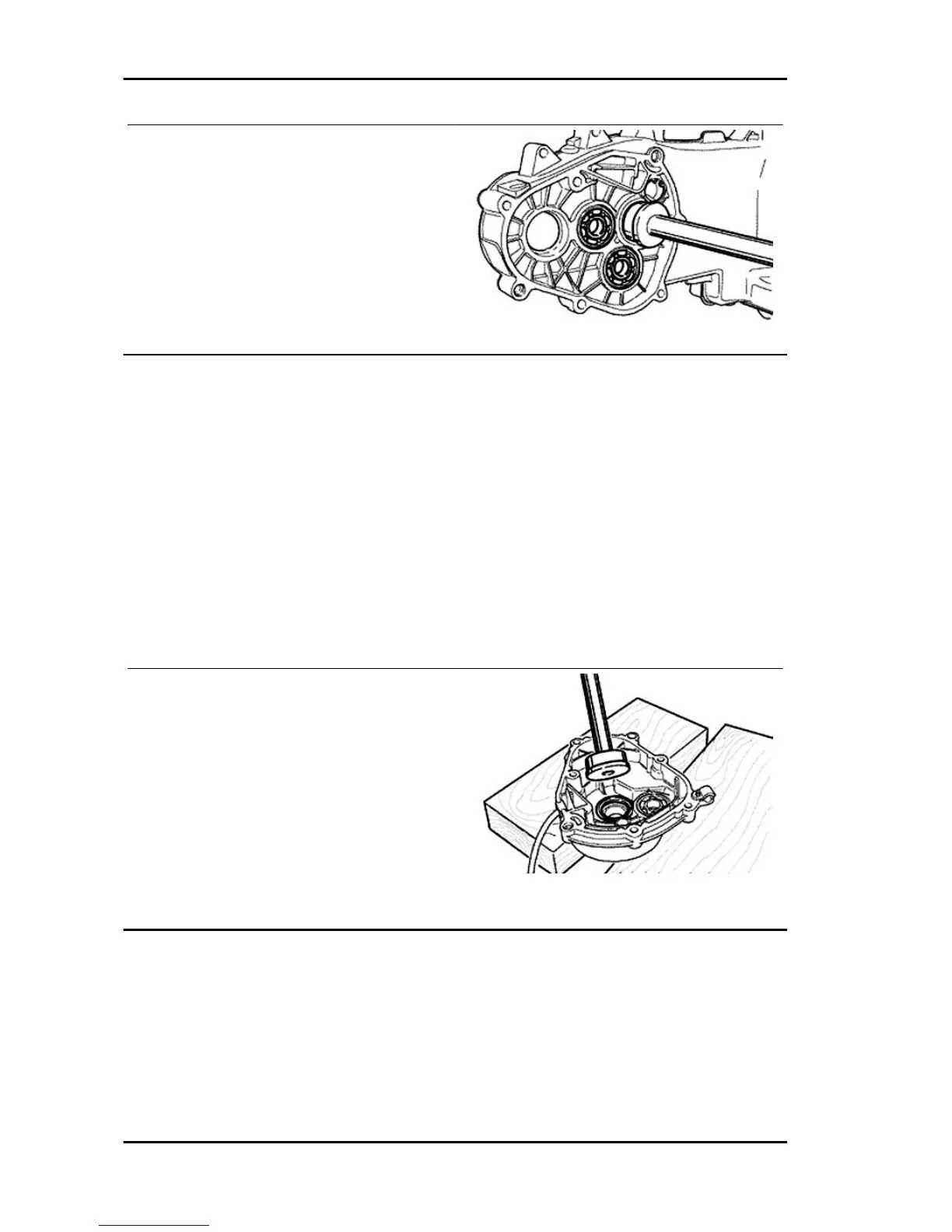

- Refit the Seeger ring with the opening facing the
bearing as shown in the figure and fit a new oil
guard flush with the crankcase.
Refitting the wheel axle bearing
- Heat up the parts using the specific heat gun
Specific tooling
020151Y Air heater
020150Y Air heater support
-The wheel axle bearing on the cover, should be assembled with the specific tools
Specific tooling
020364Y 25-mm guide
020360Y Adaptor 52 x 55 mm
020376Y Adaptor handle
•
Assemble the Seeger ring.
•
Assemble the oil seal flush with the in-
ternal surface as shown in the figure to
the hub using the adequate tools and
with the seal lip towards the inside of
the hub.
Specific tooling
020376Y Adaptor handle
020360Y Adaptor 52 x 55 mm
Refitting the hub cover bearings
- For the fitting of the hub box bearings the engine crankcase and the cover must be heated with the
specific heat gun.
Specific tooling
020150Y Air heater support
020151Y Air heater
Engine SPORTCITY ONE 125
ENG - 80
