APRILIA SPORTCITY ONE 125 Service Station Manual

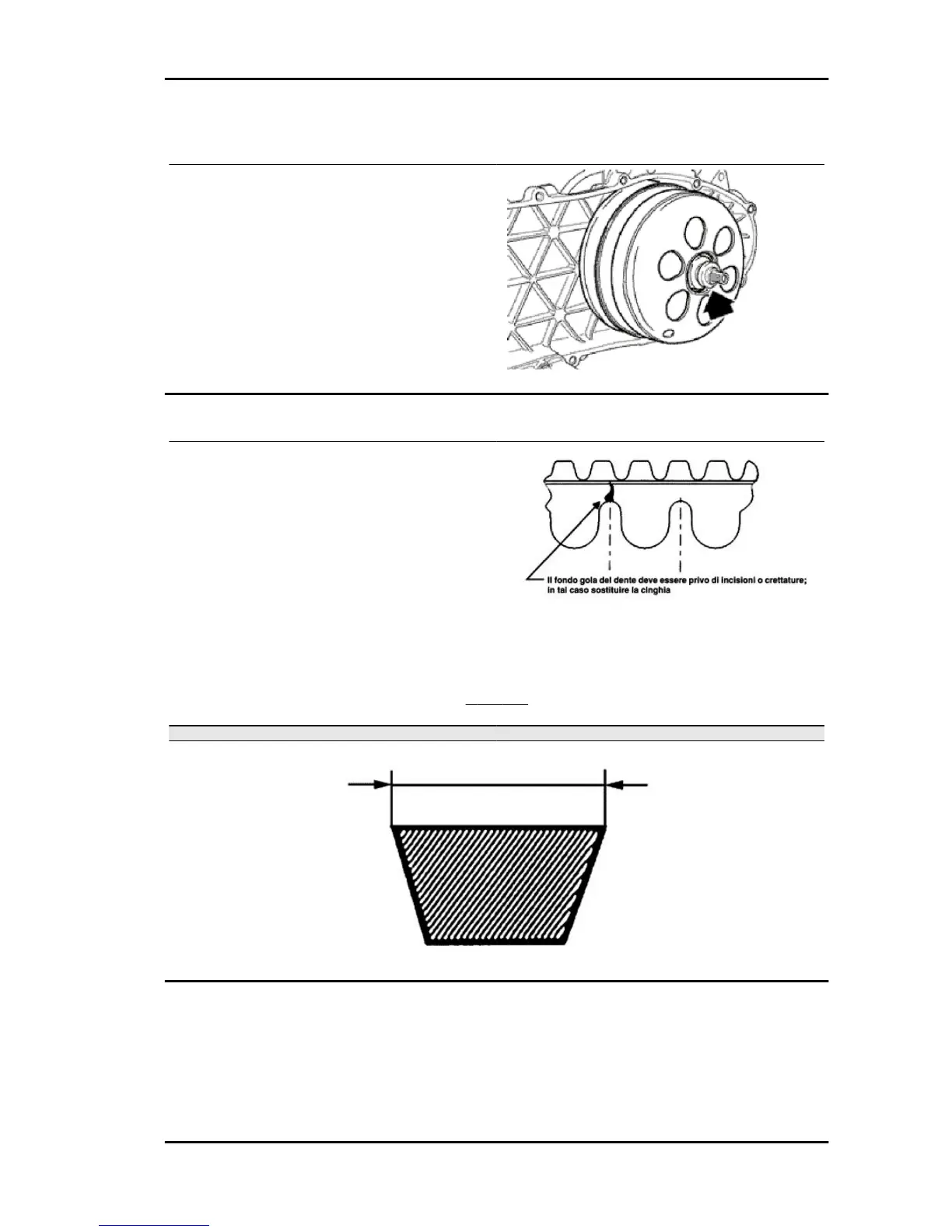

Refitting the driven pulley
- Reassemble the clutch bell and spacer.
Drive-belt
During the wear checks foreseen in the scheduled
maintenance, check that the rim bottom of the
toothing does not show signs of incisions or cracks
(see figure): the rim bottom of the tooth must not
have incisions or cracks; if it does, change the belt.
- Check that the driving belt is not damaged.
- Check the width of the belt.
BELT SIZE
Specification
Desc./Quantity
Minimum width 21.5 mm
Standard width 22.5 ± 0.2 mm
SPORTCITY ONE 125 Engine
ENG - 73

APRILIA SPORTCITY ONE 125 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic fork
Rear Suspension	Single shock absorber
Front Brake	Disc
Rear Brake	Drum
Front Tire	120/70 - 14
Rear Tire	120/70 - 14
Transmission	Automatic
Fuel Capacity	7 liters
