High/low-beam light check
•
Check that bulb operates properly.
•
Check continuity of the Green cable between 15A fuse C and light switch.
•
Check that the light switch operate properly.
•
Check continuity of the Black cable between the light switch and the low-beam bulb.
•
Check continuity of the White cable between the light switch and the high-beam bulb.
Fuses
CAUTION
DO NOT REPAIR FAULTY FUSES.
USE RECOMMENDED FUSES ONLY. USING FUSES OF UNSUITABLE CAPACITY MAY SERI-
OUSLY DAMAGE THE ELECTRICAL SYSTEM OR CAUSE A SHORT CIRCUIT, WHICH MAY
TOTALLY DESTROY YOUR SCOOTER AS WELL AS INJURE YOU.

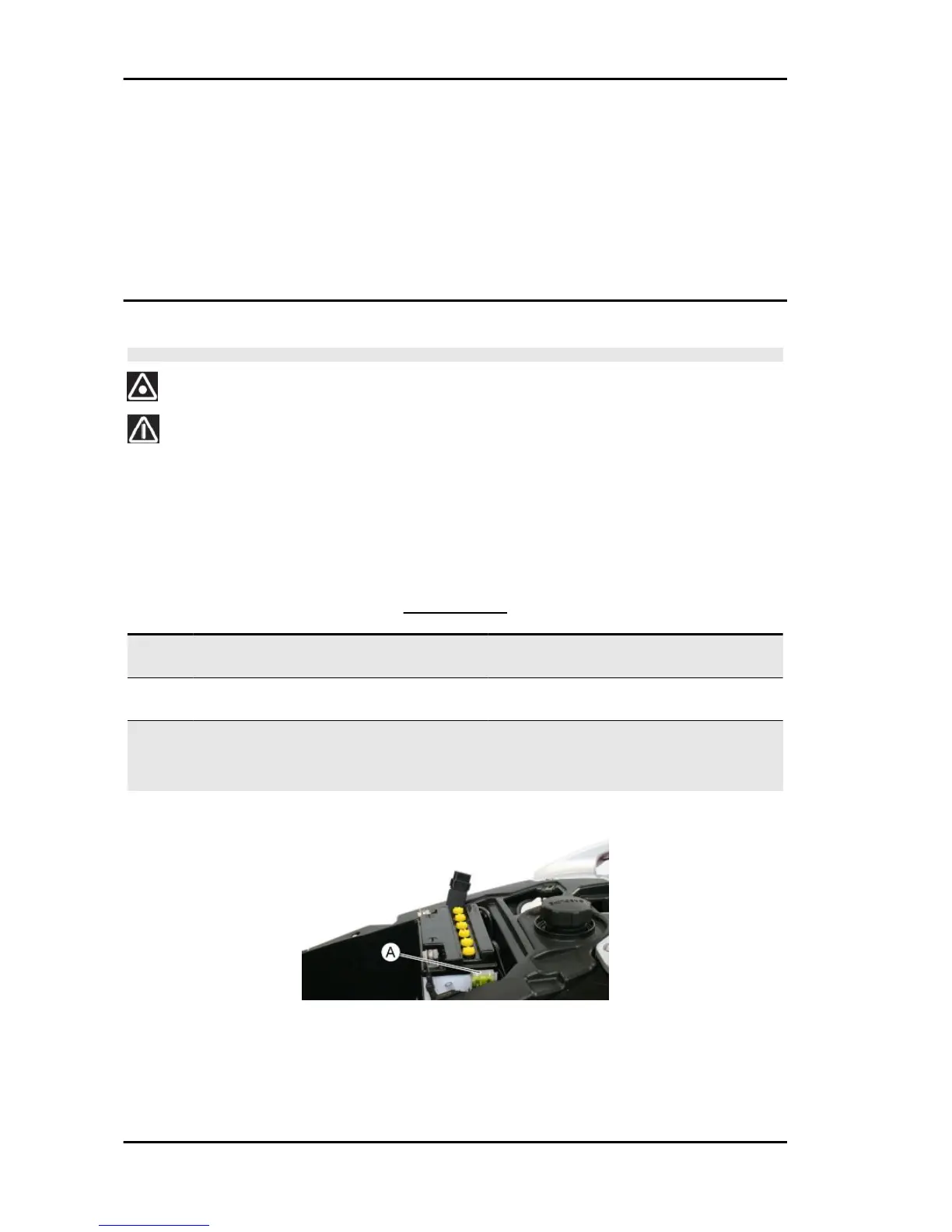

The vehicle has one fuse located in the battery compartment and two fuses located in the front glove
compartment.
FUSE CHART
Specification
Desc./Quantity
1 Fuse A Capacity: 20 A
Protected circuits: Recharge circuit, oil pressure sen-
sor, oil pressure warning light .
2 Fuse B Capacity: 7.5 A
Protected circuits: Start-up circuit, starter motor, stop
light bulb, ECU power supply.
3 Fuse C Capacity: 15 A
Protected circuits: Rear light bulb, license plate light
bulb, turn indicator bulb, turn indicator warning light, fuel
gauge, instrument panel lighting bulb, horn, low-beam
bulb, high-beam bulb, high-beam warning light.
Electrical system SPORTCITY ONE 125
ELE SYS - 54
