Name Torque in Nm
Bag hook fixing screw 3
Rear mudguard fixing screw 6
LABELS / TRANSFER UNIT
Name Torque in Nm
License plate fixing nut 6
Overhaul data
Assembly clearances
Cylinder - piston assy.
COUPLING BETWEEN PISTON AND CAST IRON CYLINDER (125)
Name Initials Cylinder Piston Play on fitting
Coupling M 56.997 ÷ 57.004 56.944 ÷ 56.951 0.046 - 0.060
Coupling N 57.004 ÷ 57.011 56.951 ÷ 56.958 0.046 - 0.060
Coupling O 57.011 ÷ 57.018 56.958 ÷ 56.965 0.046 - 0.060
Coupling P 57.018 ÷ 57.025 56.965 ÷ 56.972 0.046 - 0.060
Coupling 1st oversize M1 57.197 ÷ 57.204 57.144 ÷ 57.151 0.046 - 0.060
Coupling 1st oversize N1 57.204 ÷ 57.211 57.151 ÷ 57.158 0.046 - 0.060
Coupling 1st oversize O1 57.211 ÷ 57.218 57.158 ÷ 57.165 0.046 - 0.060
Coupling 1st oversize P1 57.218 ÷ 57.225 57.165 ÷ 57.172 0.046 - 0.060
Coupling 2nd oversize M2 57.397 ÷ 57.404 57.344 ÷ 57.351 0.046 - 0.060
Coupling 2nd oversize N2 57.404 ÷ 57.411 57.351 ÷ 57.358 0.046 - 0.060
Coupling 2nd oversize O2 57.411 ÷ 57.418 57.358 ÷ 57.365 0.046 - 0.060
Coupling 2nd oversize P2 57.418 ÷ 57.425 57.365 ÷ 57.372 0.046 - 0.060
Coupling 3rd oversize M3 57.597 ÷ 57.604 57.544 ÷ 57.551 0.046 - 0.060
Coupling 3rd oversize N3 57.604 ÷ 57.611 57.551 ÷ 57.558 0.046 - 0.060
Coupling 3rd oversize O3 57.611 ÷ 57.618 57.558 ÷ 57.565 0.046 - 0.060
Coupling 3rd oversize P3 57.618 ÷ 57.625 57.565 ÷ 57.572 0.046 - 0.060

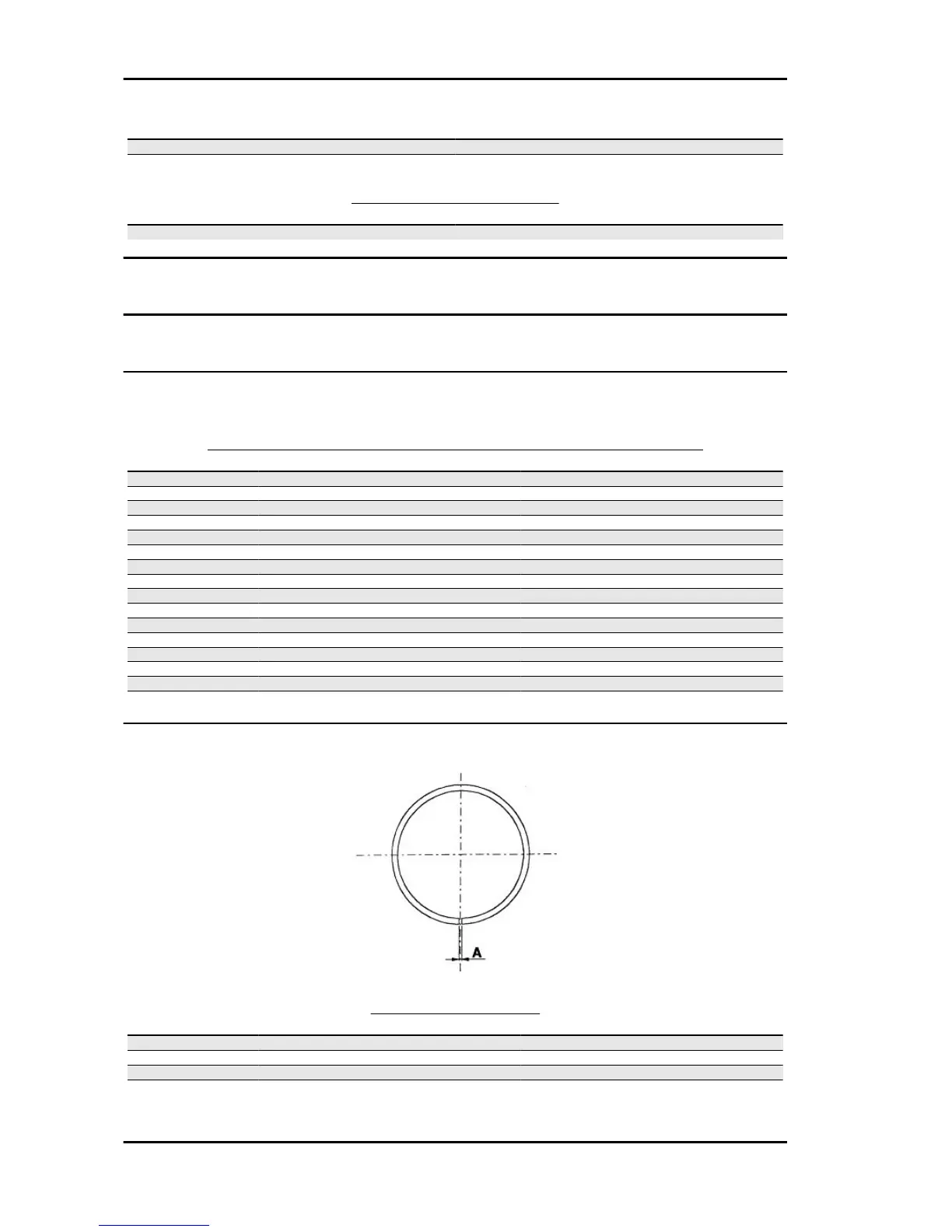

Piston rings
SEALING RINGS (125)
Name
Description Dimensions Initials Quantity
Compression ring 57 x 1 A 0.15 ÷ 0.30
Oil scraper ring 57x1 A 0.10 ÷ 0.30
Oil scraper ring 57x2.5 A 0.10 ÷ 0.35
Compression ring 1st
Oversize
57.2 x 1 A 0.15 ÷ 0.30
Characteristics SPORTCITY ONE 125
CHAR - 16
