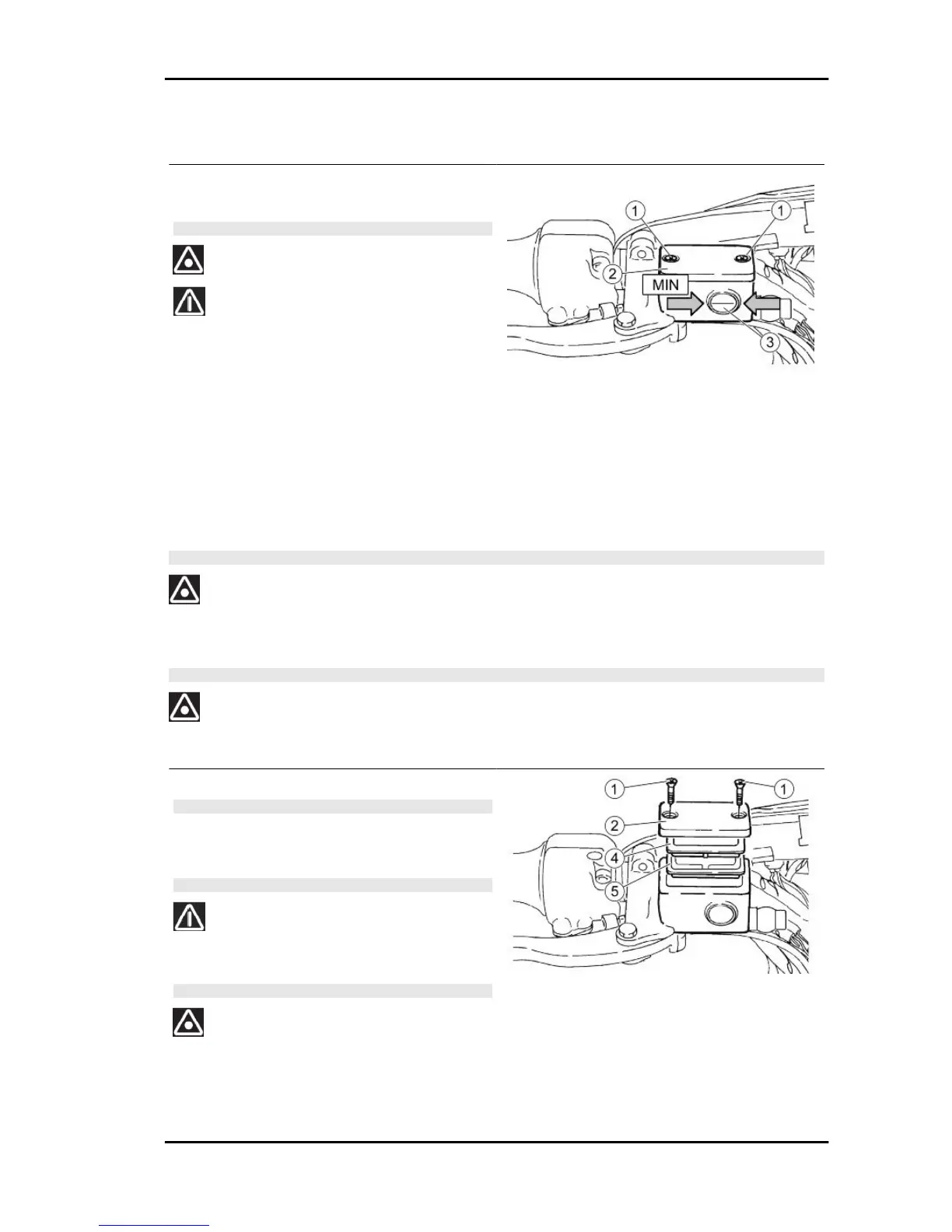

Top-up
•
Remove the mirror and the pump cov-
er.
CAUTION
TO REMOVE THE TWO SCREWS «1» THAT FIX THE RES-
ERVOIR COVER «2», TURN THE HANDLEBAR SO THAT
THE FLUID INSIDE THE BRAKE FLUID RESERVOIR IS
PARALLEL TO «MIN» REFERENCE MARK. IF THIS PRO-
CEDURE IS NOT CARRIED OUT, THE BRAKE FLUID WILL
SPILL OUT OF THE RESERVOIR.
•
Turn the handlebar so that the fluid in the brake fluid reservoir is parallel to the «MIN» ref-
erence mark.
•
Undo the two screws «1».
•
Remove cover «2».
•
Remove cover guide «4».
WARNING
AVOID PROLONGED AIR EXPOSURE OF THE BRAKE FLUID. BRAKE FLUID IS HYGROSCOPIC
AND ABSORBS MOISTURE WHEN IN CONTACT WITH AIR. LEAVE THE BRAKE FLUID RESER-
VOIR OPEN ONLY FOR THE TIME NEEDED TO COMPLETE THE TOPPING UP PROCEDURE.
CAUTION
TO AVOID SPILLING BRAKE FLUID WHILE TOPPING-UP, KEEP THE FLUID LEVEL IN THE RES-
ERVOIR PARALLEL TO THE RESERVOIR EDGE AND DO NOT SHAKE THE VEHICLE.
•
Remove the gasket «5».
NOTE
TO REACH THE MAXIMUM LEVEL, TOP-UP UNTIL COV-
ERING THE SIGHT GLASS COMPLETELY BUT LEAVE A
5-6 MM (0.20-0.23 IN) MARGIN FROM THE RESERVOIR
EDGE.
CAUTION
DO NOT EXCEED THE ''MAX'' LEVEL REFERENCE MARK
WHEN TOPPING-UP. TOP-UP TO THE ''MAX'' LEVEL REF-
ERENCE MARK ONLY WHEN NEW PADS ARE FITTED.
WARNING
NEVER FILL THE RESERVOIR UP TO THE 'MAX'' LEVEL
REFERENCE MARK IF THE PADS ARE WORN; THIS
WOULD CAUSE THE FLUID TO LEAK OUT FROM THE
RESERVOIR WHEN THE NEW PADS ARE FITTED. USE
RECOMMENDED PRODUCT ONLY. NEVER REUSE OLD
BRAKE FLUID.
SPORTCITY ONE 125 Maintenance
MAIN - 37
