APRILIA SPORTCITY ONE 125 Service Station Manual

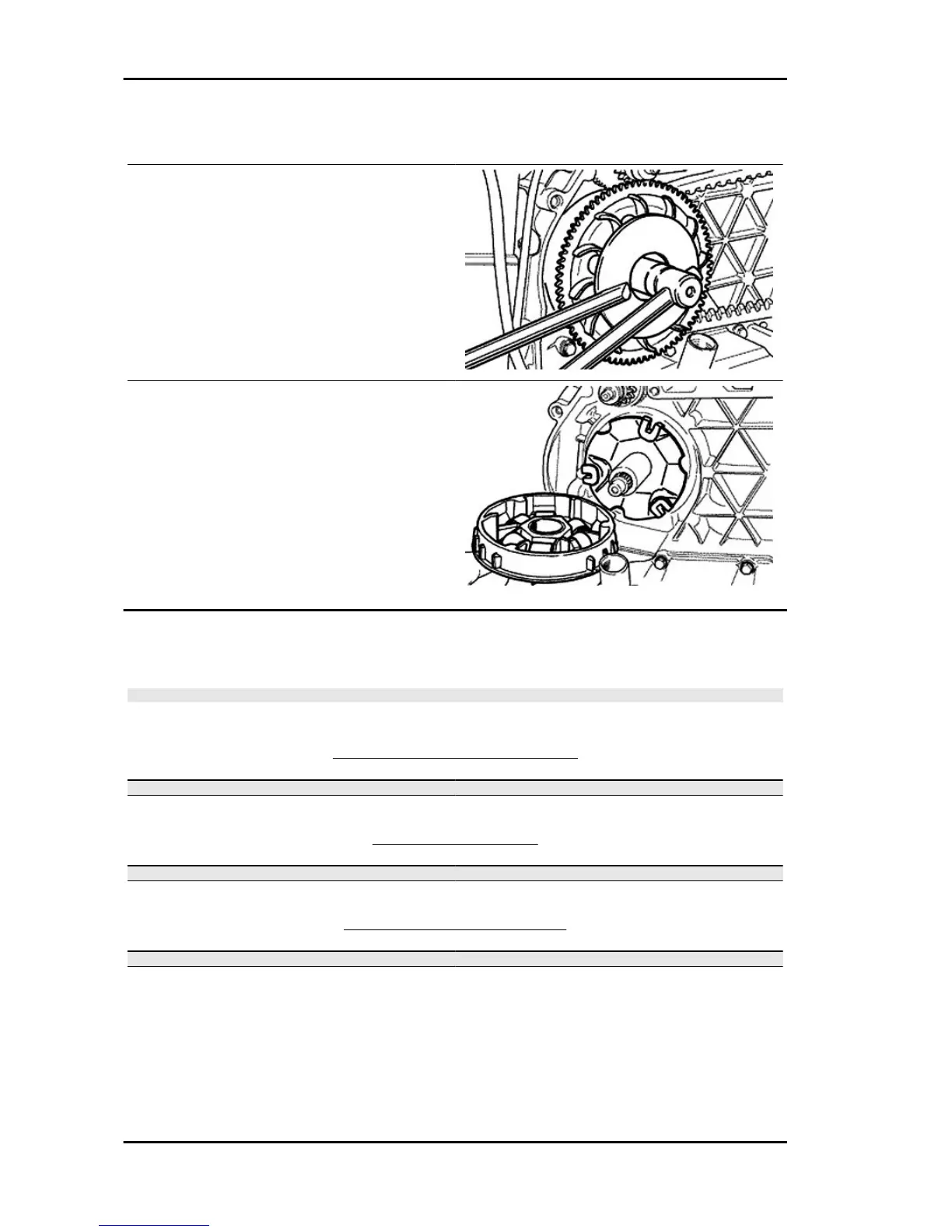

Removing the driving pulley
- Lock the driving pulley with the specific tool as
shown in the figure. - Disassemble the central nut
and the Belleville washer, remove the drive and
the 2 washers. - Remove the stationary half pulley
and the steel washer.
Specific tooling
020368Y driving pulley lock wrench
- Remove the belt and slide the movable half-pul-
ley with the relevant bush, taking care of the falling
free assembled rollers.
- Remove the return rollers plate with the relative
guide pads.
Inspecting the rollers case
- Check that the internal bushing is not abnormally worn and measure inner diameter.
NOTE
DO NOT LUBRICATE OR CLEAN THE BUSHING.
BUSHING ROLLER CONTAINER
Specification
Desc./Quantity
Maximum allowable diameter Ø 26.121 mm
Standard diameter Ø 26+0 +0.021 mm
BUSH SLIDE PULLEY
Specification
Desc./Quantity
Minimum diameter permitted Ø 25.950 mm
Standard diameter Ø 26-0.020 -0.041 mm
VARIABLE SPEED ROLLERS
Specification
Desc./Quantity
Minimum diameter permitted Ø 18.5 mm
Standard diameter Ø 26±0.1 mm
Engine SPORTCITY ONE 125
ENG - 74

APRILIA SPORTCITY ONE 125 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic fork
Rear Suspension	Single shock absorber
Front Brake	Disc
Rear Brake	Drum
Front Tire	120/70 - 14
Rear Tire	120/70 - 14
Transmission	Automatic
Fuel Capacity	7 liters
