11.96

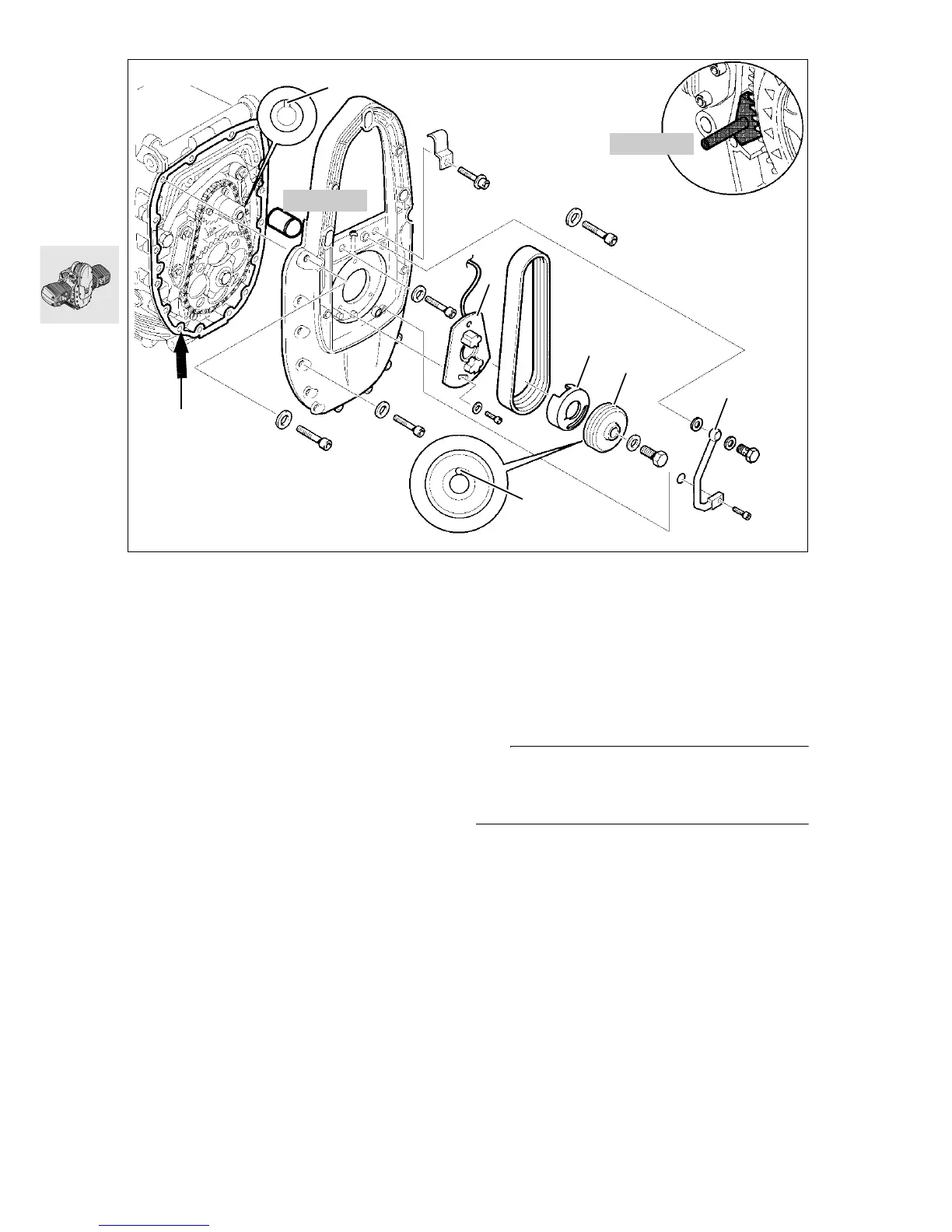

Installing alternator mount cover
•
Place sliding sleeve, BMW No. 11 5 680, on
crankshaft.
•
Apply 3-Bond 1209 to the sealing face (arrow),
which must be clean and free from grease.
•
Install alternator mount cover.
X Tightening torque:
M 8 screw .................................................... 20 Nm
M 6 screw ...................................................... 9 Nm
Installing magnetic gate/belt pulley
•
Install Hall-effect trigger plate (1).
•
Lock clutch housing with retaining device,
BMW No. 11 5 640.
•
[from 1995 model year on] Prevent rotor (2) of
Hall-effect gate from moving with (for example)
Loctite instant adhesive at Poly-V belt
pulley (3).
•
Install the Poly-V belt pulley.
e Caution:
Install the belt pulley lock (4) (from model year 1995
on, rotor location at Hall-effect gate) at the groove/
crankshaft (5).
X Tightening torque:
Retaining screw for belt pulley ..................... 50 Nm
•
Install rotary breather pipe (3) with new sealing
rings.
X Tightening torque:
Vent line to alternator mount cover
M 8 screw .................................................... 20 Nm
Banjo screw ................................................. 25 Nm
11 5 680
5
1
4
11 5 640
2
3
6
RS110450
u
