62.9

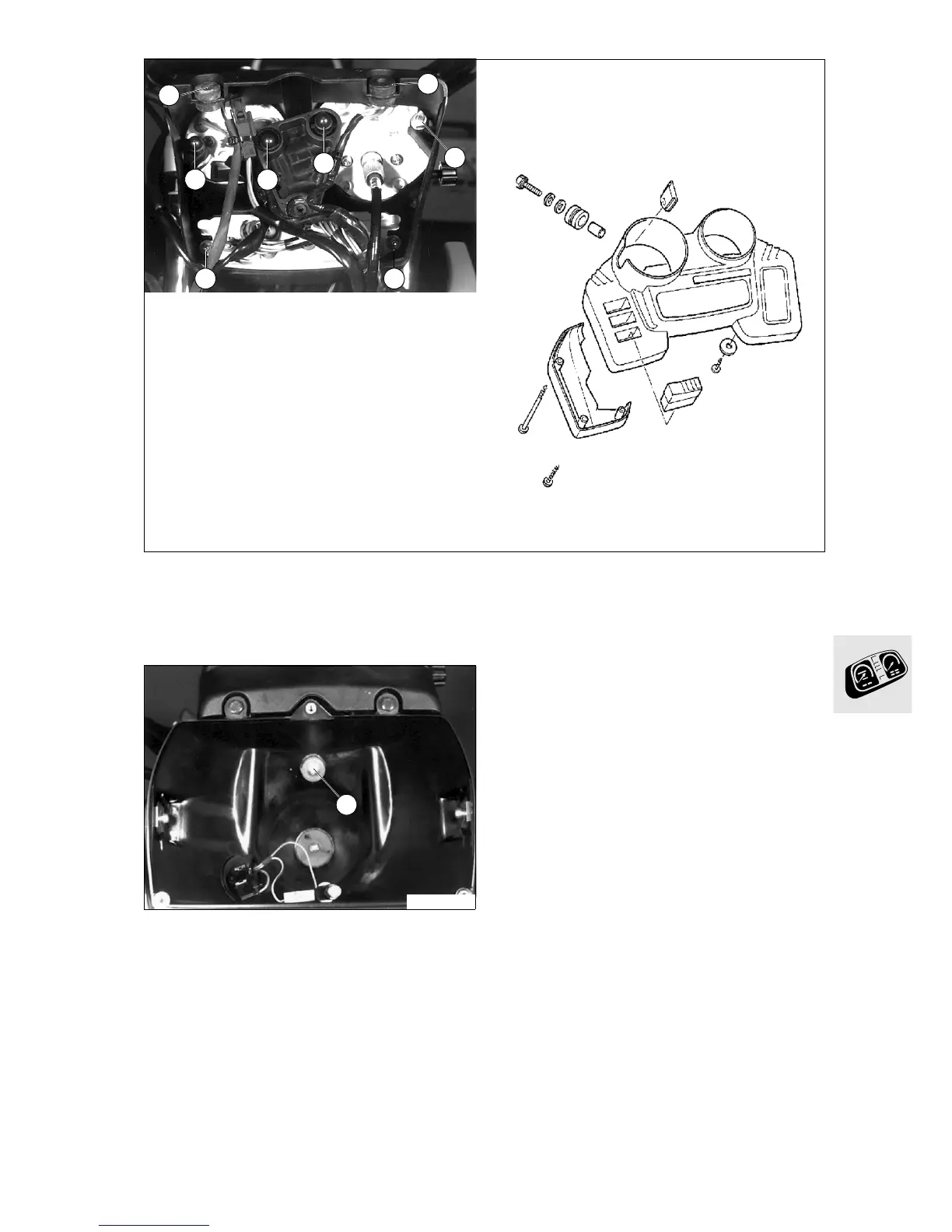

[GS] Removing and installing
instrument cluster
•
Remove windshield.
•
Remove headlight housing/detach instrument
cluster mount on inside of headlight housing (1).
•
Detach instrument cluster (2).
•
Detach speedometer shaft.
•
Remove left cover.
•
Disconnect plugs.
•
Install in the reverse order of work.
[GS] Dismantling and assembling
instrument cluster
•
Unscrew threaded connections (3) at instrument
cluster.
•
Pull off instrument lighting.
•
Remove monitor unit (4).
•
Remove telltales.
•
Assemble in the reverse order of work.
GS620030
2
4
4
2
3
3
3
3
G62002
1
