46.37
Removing and installing rear sec-
tion of frame
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove dualseat.
•
[RT] Remove mirrors.
•
[RT] Remove side sections of fairing.
•
Remove fuel tank.
•
[GS/RT] Remove luggage rack.
•
[GS/RT] Detach wiring harness at rear section of
frame/detach central electrical equipment box
only.
•
[RS/R/RT] Remove rear light.
•
[RS/R/RT] Remove rear fairing.
•
[RS/R/RT] Detach wiring harness from left turn
indicator to central electrical equipment box/de-
tach central electrical equipment box only.
•
[RS/R/RT] Remove lower rear section.
•
[ABS] Separate the ABS sensor plug and detach
the cable.
•
Disconnect the brake light switch plug and de-
tach the cable.
•
Disconnect the side stand switch plug and de-
tach the cable.
•
Disconnect the neutral switch plug and detach
the cable.
•
Detach diagnosis plug and cable.
•
Pull brake cable out of holder/rear section of
frame.
•
Pull brake fluid container out of holder.
•
Detach muffler (silencer) from rear section of
frame.
•
Detach upper suspension strut mount.
•
[RT] Detach footrest plates from rear section of
frame.
•
Remove air cleaner box from rear section of
frame.
•
Remove rear section of frame.
•
Remove fittings.
•
Install in the reverse order of work.

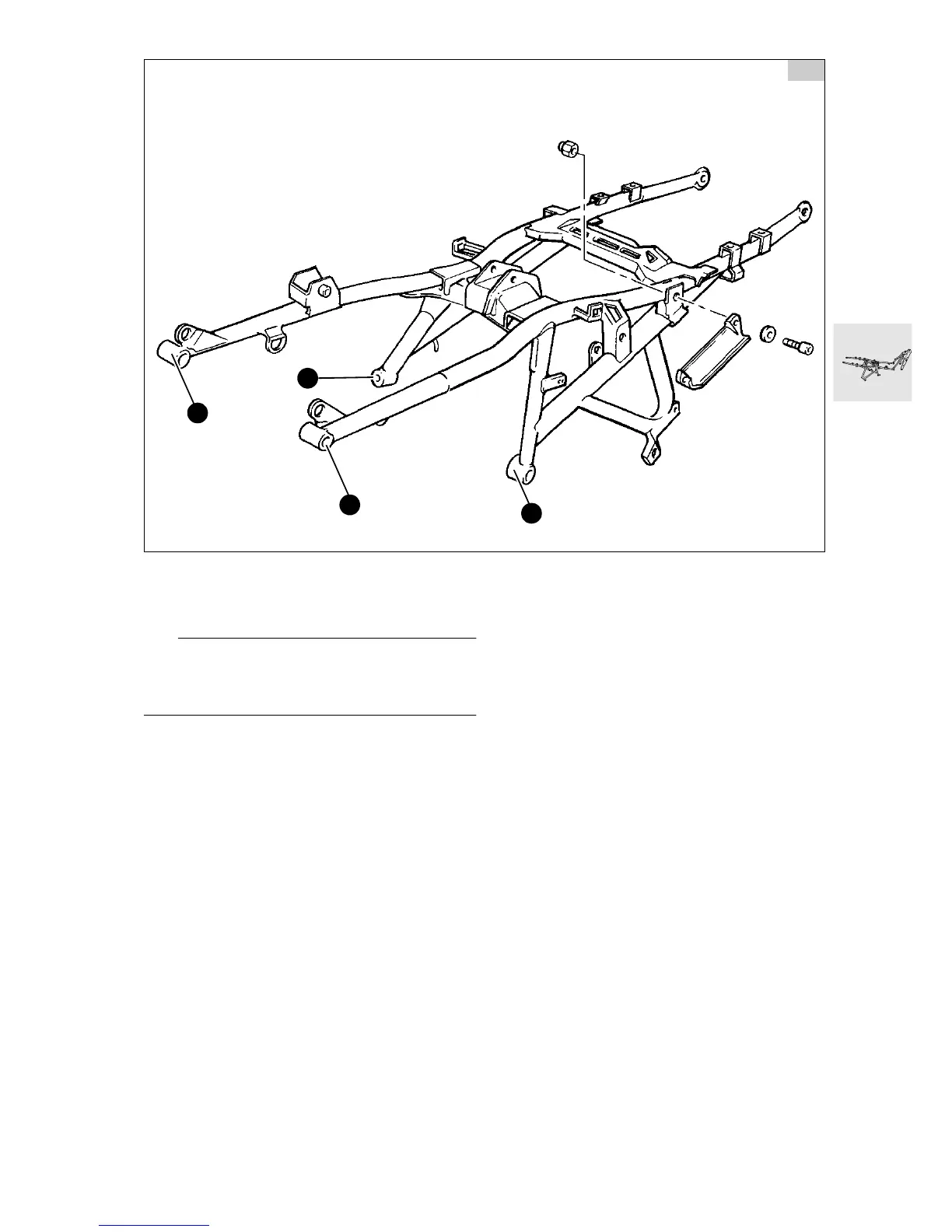

Tightening sequence:
1. Screw connection ................ on right of gearbox
2. ............................................... on right of engine
3. ..................................................on left of engine
4. ............................................... on left of gearbox
X Tightening torque:
Rear section of frame to gearbox/engine ..... 47 Nm
RS
2
1
3
4
RS460160
