62.7
[RT] Removing and installing
instrument cluster
•
Remove dualseat.
•
Remove mirrors.
•
Remove side sections of fairing.
•
Remove inner fairing panel.
•
Remove windshield.
•
Remove upper section of fairing.
•
Detach speedometer shaft.
•
Detach instrument cluster (1) and lift
out of mount.
•
Disconnect plugs.
•
Install in the reverse order of work.

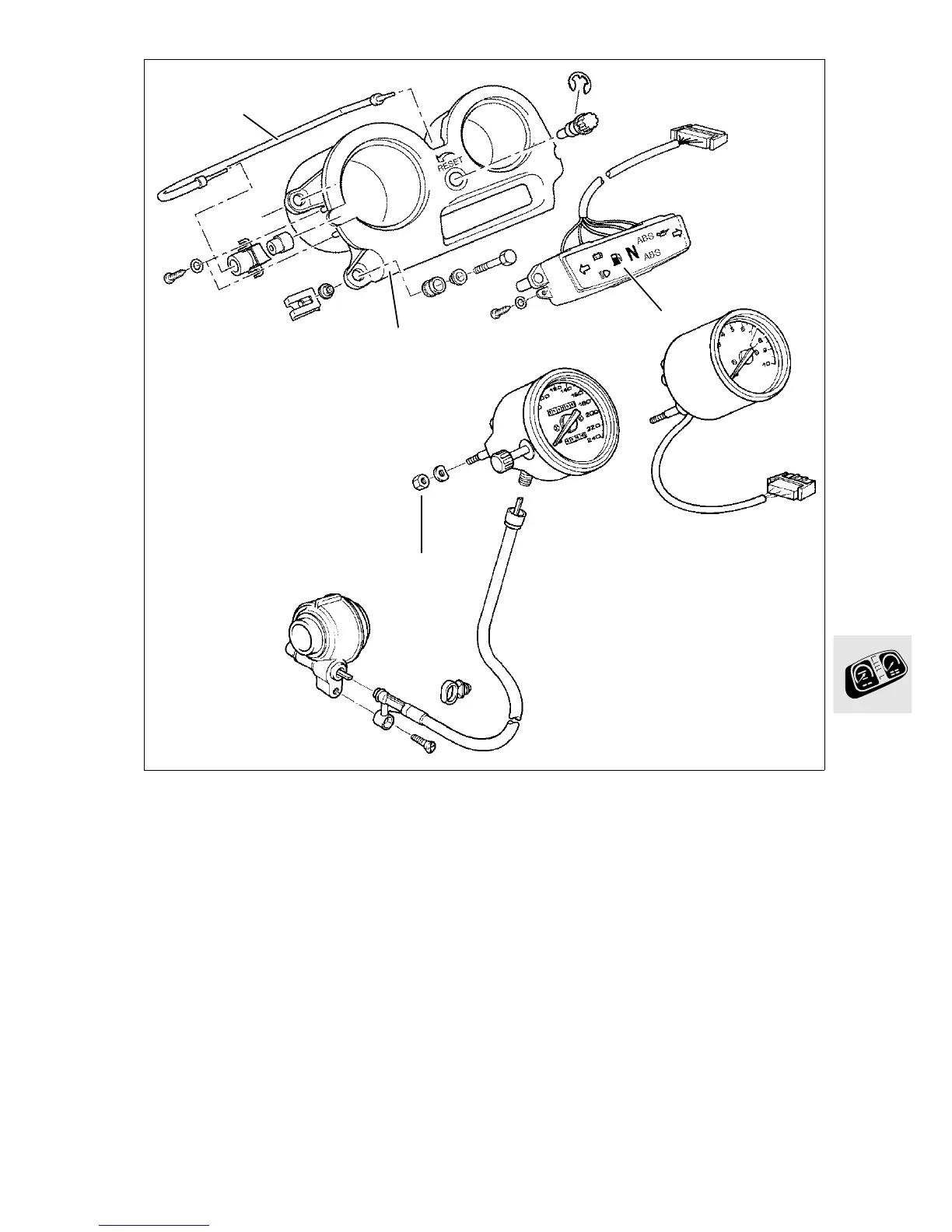

[RT] Dismantling and assembling
instrument cluster
•
Unscrew threaded connections at
instruments (2).
•
Detach trip distance recorder reset shaft (3) from
speedometer.
•
Pull off instrument lighting.
•
Remove monitor unit (4).
•
Assemble in the reverse order of work.
1
4
2
3
RT620050
