51.5
[RS/RT] Removing and installing
dualseat lock
Removing and installing lock barrel
•

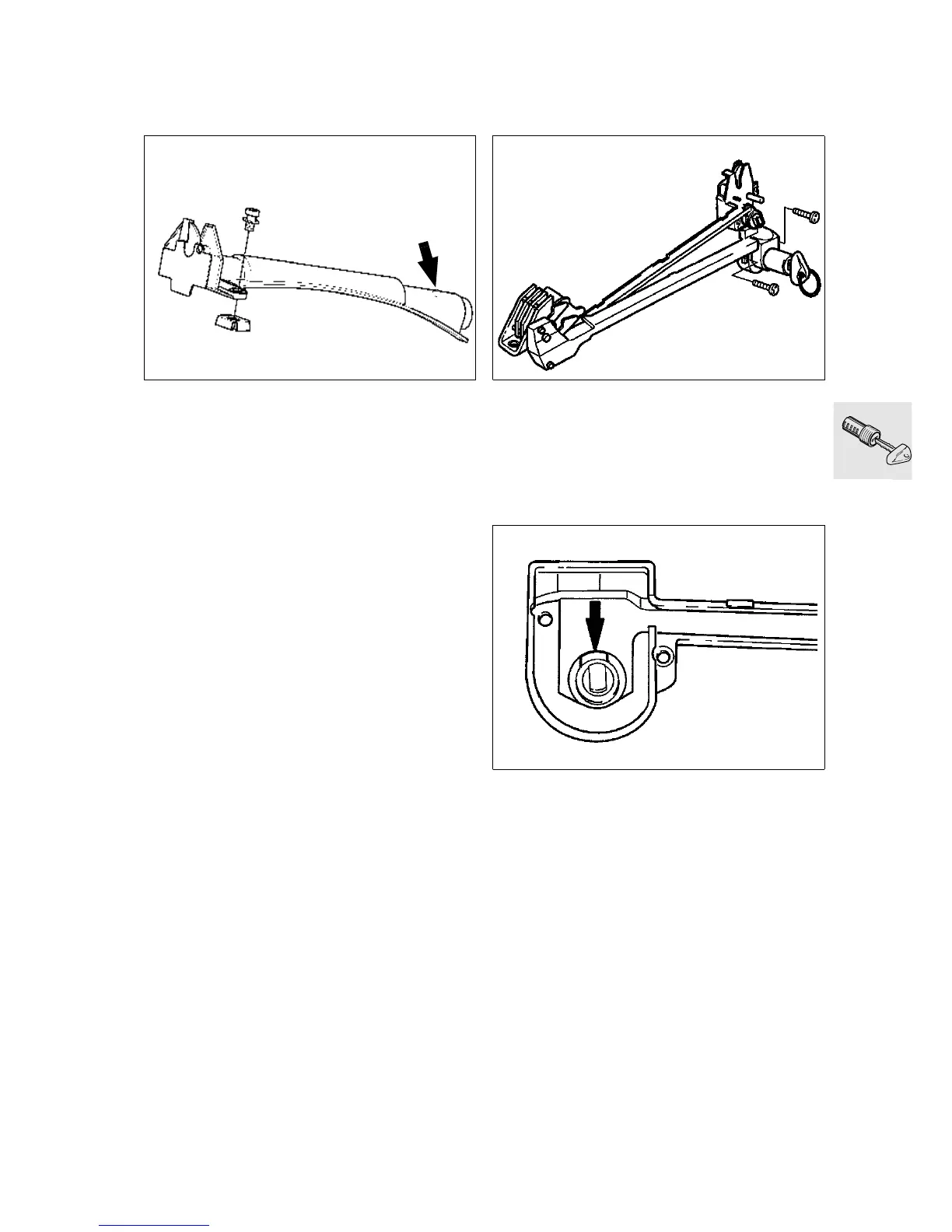

Press down retainer (arrow) with a piece of wire
or similar.
•
Pull out lock barrel with key.
•
Lubricate the new lock barrel with
Shell Retinax A.
•
Insert lock barrel until retainer engages.
[GS] Removing and installing
dualseat lock
Removing and installing lock barrel
•
Remove luggage rack.
•
Remove dualseat lock.
•
Dismantle key side of dualseat lock (2 screws)
and open up carefully.
•
Press the locating tongue (arrow) of the lock bar-
rel in the housing and pull the lock barrel out with
the key.
•
Lubricate the new lock barrel with
Shell Retinax A.
•
Insert lock barrel until retainer engages.
•
Install in the reverse order of work.
RS510051 GS510060
GS510070
