23.10

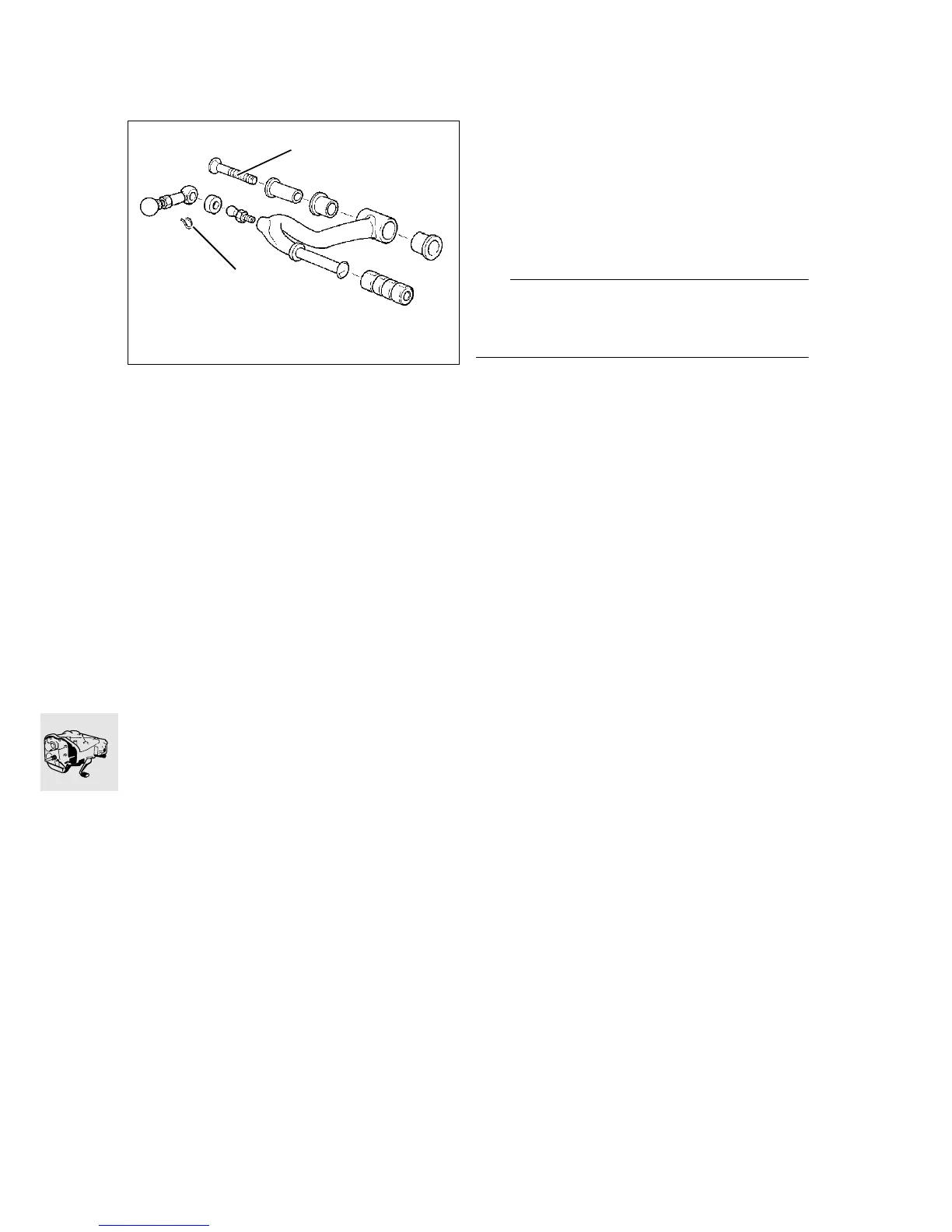

Removing and installing gear shift
pedal
•
Remove retaining bracket (1) and unfasten ball
head.
•
Remove retaining screw (2) on gear shift pedal.
X Tightening torque:
Gear shift pedal to footrest plate
[RS/GS/R] ................................................... 35 Nm
[RT].............................................................. 18 Nm
Removing gearbox
•
Remove dualseat.
•
[RS/GS/RT] Remove side sections of fairing.
•
[RS] Detach inner cockpit panel at fuel tank.
•
[R] Remove fuel tank cover.
•
Unscrew fuel tank mount.
•
Seal, loosen and pull off fuel feed and return line
using hose clip, BMW No. 13 0 010.
•
Remove vent pipes.
•
Separate plug for fuel pump.
•
Remove fuel tank.
•
Remove battery.
e Caution:
Disconnect the negative battery terminal first, then
the positive terminal. Connect the positive battery
terminal first, then the negative terminal.
•
Motorcycles with throttle-cable divider, release
Bowden-cable divider.
•
Unscrew rear battery mount.
•
Remove plug from air temperature sensor.
•
Remove air cleaner cover.
•
Detach air intake pipe and push it into the air
cleaner box.
•
Unfasten air cleaner box at front and rear.
•
Remove muffler.
•
Separate connector between neutral switch and
prop stand switch and detach lead.
•
Remove connector from brake light switch and
lead.
•
[ABS]/[GS/R/RT] Disconnect the plug for the
rear sensor line and the wire itself.
•
[ABS] brake master cylinder - detach at footrest
plate.
2
1
RS230321
