33.9
Removing, dismantling, reassem-
bling and installing rear wheel drive
•
Drain the oil.
•
[RS] Remove number plate carrier.
•
[GS] Remove rear wheel cover at rear wheel
drive.
•
Unfasten brake caliper/secure to rear frame with
cable strap.
•
[ABS]/[GS/R/RT] Remove sensor.

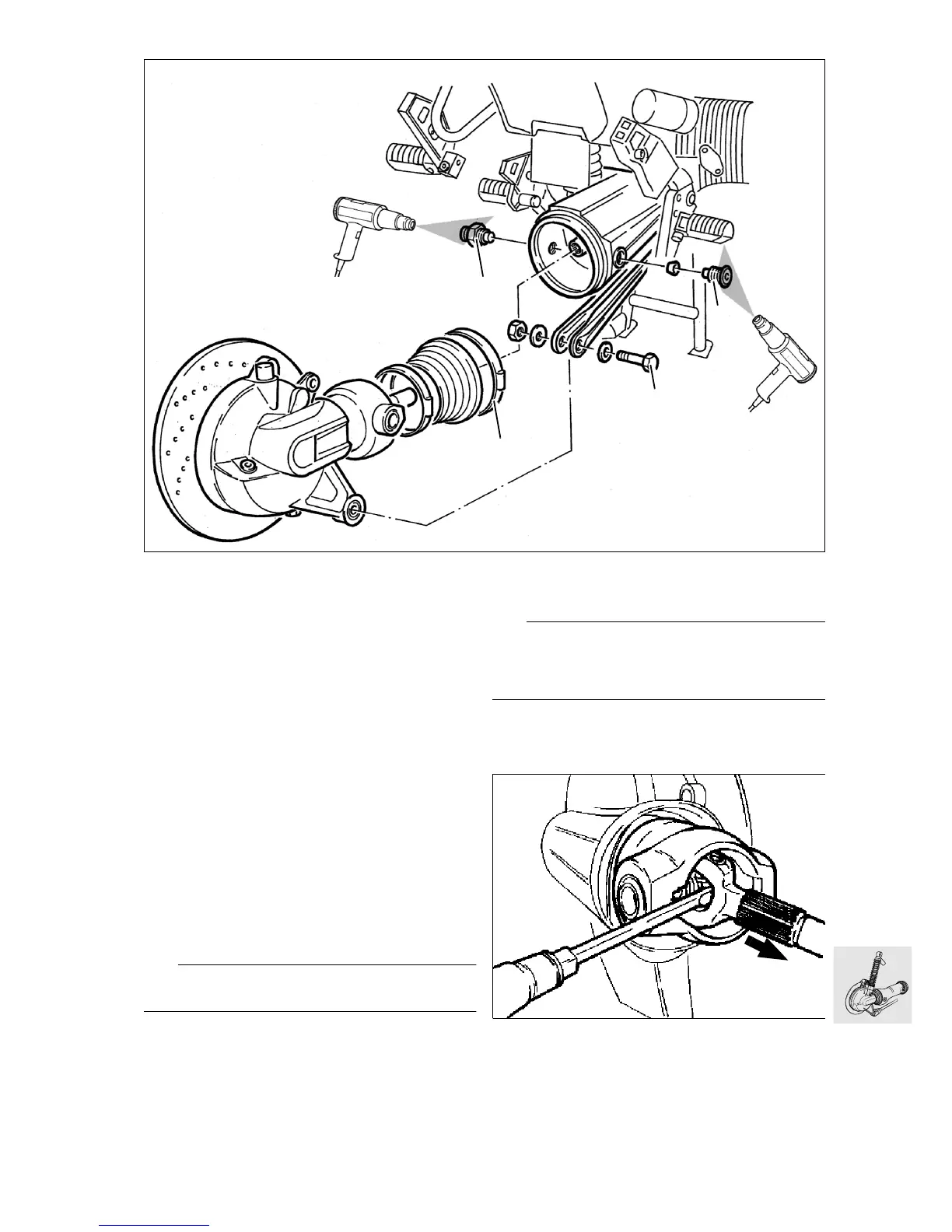

Removing rear wheel drive
•
Remove rear wheel.
•
Loosen strut at rear wheel drive (1).
•
Release clamping strap (2).
•
Heat free bearing journal (3) to max. 120 °C/
loosen; heat fixed bearing journal (4) to max.
120 °C/loosen.
•
[RS/R/RT] Remove brake disk/heat retaining
bolts to 120 °C, with
[ABS] mark position before removing.
•
Remove free bearing/fixed bearing journal (3/4).
L Note:
Inner races of needle bearings.
•
Detach strut from rear wheel drive.
•
Disconnect rear wheel drive from drive shaft.
L Note:
If rear wheel drive is filled with oil, do not place on
side prior to installation: this will cause oil to escape
later, when the bike is ridden (suction effect).
Removing input bevel pinion
•
Press out splined section of shaft.
•
If necessary, remove/install circlip.
3
2
1
4
j
120
j
120
RS330010
LT 33.043
LT330430
