46.52
Checking running gear
Measuring wheel track offset
•
Place vehicle on level ground on center stand.
•

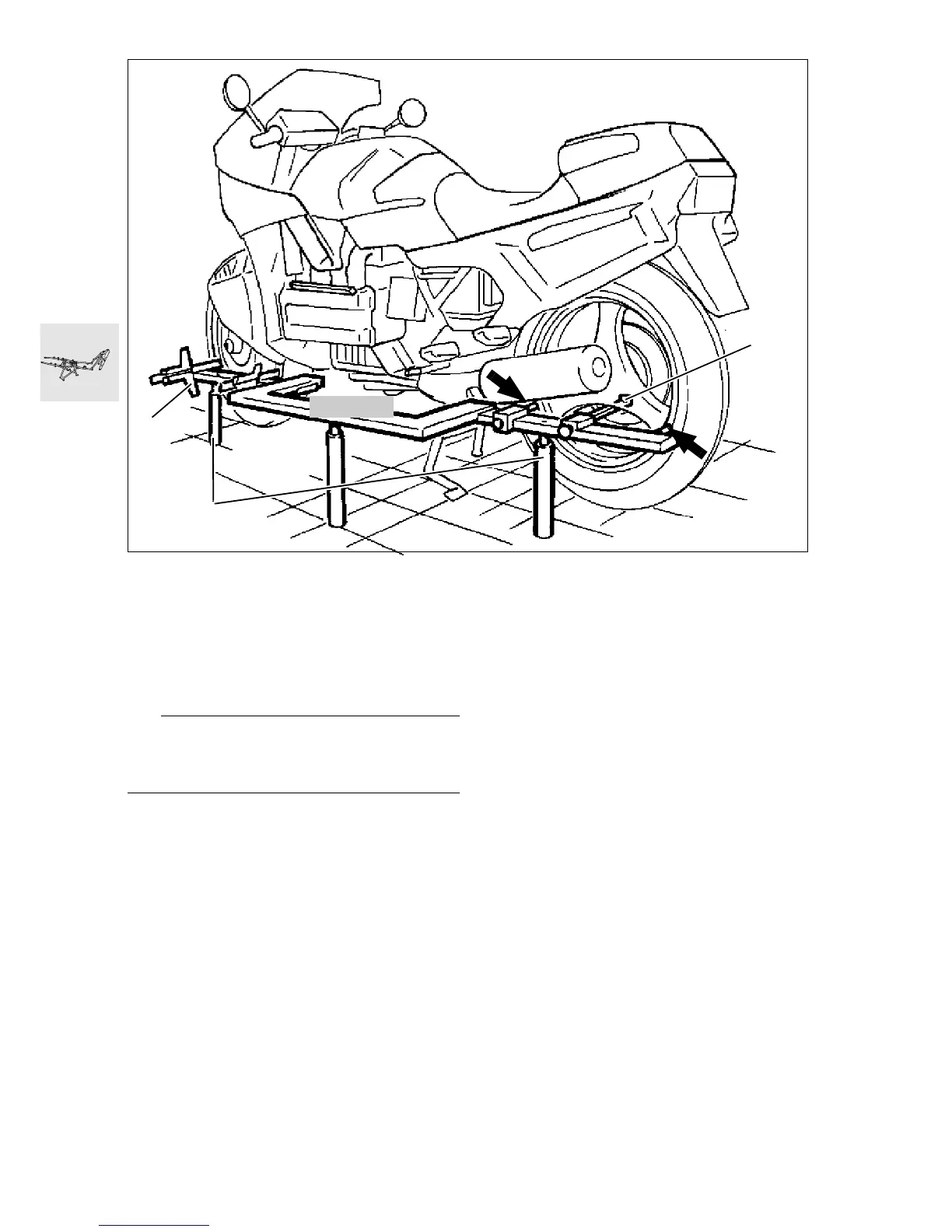

Place track alignment gauge,
BMW No. 36 3 920, against left or right side of
motorcycle.
L Note:
In order to use the track alignment gauge on either
the left or right side, simply screw the supports in on
the other side.
•
Adjust support (1) so that the measuring plane is
as close as possible to the wheel centerline. The
gauge must slide freely up to the motorcycle.
•
Adjust measuring stops (arrows) until they con-
tact the wheel rim - not the tyre.
•
Attach hook (2) to wheel spoke to secure the
gauge firmly to the wheel.
•
Align front wheel parallel with the gauge.
•
Measure distance between outer edge of gauge
and wheel rim, using depth gauge (3) or ruler,
and make a note of the dimension.
36 3 920
1
2
3
RS460200
