46.19

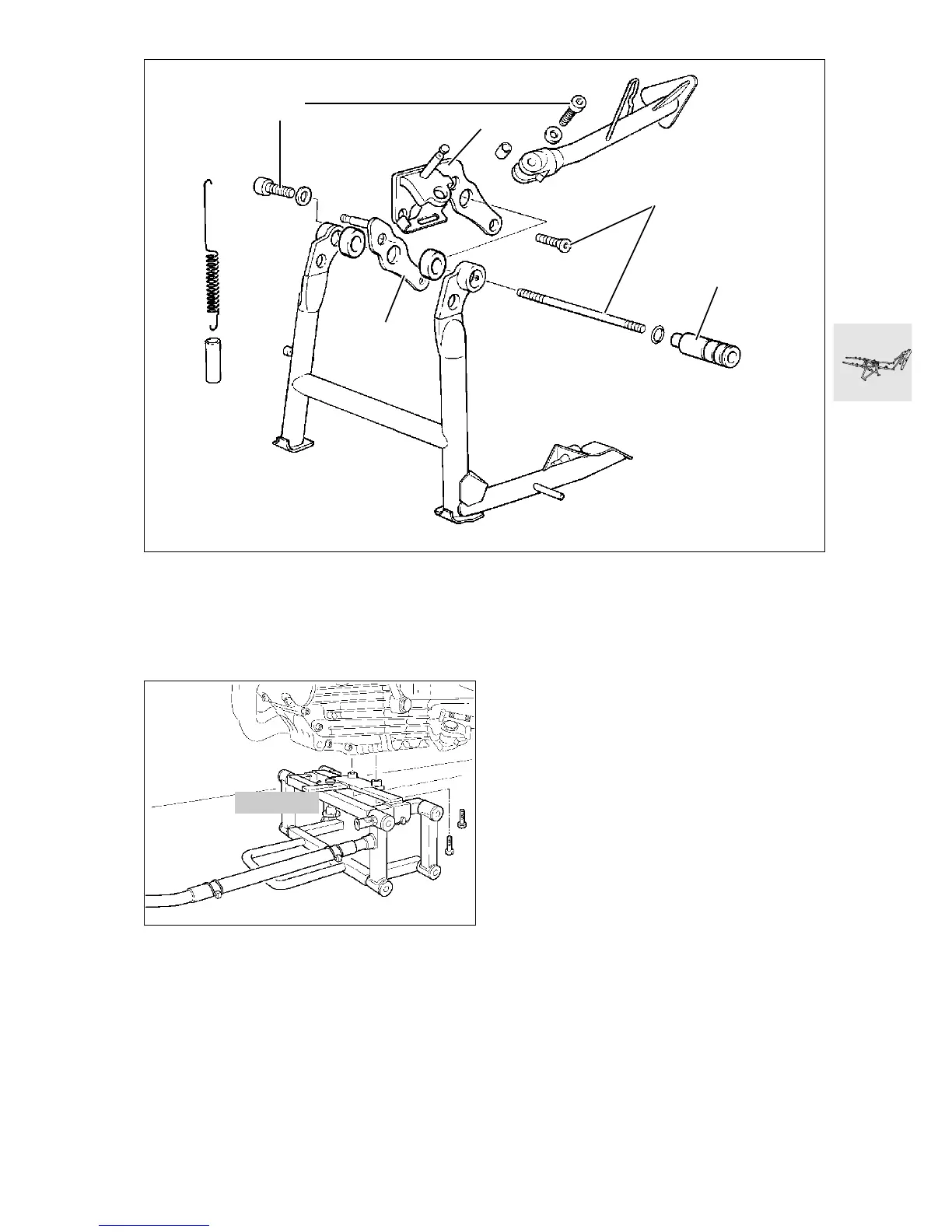

[RT/GS/R] Removing and installing
center stand
•
[GS] Remove the oil pan protection.
•
[RT] Remove the fairing spoiler.
•
Attach vehicle stand,
BMW No. 00 1 520,
[GS] with extension bushes and bolts,
BMW No. 00 1 527, to motorcycle.
•
Disconnect tension springs.
•
Remove left/right pivot bushes (1).
•
Remove center stand.
•
Disconnect plug from side stand switch.
•
Remove left/right pivot mounts (2).
•
Install in the reverse order of work.
Lubricant:.................. e.g. Staburags NBU 30 PTM
X Tightening torque:
Center stand to carrier plate
(clean thread + Loctite 2701)........................ 21 Nm
Carrier plate to engine block, M 12
(clean thread + Loctite 2701)........................ 72 Nm
Carrier plate at engine block, M8 countersunk screw
(clean thread + Loctite 2701)........................ 21 Nm
Side stand to pivot mount
(clean thread + Loctite 2701)........................ 42 Nm
1
2
2
v
2701
v
2701
GS460171
00 1 520
R46017
