32.12
Removing and installing throttle
cable
•
[RS] Remove left side fairing.
•
[GS/RT] Detach fuel tank and pull it to the rear.
•
Remove cable cover (1) from handlebar fitting
and disconnect cable.
•
Unfasten cable adjusting screw (2) on the right
throttle body.
•
Press in retaining spring (3) and disconnect ca-
ble.
•
Unfasten both cable adjusting screws (4) on left
throttle body
•
Press in retaining spring (5) and disconnect
cable
•
Install in the reverse order of work.
e Caution:
Install wire cable without kinking.
•
Adjust wire cable.
a See Group 00

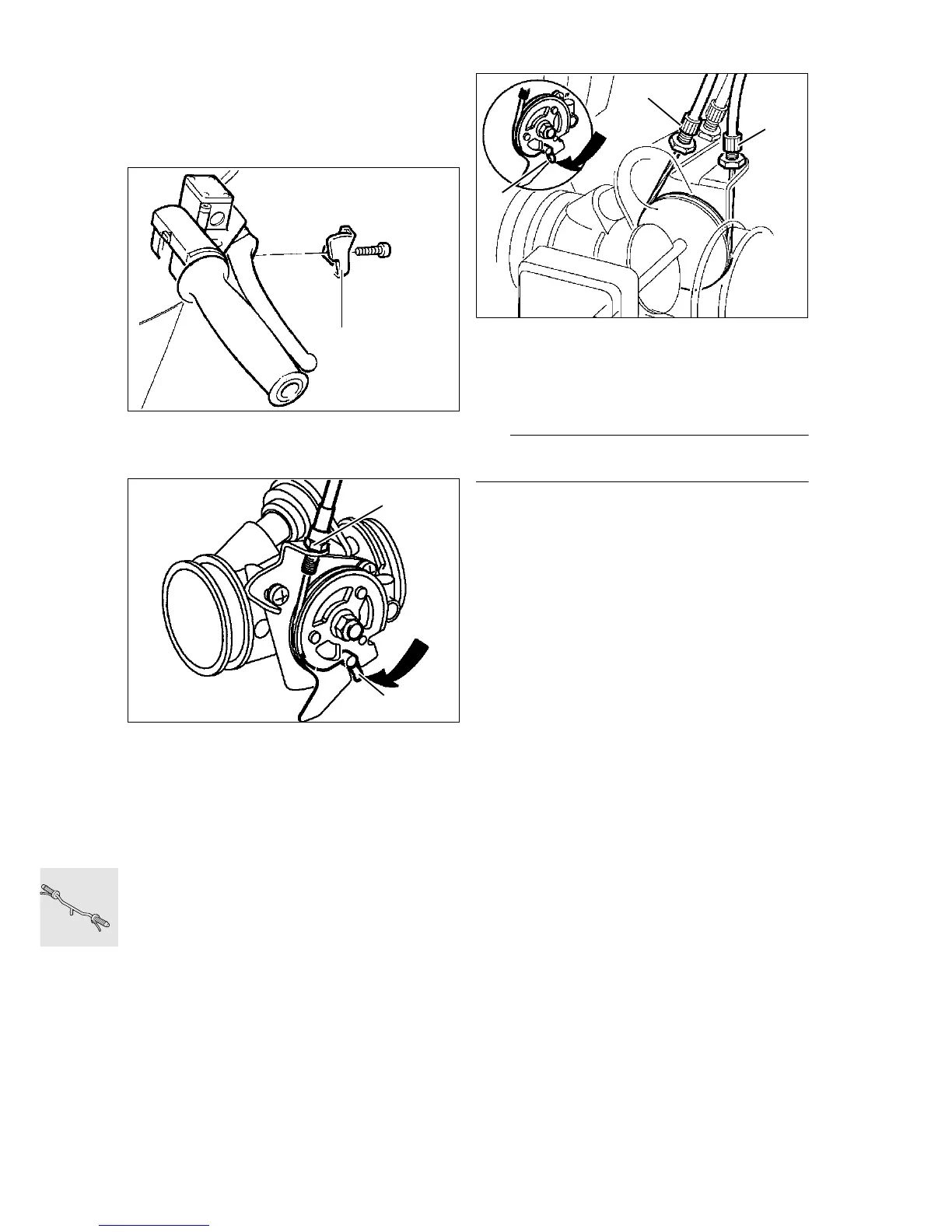

1
RS320041
2
GS320110
3
4
4
5
RS320050
