61.7
Removing and installing central
electrical equipment box
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove dualseat.
•
[RT] Remove small side fairing sections at left
and right.
•
[RT] Remove luggage rack/case holder.
•
[RS/R/RT] Take off rear fairing at left and right.
•
[RT] Remove lower rear section.
•
Take out retaining screws (1) for upper section of
central electrical equipment box.
•
Take out retaining screws (2) for lower section of
central electrical equipment box.
•
Remove cable tray.
•
If necessary, detach complete wiring harness
and remove it with the fuse box, or remove the
relays and relay bases.
•
Install in the reverse order of work.
•
After assembly, shorten the rubber tag on the
splash guard mount (arrow) to 10 mm (0.4 in).
Dismantling/assembling central
electrical equipment box
•

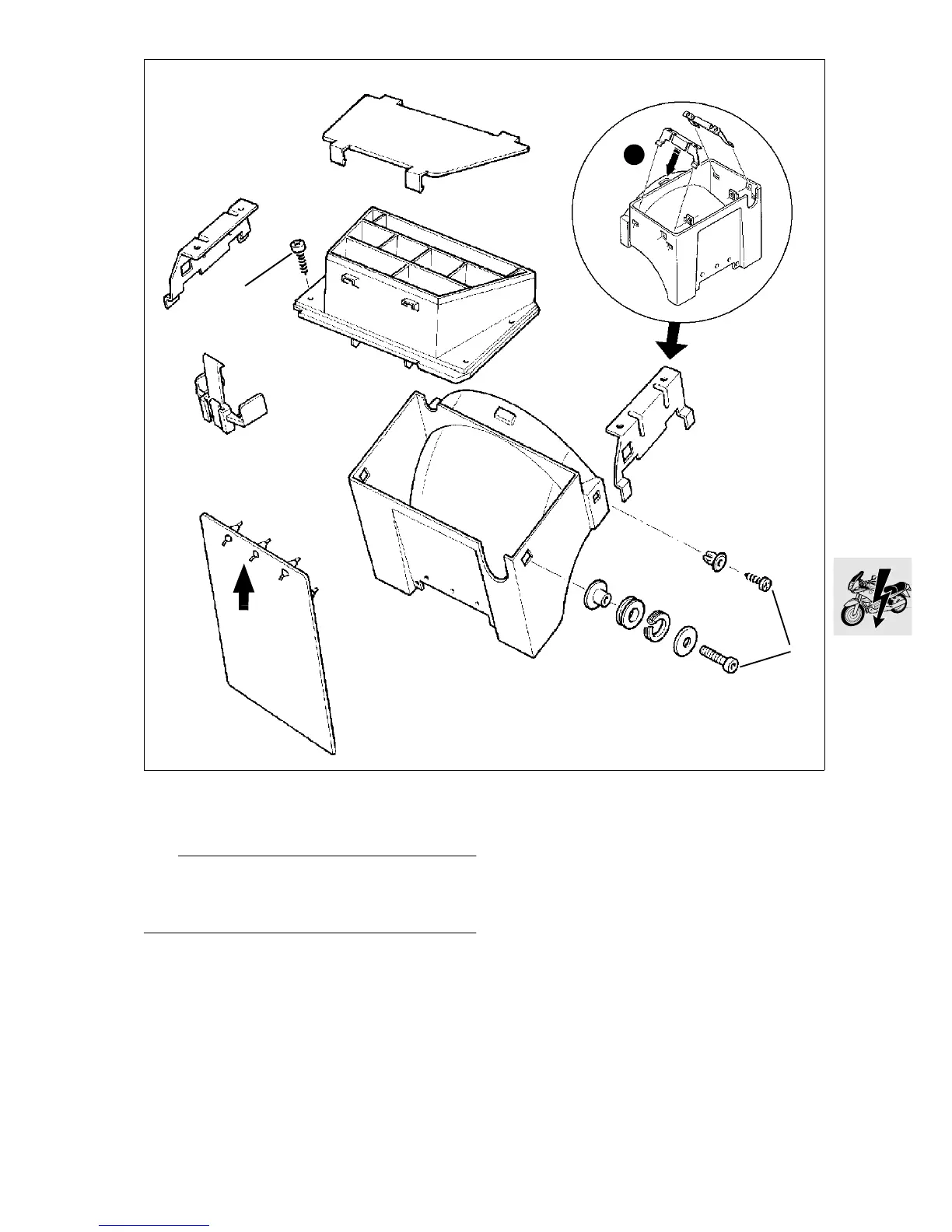

See detail drawing (3).
2
3
1
RS610062
