23.12

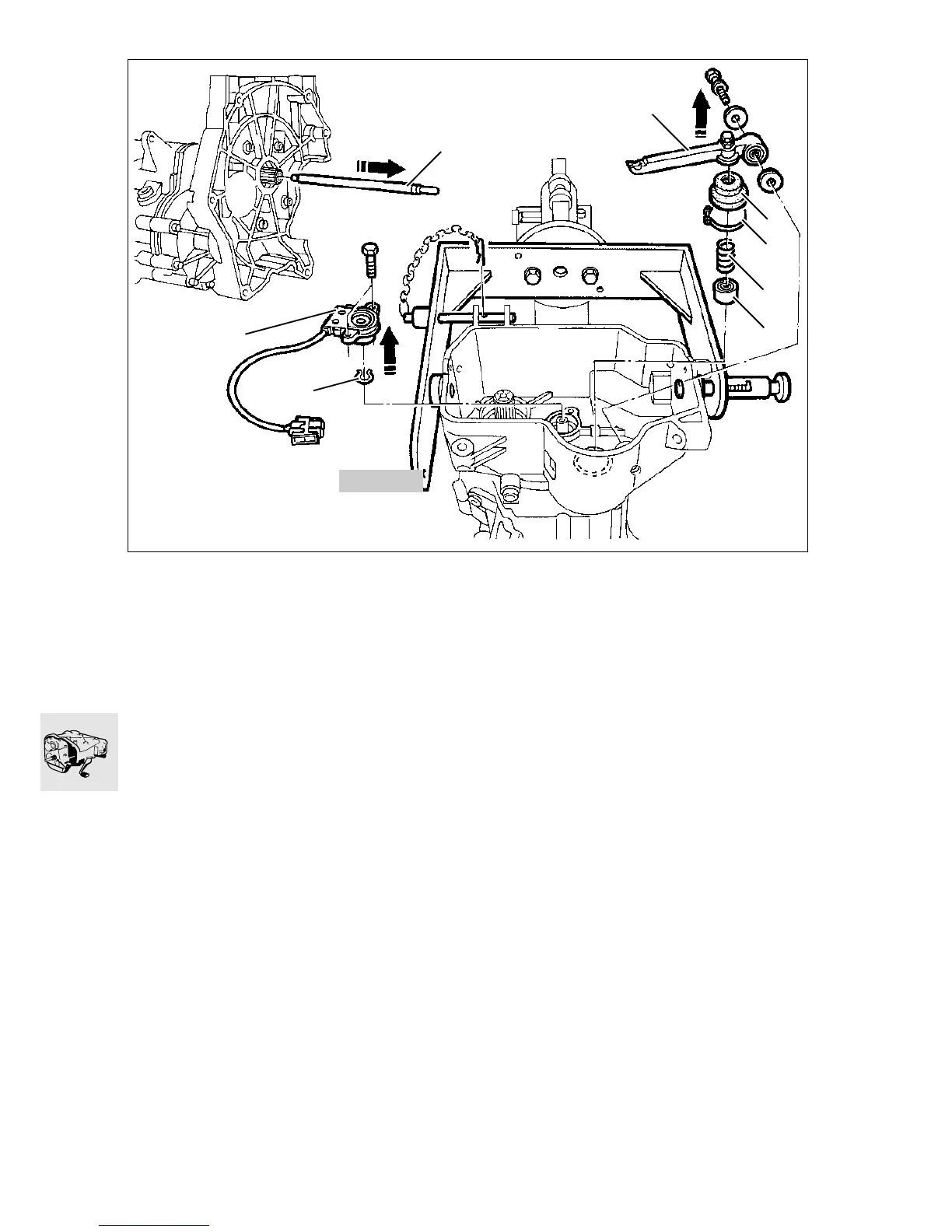

Dismantling/reassembling
•
Drain gearbox oil.
•
Remove clutch thrust rod (1).
•
Secure gearbox with assembly fixture,
BMW No. 23 1 610, to assembly stand.
•
Remove neutral switch (2).
•
Remove retaining ring (3) from selector drum.
•
Unfasten retaining screw on clutch lever (4).
•
Unfasten hose clip (5).
•
Remove sleeve (6), coil spring (7) and clutch
piston (8).
Replacing shaft seal on neutral switch
•
Remove shaft seal using a suitable tool.
•
Using light fingertip pressure, insert the shaft
seal fully.
Direction of installation:
....................................... spring facing oil chamber
23 1 610
4
6
5
7
8
1
2
3
R230020
