33.23
Removing, dismantling, reassem-
bling and installing rear swinging
arm

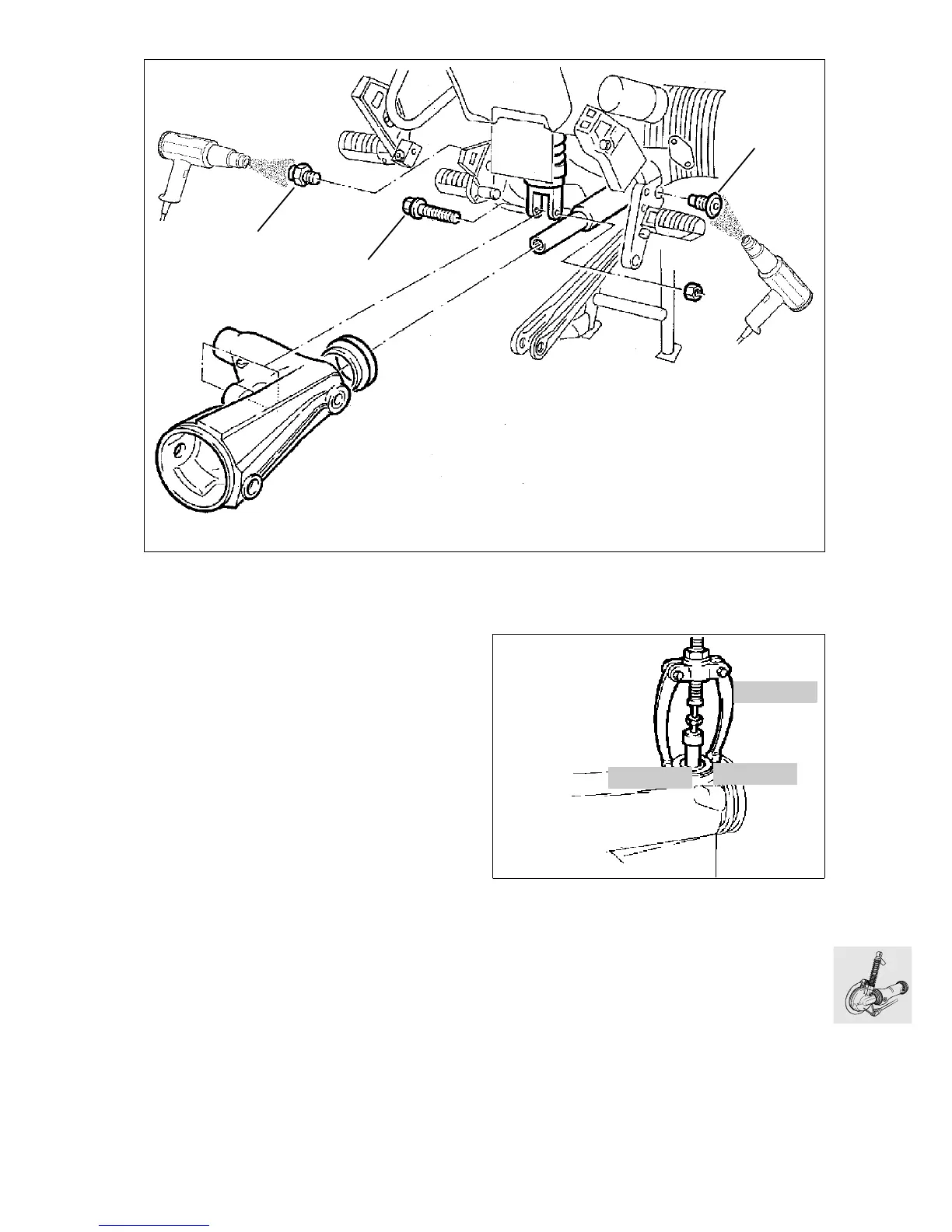

Removing rear swinging arm
•
Unfasten suspension strut mount (1).
•
[RT] Detach brake master cylinder from right
footrest plate.
•
[RT] Detach gear shift linkage from left footrest
plate.
•
[RT] Remove right and left footrest plates.
•
Heat free swinging arm bearing (2) to max.
120 °C/loosen.
•
Heat fixed swinging arm bearing (3) to max.
120 °C/unscrew.
•
Unfasten free swinging arm bearing
Removing and installing taper roller
bearing
•
Using counter-support, BMW No. 00 8 572, and
internal puller 21/2, BMW No. 00 8 571, pull out
taper roller bearing.
•
Pull out outer race with internal puller 21/5,
BMW No. 00 8 563.
•
To install the bearing, heat the swinging arm to
80 °C.
1
2
3
j
120
j
120
RS330031
00 8 572
00 8 563
00 8 571
LT330370
