23.15

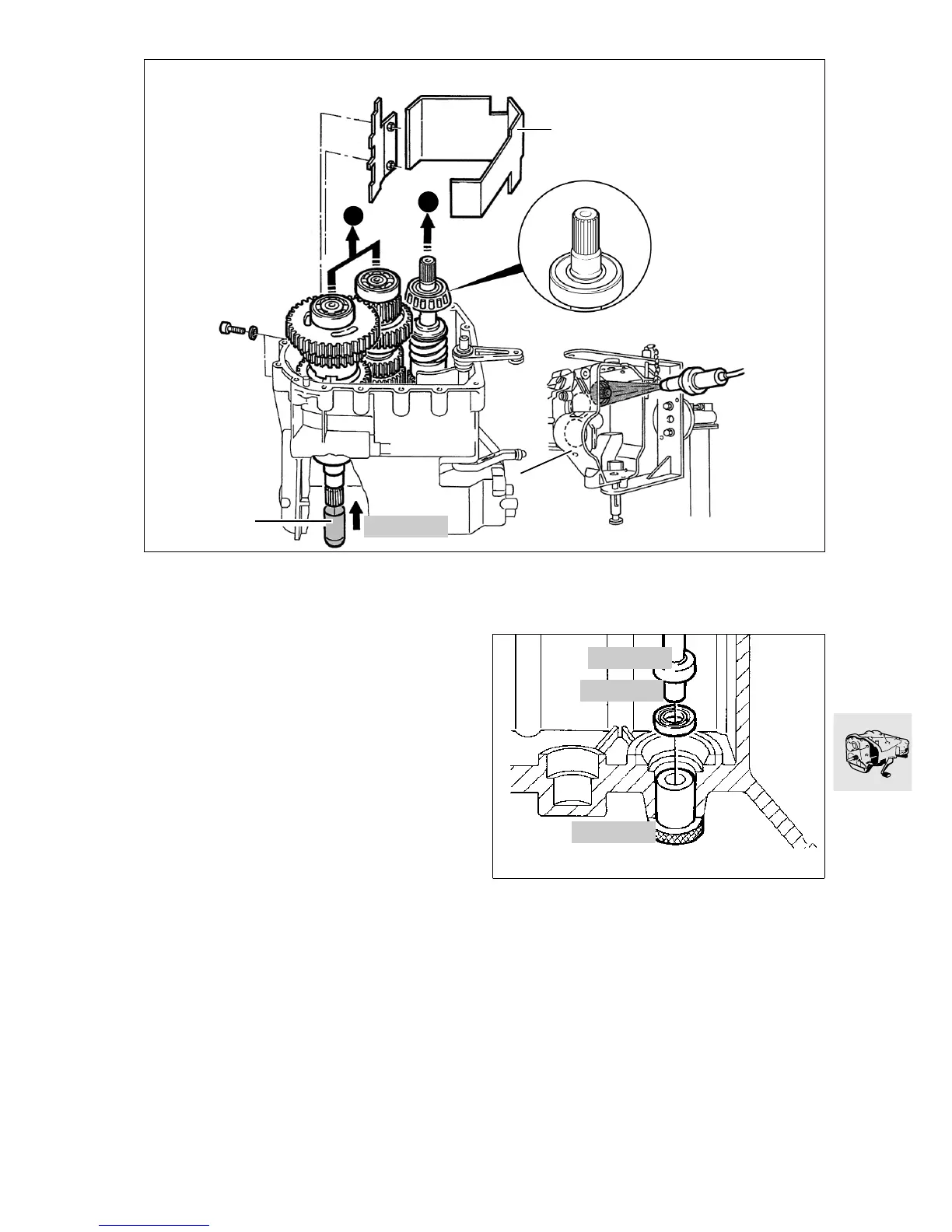

Removing gearbox shafts
•
Remove oil baffle plates (1).
•
[1993 model year] Pull input shaft (2) out of
gearbox housing.
•
Heat output shaft bearing point to 100 °C
•
[Clean Bearing input shaft] Heat bearing jour-
nals of input shaft and output shaft to 100 °C
•
[Full Clean Bearing kit] Heat all 3 bearing jour-
nals to 100 °C.
•
Place sliding sleeve (3), BMW No. 23 4 622, on
output shaft..
•
[1993 model year] Pull the idler and output shaft
(4) out of the gearbox housing together.
•
[from 1994 model year on] Pull the input, idler
and output shaft out of the gearbox housing to-
gether.
Removing and installing input shaft
sealing ring at housing end
•
Force shaft seal inwards using drift.
•
Drive in the sealing ring with a drift and guide
sleeve, BMW No. 23 4 650, and with handle,
BMW No.005500.
2
3
1
j
23 4 622
4
100
Clean Bearing
RT230051
00 5 500
23 4 650
23 4 650
RS230051
