46.44

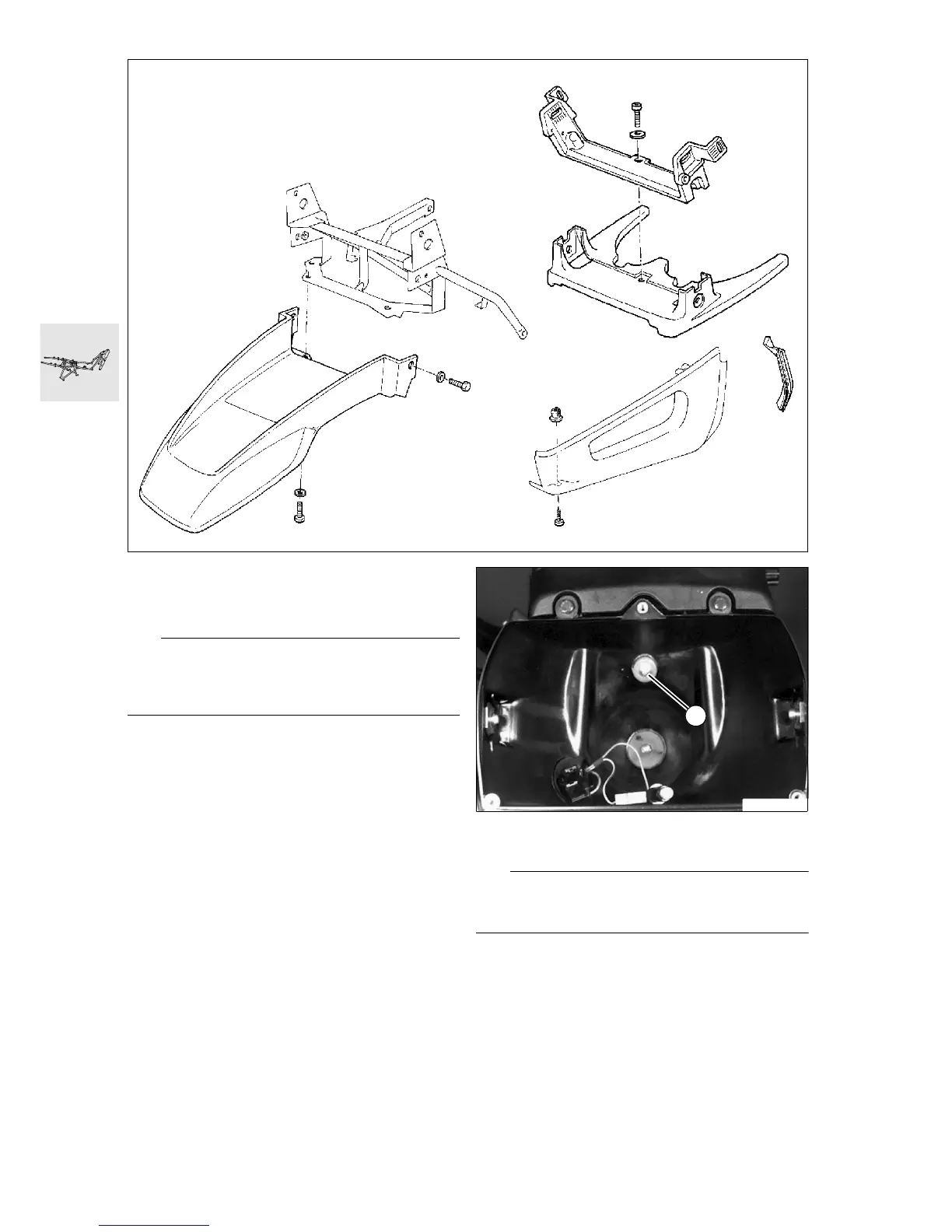

[GS] Removing and installing front
fairing
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove side sections of fairing.
•
Remove top mudguard.
•
Remove windshield.
•
Remove headlight insert.
•
Detach instrument cluster.
L Note:
Center retaining screw (1) is inside headlight
housing.
•
Remove headlight holder.
•
Remove indicator glasses, pull off cable connec-
tor and draw cable through indicator holder.
•
Remove indicators.
•
Pull front trim section/top cover upwards to re-
move.
•
Install in the reverse order of work.
