12.8
Removing and installing alternator
•
Remove dualseat.
•
[RS/GS/RT] Remove side sections of fairing.
e Caution:
Disconnect ground (earth) lead from battery. Insu-
late ground (earth) lead.
•
[RS] Remove inner fairing panel at fuel tank.
•
[R] Remove fuel tank cover.
•
Unscrew fuel tank mount.
•
Seal, loosen and pull off fuel feed and return line
with hose clip, BMW No. 13 0 010.
•
Remove vent pipes.
•
Separate plug for fuel pump.
•
Remove fuel tank.
•
Remove Motronic control unit.
•
[ABS] - detach pressure modulator.
•
Remove front cover from engine.
•

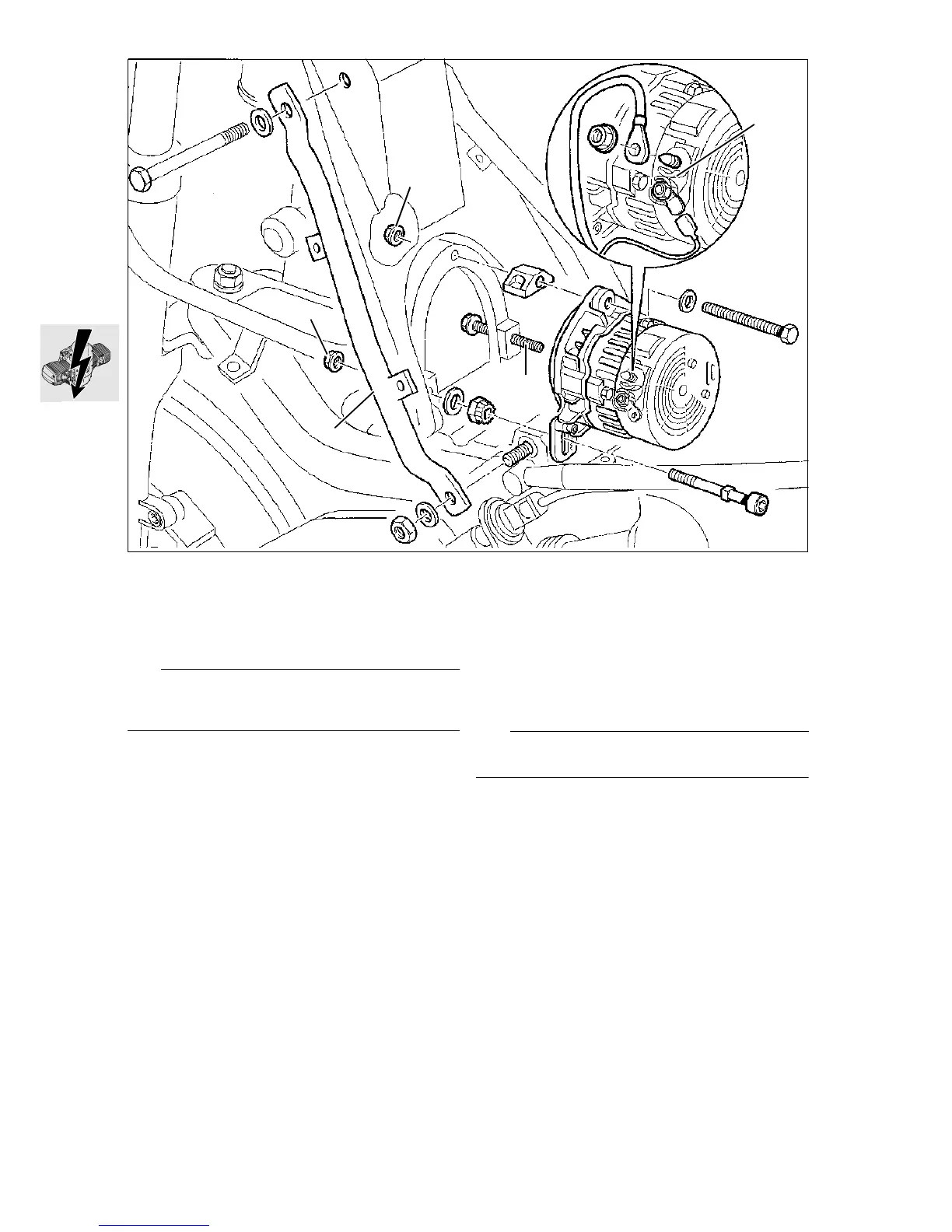

Detach connecting leads (1) from alternator.
•
Loosen Poly-V belt pulley at alternator.
•
Unscrew alternator mount (2).
•
Take off Poly-V belt pulley and belt.
•
Remove strut (3) from frame at left.
•
Remove alternator.
e Caution:
Do not scratch other parts; disconnect if necessary.
•
Install in the reverse order of work.
2
2
2
1
3
RS120020
