63.8

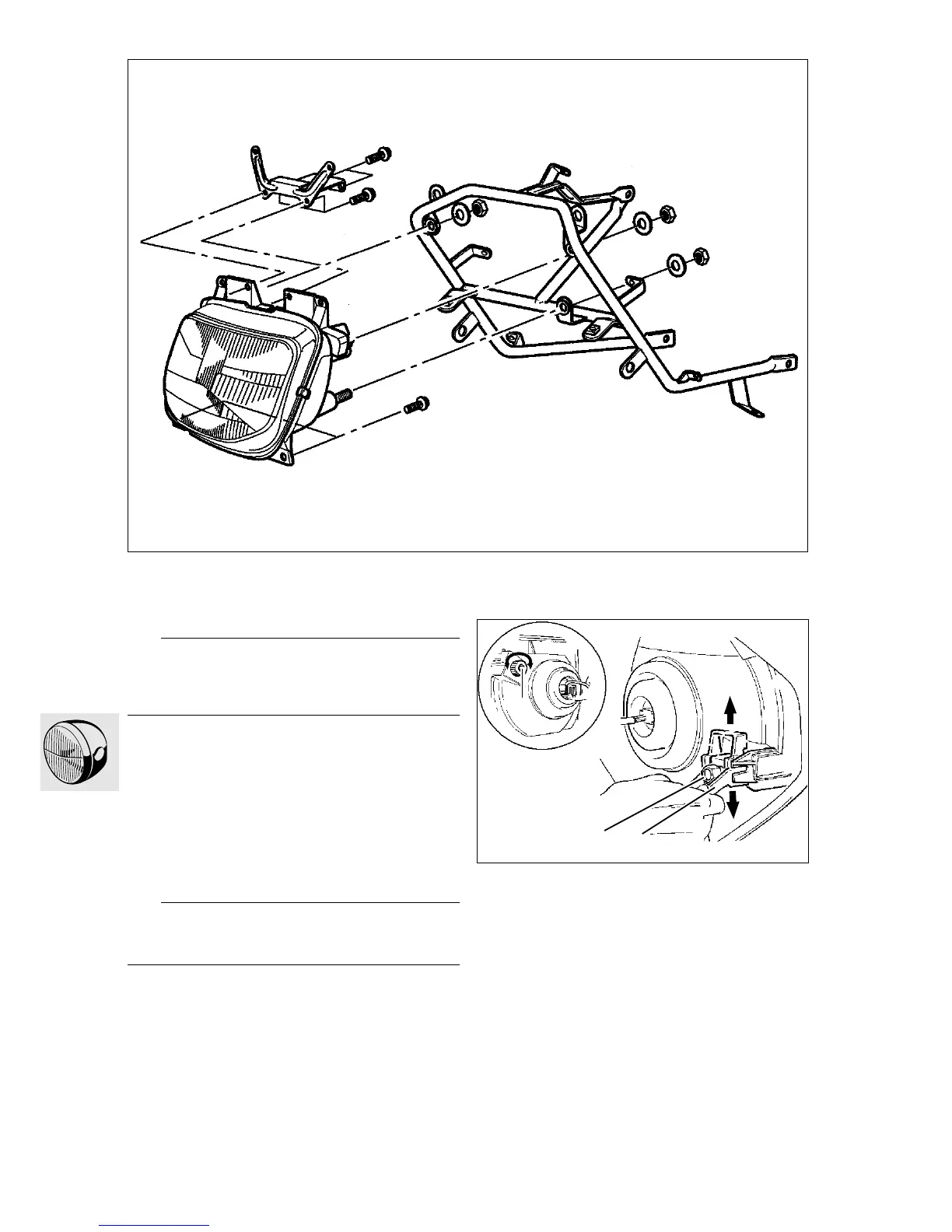

[RS] Removing and installing head-
light
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove side trim.
•
Remove inner cover for trim.
•
Detach windshield.
•
Detach instrument bracket.
•
Detach front section of trim.
•
Detach headlight at fairing holder.
•
Detach headlight at front section of fairing.
•
Detach windshield holder at headlight.
•
Remove headlight.
•
Install in the reverse order of work.
e Caution:
Do not touch inner surface of reflector or bulbs with
bare hands.
Adjusting headlight
•
Move swivel lever (1) to top position.
•
Correct headlight beam throw with adjusting
screw (2).
Counter-clockwise rotation: .......................longer
Clockwise rotation: ....................................shorter
Adjustment distance:
..... -15 cm (5.91 in) at a distance of 10 m (32.81 ft)
•
Adjust side angle with adjusting screw (3).
RS630010
3
2
1
RT630020
