46.48

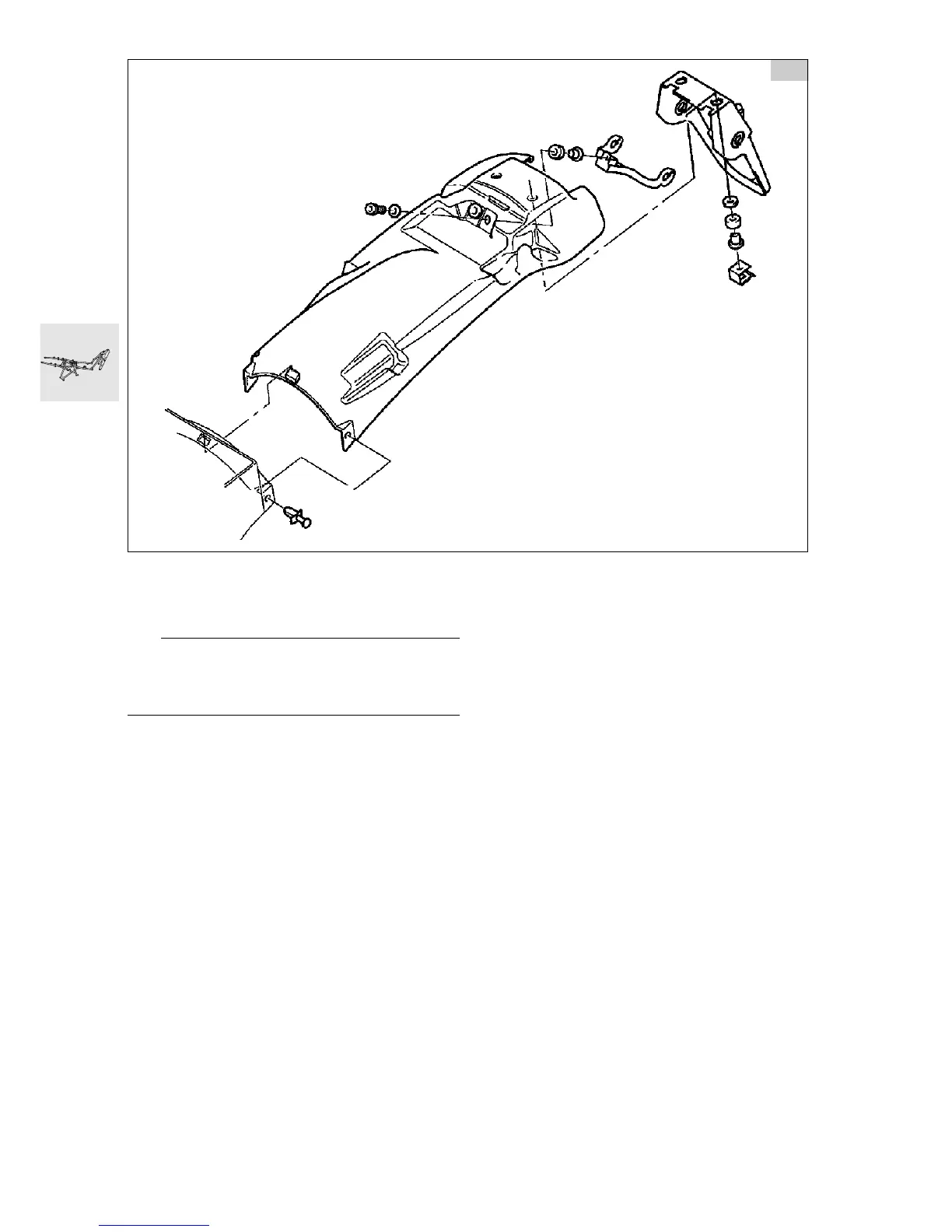

[GS/R] Removing and installing
rear
mudguar
d
e
Caution:
Sw
itch
off
igni
tio
n.
Disconnect ground (earth) lead from
battery.
Insulate ground (earth) le
ad.
•
Remove dualseat.
•
[GS]
Remove tool b
ox.
•
[R]
Rem
ove r
ear
fair
ing.
•
Disconnect plugs and
leads from rear
light and
indic
ato
rs.
•
Re
move
numb
er pl
ate br
acket.
•
Detach mudg
uard.
•
Remove wiring h
arness from rear
section.
•
Install i
n the reverse ord
er of work.
GS
GS460251
390
392
