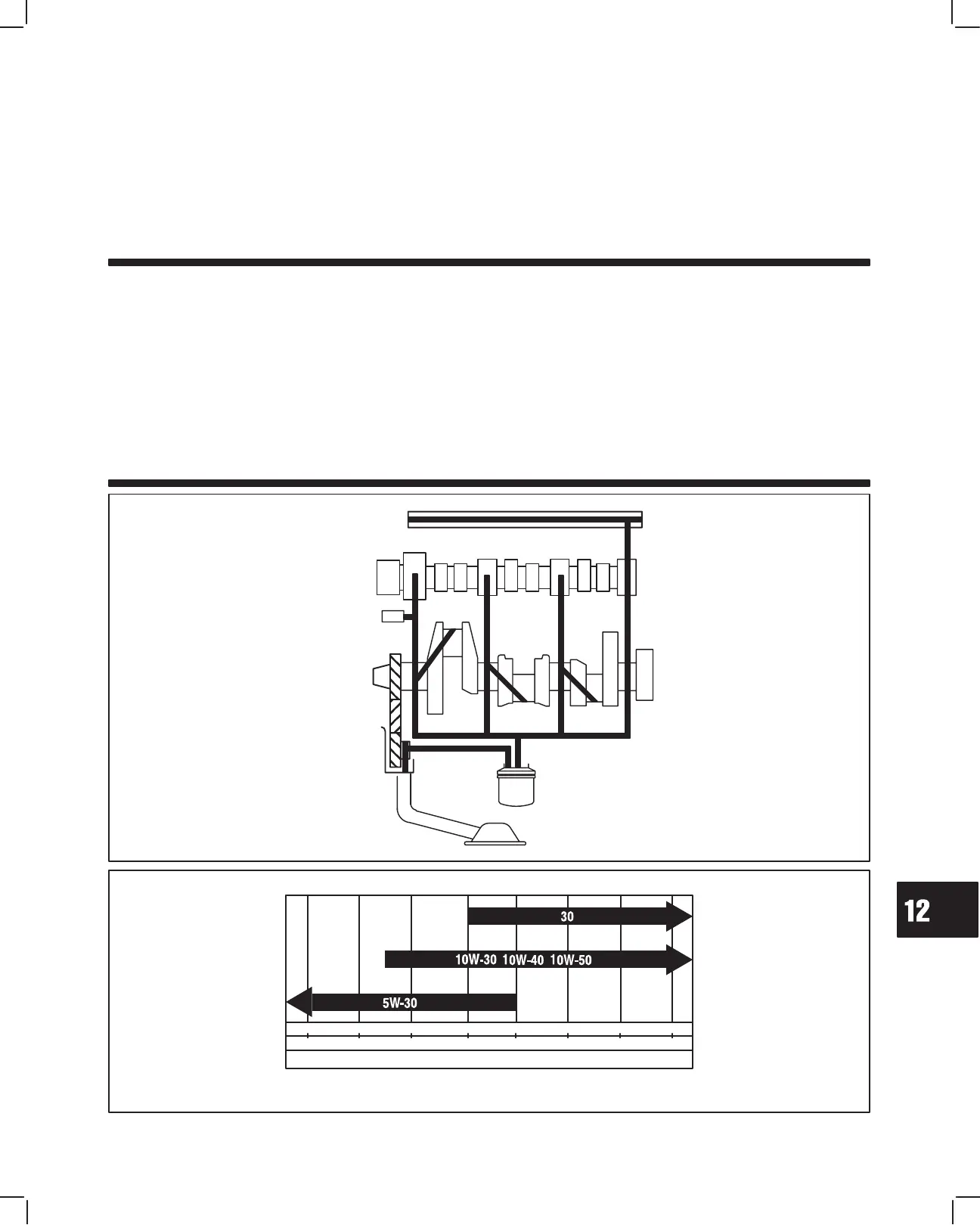

BRIGGS & STRATTON DAIHATSU 3 CYLINDER
LIQUID-COOLED DIESEL ENGINE REPAIR MANUAL (MS-1055)
Section 12
Lubrication System
Page
DESCRIPTION 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHANGE OIL 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHANGE OIL FILTER 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECK OIL PRESSURE 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DISASSEMBLE GEAR CASE
Remove Oil Pump 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASSEMBLE GEAR CASE
Install Oil Pump 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section Contents
Recommended SAE Viscosity Grades
°C
-34
STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
°F
-30 -10 10 50 70 90 110
-23 -12 0 10 21 32 43
32
*
* A synthetic 5W-30 oil may be used.
Use a high quality detergent oil classified ‘‘For Service SE/CD” or higher. Use no special additives with recommended oils.
ROCKER ARM SHAFT
CAMSHAFT
OIL FILTER
OIL PUMP
CRANKSHAFT
OIL STRAINER
OIL NOZZLE
