2
10
CYLINDER HEAD AND VALVES

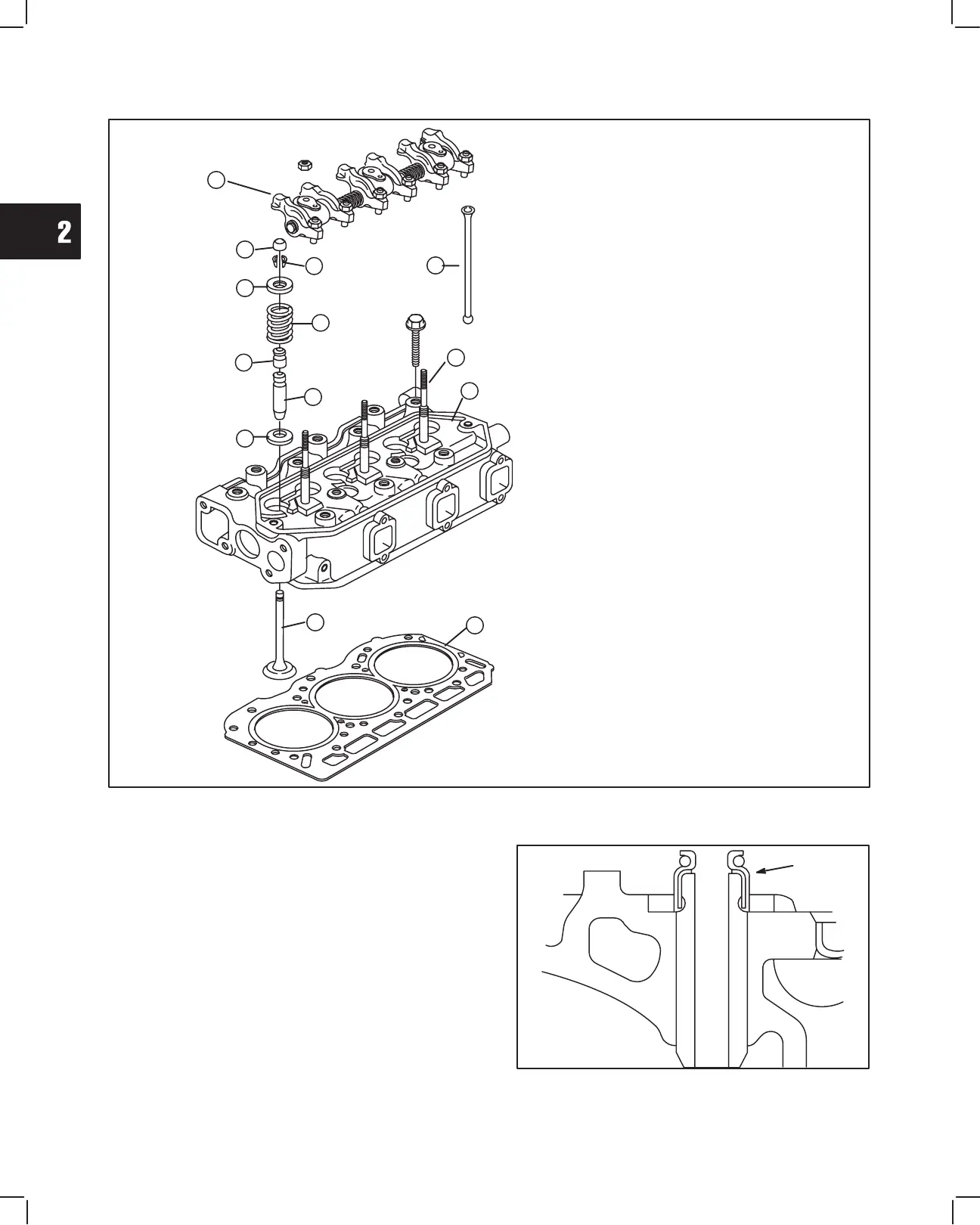

Fig. 28 – Cylinder Head Components
ASSEMBLE CYLINDER HEAD
1. Cylinder Head
2. Cylinder Head Gasket
3. Valve Stem Cap
4. Valve Spring Retainer Locks
5. Valve Spring Retainer
6. Valve Spring
7. Valve
8. Valve Spring Seat
9. Valve Stem Seal
10. Valve Guide
11. Push Rod
12. Rocker Arm Assembly
13. Rocker Arm Stud
3
4
5
6
7
1
2
8
10
9
NOTE: When replacing rocker arm studs,
torque to 20.0 Nm (180 in. lbs.).
13
11
12
1. Install new valve stem seals, Fig. 29. Oil inner
surface and lip of seal before installing. Press seal
on to valve guide bushing until it bottoms.
Fig. 29 – Install Valve Stem Seals
VALVE STEM
SEAL
(CUTAWAY VIEW)
