CYLINDER HEAD AND VALVES
REMOVE CYLINDER HEAD
ALWAYS disconnect fuel shut off solenoid wire
from injection pump before checking compres-
sion, to prevent accidental starting.
Drain cooling system and disconnect radiator hoses.
1. Remove the following parts from engine,
Fig. 1-Fig. 5:
a. Alternator adjusting bracket screw
b. V-belt
c. Fan (if equipped)

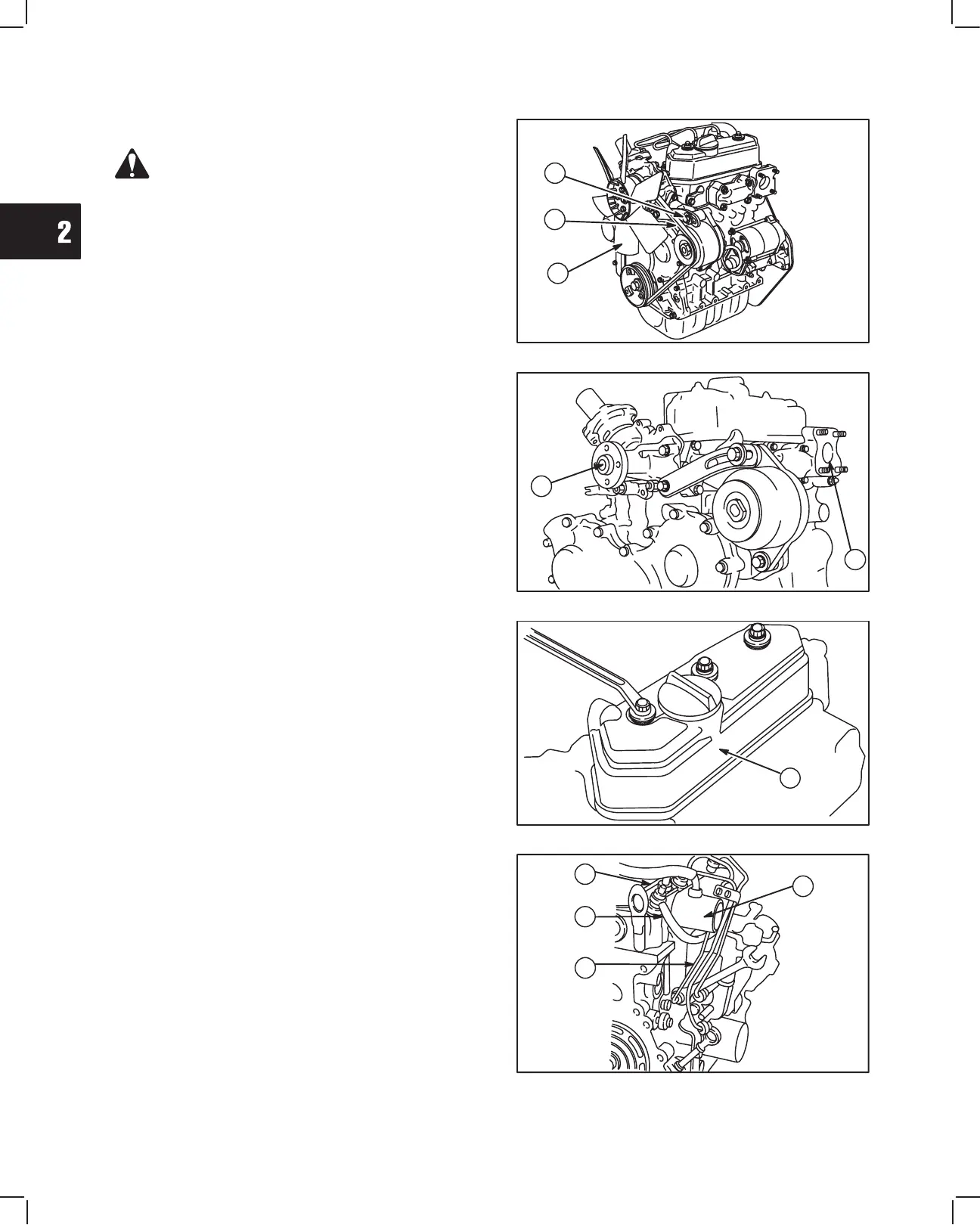

Fig. 1 – Remove V-belt And Fan
C
B
A
Fig. 2:
d. Water pump
e. Exhaust manifold
NOTE: Remove exhaust system before removing
exhaust manifold.
Fig. 2 – Remove Water Pump And Exhaust Manifold
D
E
Fig. 3:
f. Valve cover
Discard rubber seal.
Fig. 3 – Remove Valve Cover
F
NOTE: Clean areas around fuel lines and injec-
tors to prevent dirt entry.
Fig. 4:
g. Fuel delivery lines
h. Fuel return line
i. Glow plug wiring
j. Breather tube and intake manifold
Fig. 4 – Remove Fuel Lines
G
H
I
J
