LUBRICATION SYSTEM

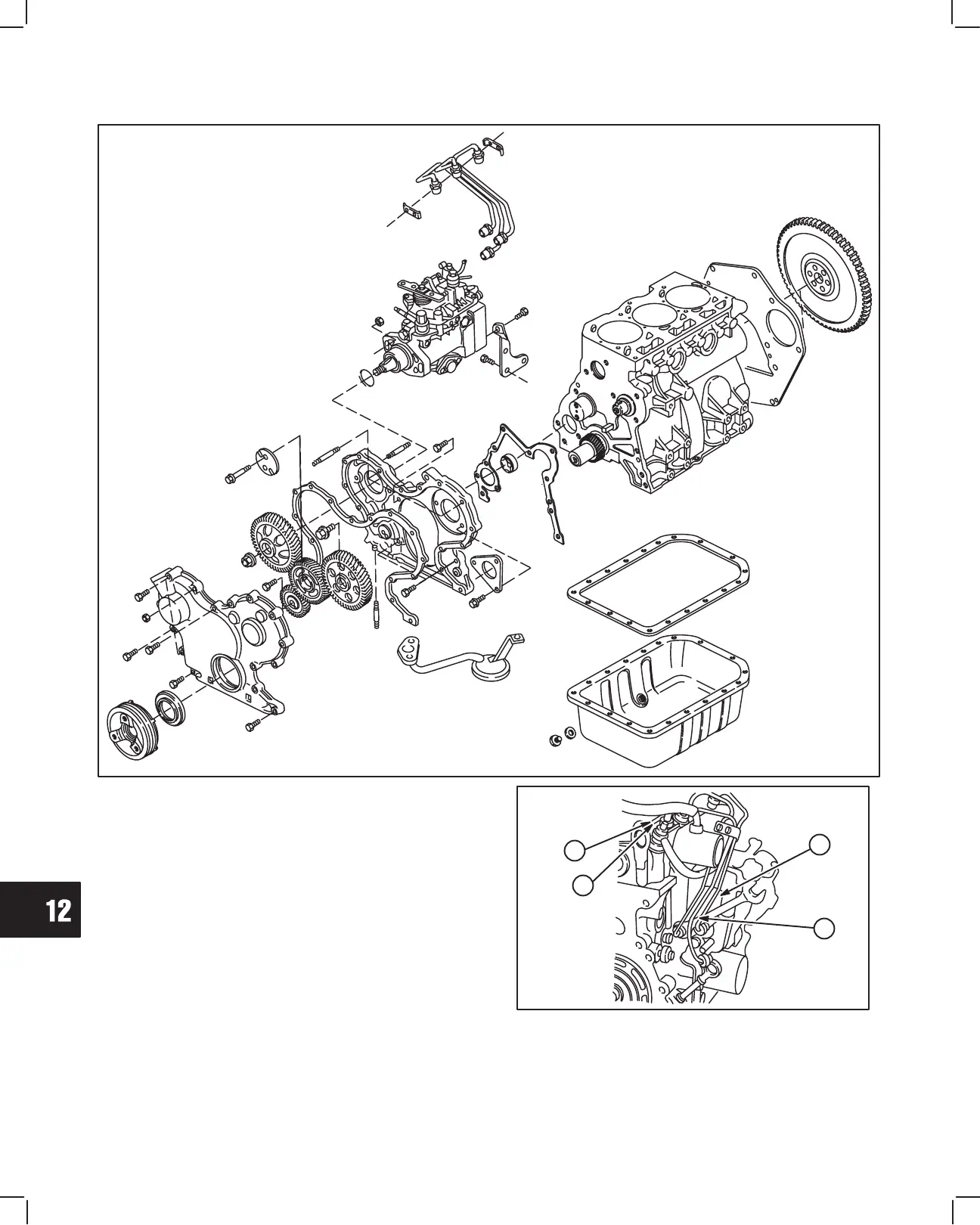

Exploded View

DISASSEMBLE GEAR CASE

Remove Oil Pump

Make sure that #1 cylinder is at TDC, compression

stroke. See Section 2.

Remove V-belt and fan (if equipped). Drain oil from

engine.

NOTE: Clean areas around fuel lines and injec-

tors to prevent dirt entry.

1. Remove the following parts, Fig. 6.

a. Glow plug wiring.

b. Glow plugs.

c. Injector pump bracket.

d. Remove fuel delivery lines.

Fig. 6 – Remove Fuel Delivery Lines
