CYLINDER BLOCK DISASSEMBLY
CYLINDER BLOCK DISASSEMBLY
1. Remove cylinder head. See Sec. 2.
2. Remove oil pan, oil pick up tube, timing cover,
gears and gear case. See Sec. 3.
3. Remove flywheel and rear seal retainer. See
Sec. 4.

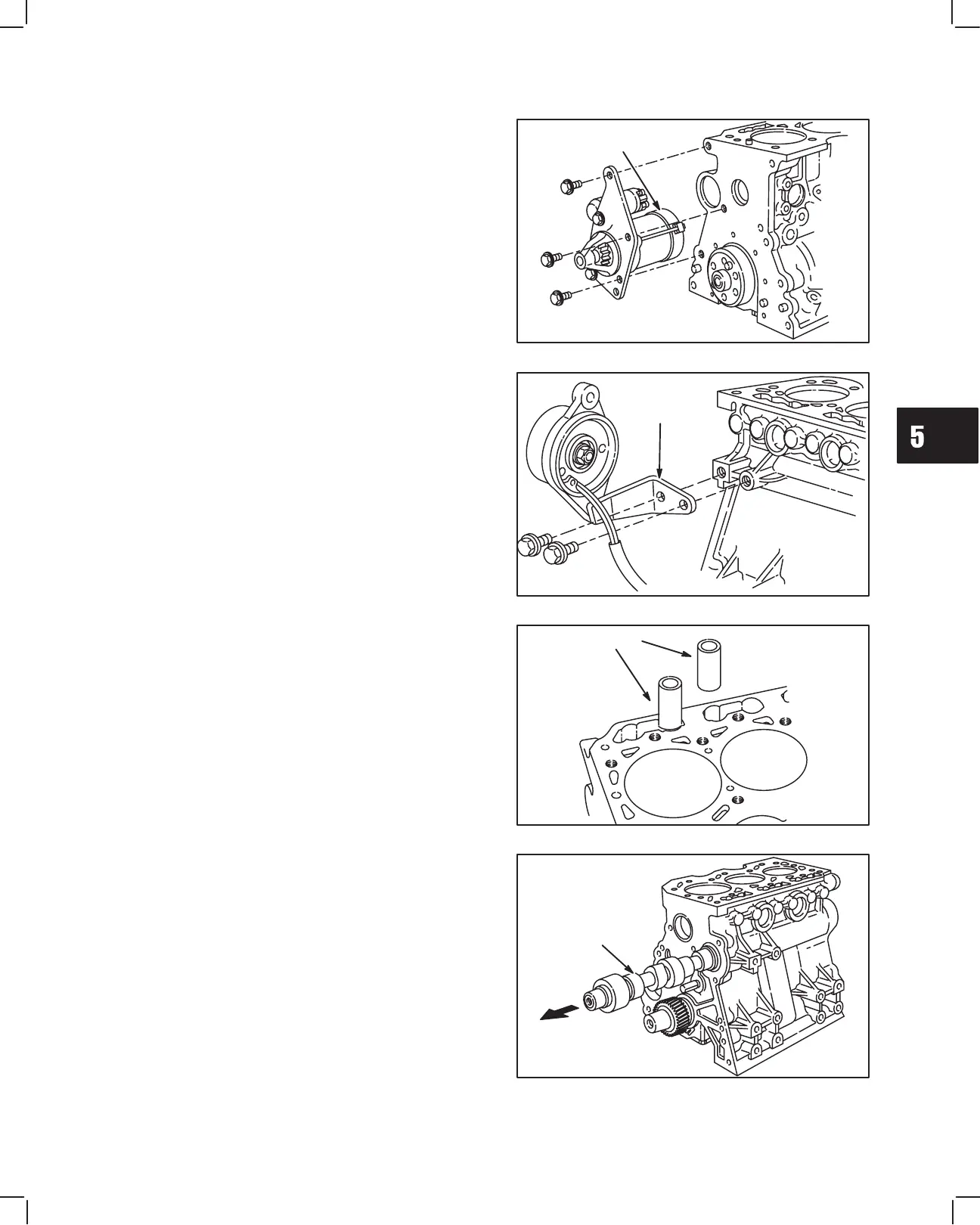

4. Remove starter motor, Fig. 1.
Fig. 1 – Removing Starter And Bracket
STARTER MOTOR
5. Remove alternator bracket and alternator, Fig. 2.
Fig. 2 – Removing Alternator
ALTERNATOR
BRACKET
6. Remove valve lifters, Fig. 3.
a. Number lifters so that they may be re-installed
in the same position.
Fig. 3 – Removing Valve Lifters
VALVE LIFTER
7. Remove camshaft, Fig. 4.
NOTE: Use care when removing camshaft to
prevent damaging cam bearing, journals
and lobes.
Fig. 4 – Removing Camshaft
CAMSHAFT
