TURBOCHARGER
INSTALL TURBOCHARGER
1. Install the turbocharger assembly with new
gasket.
a. Torque nuts (3) to 25 Nm (18.0 ft.-lb).

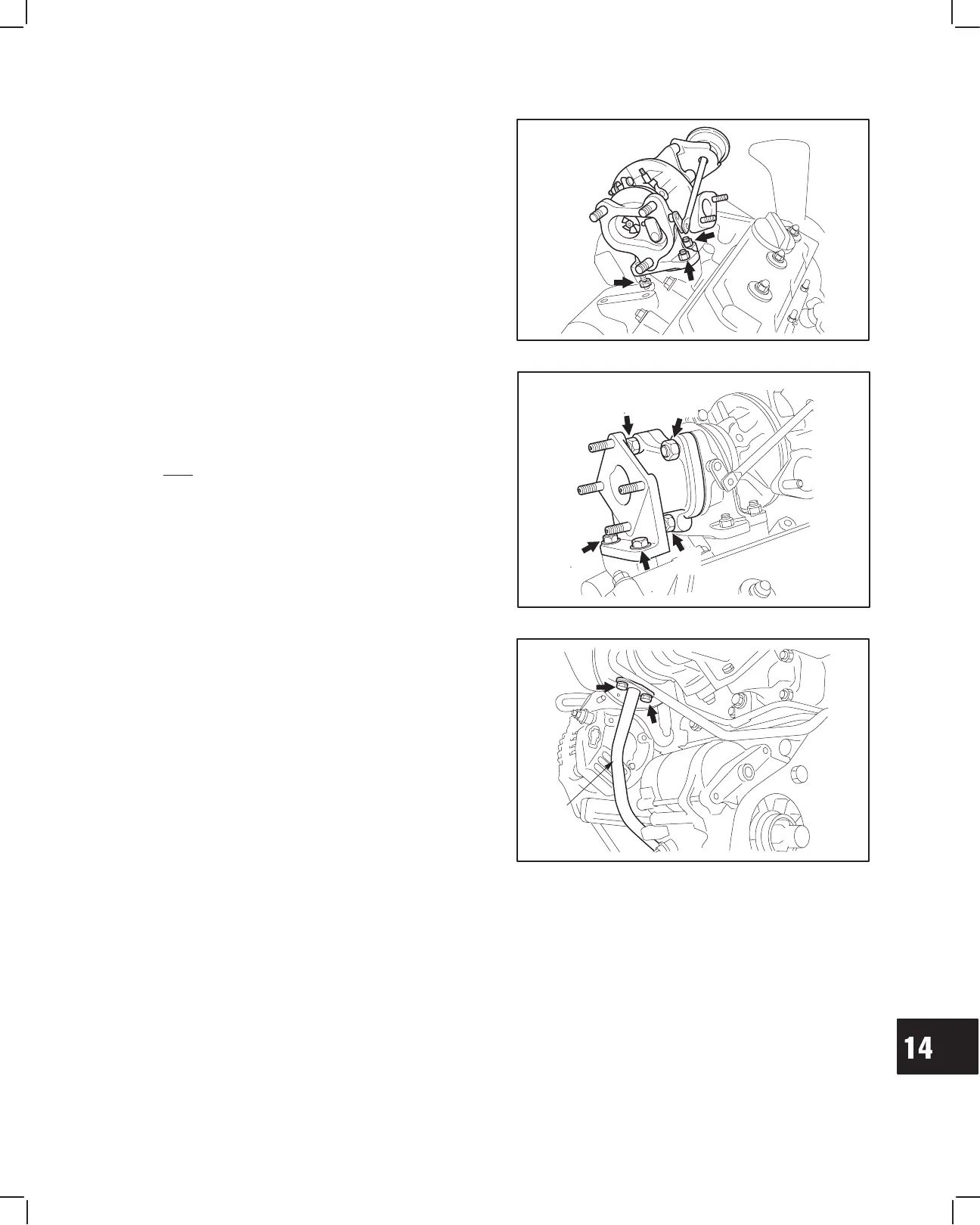

Fig. 29 – Installing Turbocharger Assembly
2. Install the turbocharger bracket with new gasket.
a. Temporarily tighten the nuts and bolts
until the flange surfaces of the turbocharger,
exhaust manifold and turbocharger stay in
contact each other.
b. First torque nuts to 34.0 Nm (25.0 ft.-lb)
c. Then torque screws to 29.0 Nm (20.0 ft.-lb)
Fig. 30 – Installing Turbocharger Bracket
3. Install oil outlet line.
a. Insert the oil outlet tube into the cylinder block
with new ‘‘O” ring.
b. Assemble to turbocharger with new gasket.
c. Torque screws to 8.0 Nm (70.0 in-lb).
Fig. 31 – Installing Oil Outlet Tube
OIL
OUTLET
LINE
To Next Page
