11
20
STARTER SYSTEM
Remove Solenoid
1. Remove nut and field coil wire from stud terminal
on solenoid, Fig. 52.

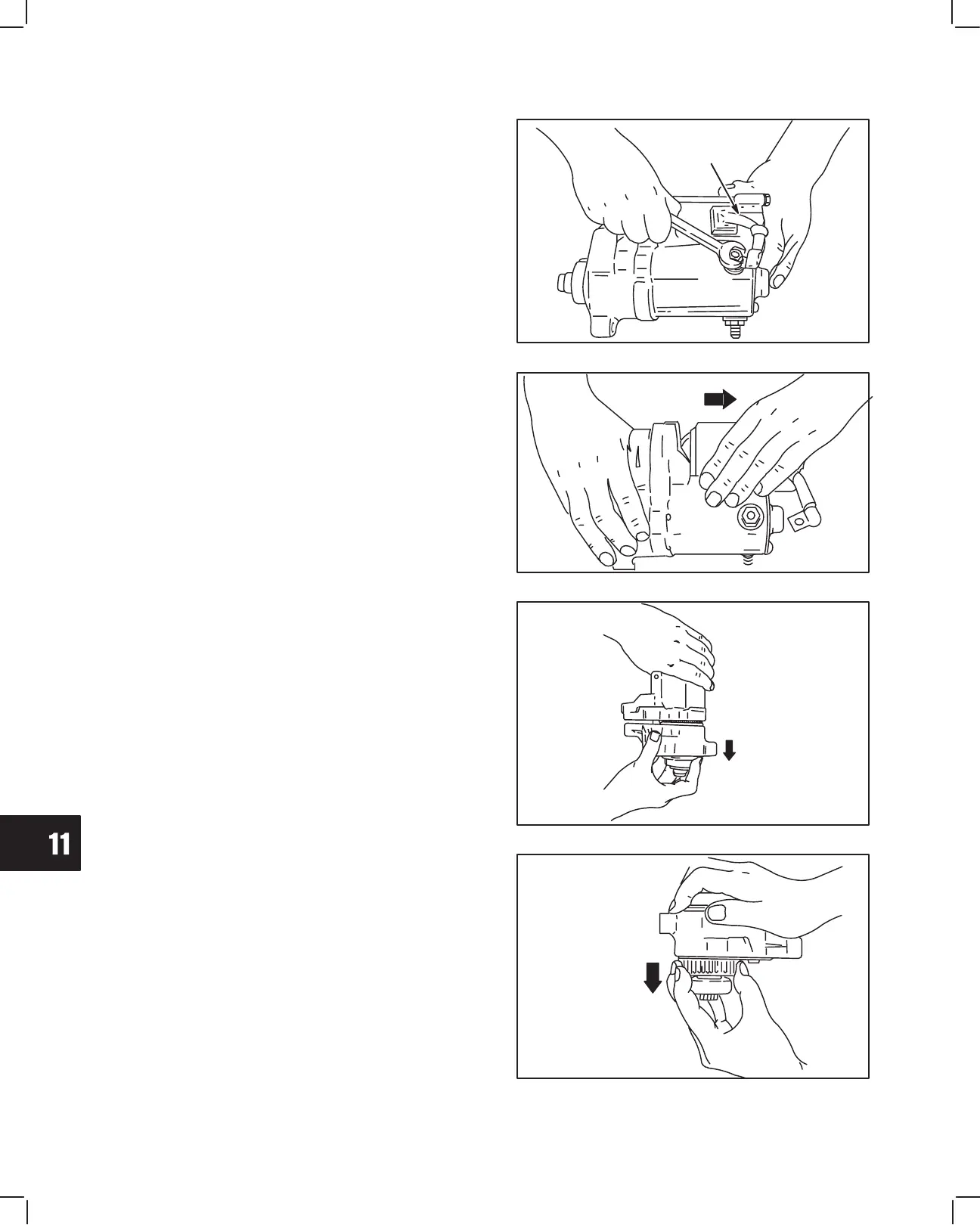

Fig. 52 – Removing Field Coil Wire
FIELD COIL WIRE
2. Remove through bolts and starter motor, Fig. 53.
DO NOT remove armature from starter housing or it
will be necessary to re-assemble brushes to armature.
Fig. 53 – Removing Starter Motor
3. Remove two drive end cap screws. Hold starter in
vertical position with drive housing down and
separate solenoid housing from drive housing,
Fig. 54. Note position of solenoid return spring
and ball.
NOTE: The solenoid must be replaced as an
assembly.
Fig. 54 – Removing Solenoid
DRIVE
HOUSING
DOWN
Remove Pinion And Clutch Assembly
1. Remove drive gear from bearing. Remove bearing
retainer and five roller bearings, Fig. 55.
2. Remove pinion and clutch assembly from drive
housing.
Fig. 55 – Removing Pinion And Clutch
PINION
AND CLUTCH
