TURBOCHARGER
11. Install breather tube as shown.
12. Install muffler or exhaust pipe.
13. Connect the air hose connecting the air cleaner to
the turbocharger.
PULL

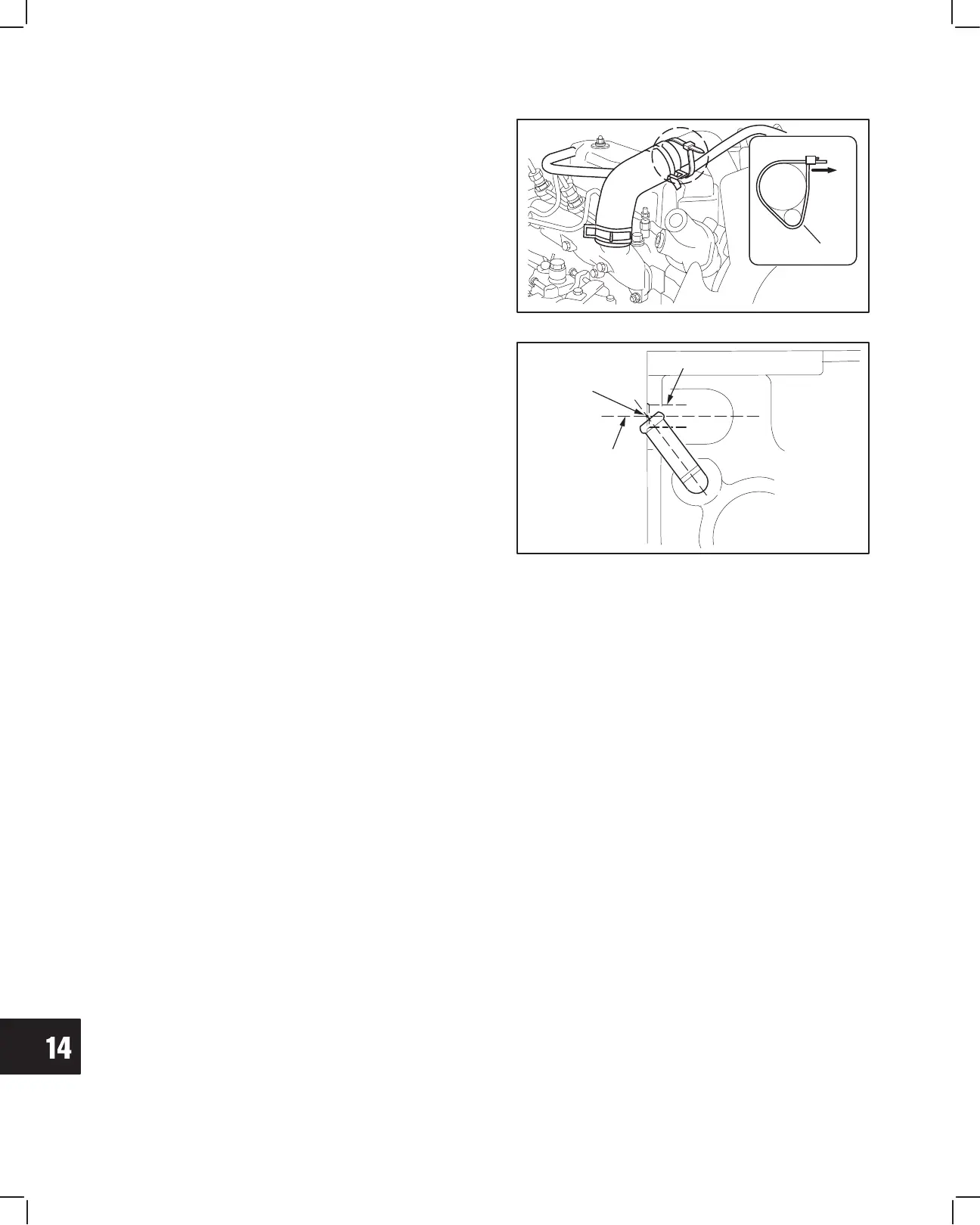

Fig. 40 – Installing Clamp
PIPE
BREATHER TUBE
INSTALLATION OF COOLANT INLET TUBE
1. Apply sealer to the portion of tube that is to be
installed in cylinder block.
2. Align the center of tube with the center of M10
thread at the rear end of the cylinder block.
3. Press-in tube until flange contacts the cylinder
block.
Fig. 41 – Installing Tube
ALIGN THIS
POINT
M10 THREAD
CYLINDER BLOCK
CENTER OF M10
THREAD
