BRIGGS & STRATTON DAIHATSU 3 CYLINDER
LIQUID-COOLED DIESEL ENGINE REPAIR MANUAL (MS-1055)
Section 4
Flywheel and Rear Seal Retainer
Section Contents
Page
REMOVING OIL PAN AND FLYWHEEL 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOVING REAR SEAL RETAINER 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLACING OIL SEAL 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLING REAR SEAL RETAINER AND FLYWHEEL 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALL OIL PAN 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOVING PAN AND FLYWHEEL
Drain oil from engine.
1. Remove oil pan screws and nuts. Remove oil pan
and discard gasket Fig. 1.

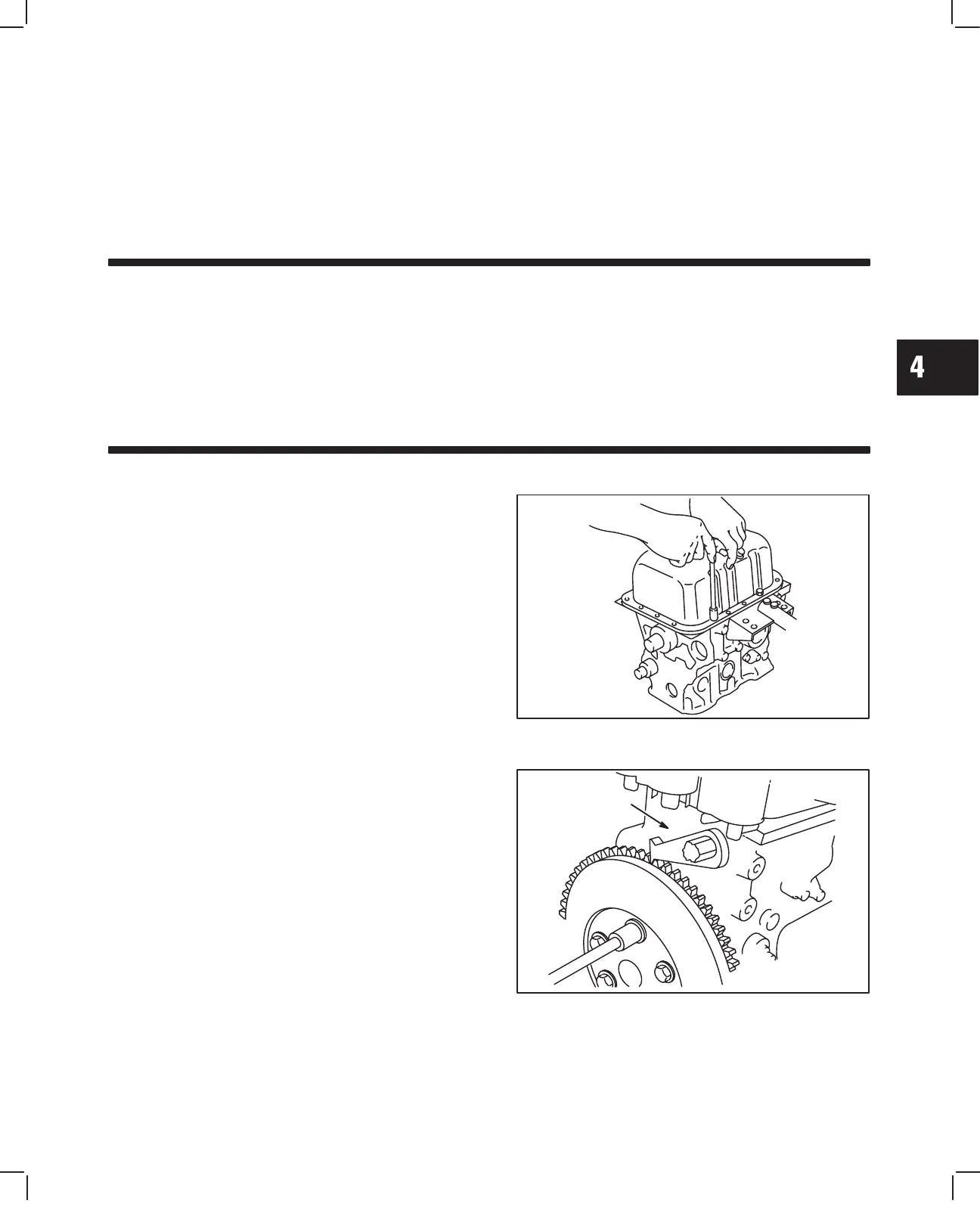

Fig. 1 – Removing Oil Pan
2. Install flywheel holder, Tool #19418
a. Remove flywheel screws and flywheel, Fig. 2.
Inspect flywheel for cracks or damage. Inspect
flywheel ring gear for worn, chipped or cracked teeth.
If ring gear is worn or damaged the flywheel must be
replaced.
Fig. 2 – Removing Flywheel
FLYWHEEL
HOLDER
